Choosing the right compressor jumper hose usually comes down to two things: does it fit your ports, and will it reach between the compressor and the next component. These two stainless steel hoses share the same 750°F and 450 PSI rating, but they differ in connection size, length, and listed price. One is a compact 1/2-inch male NPT jumper; the other is a longer 3/4-inch male NPT jumper. Here's how they stack up.
Quick verdict
Pick the 1/2" NPT x 20" hose at USD 29.69 if your compressor assembly uses 1/2-inch connections and you need a compact bridge in a tight area. Pick the 3/4" NPT x 48" hose at USD 41.39 if you need more reach and a larger male NPT connection, especially if rotating fittings on both sides will make the hookup easier.
Comparison
| Product | Connection | Length | Price | Price bar |
|---|---|---|---|---|
| 1/2" NPT Male x 20" | 1/2" Male NPT | 20 in | USD 29.69 | |
| 3/4" NPT Male x 48" | 3/4" Male NPT | 48 in | USD 41.39 |
Where each wins
The 1/2" x 20" wins for shorter runs and lower price. Its 20-inch length fits tight spaces, and it is designed for easy installation even when pipe alignment is slightly off.

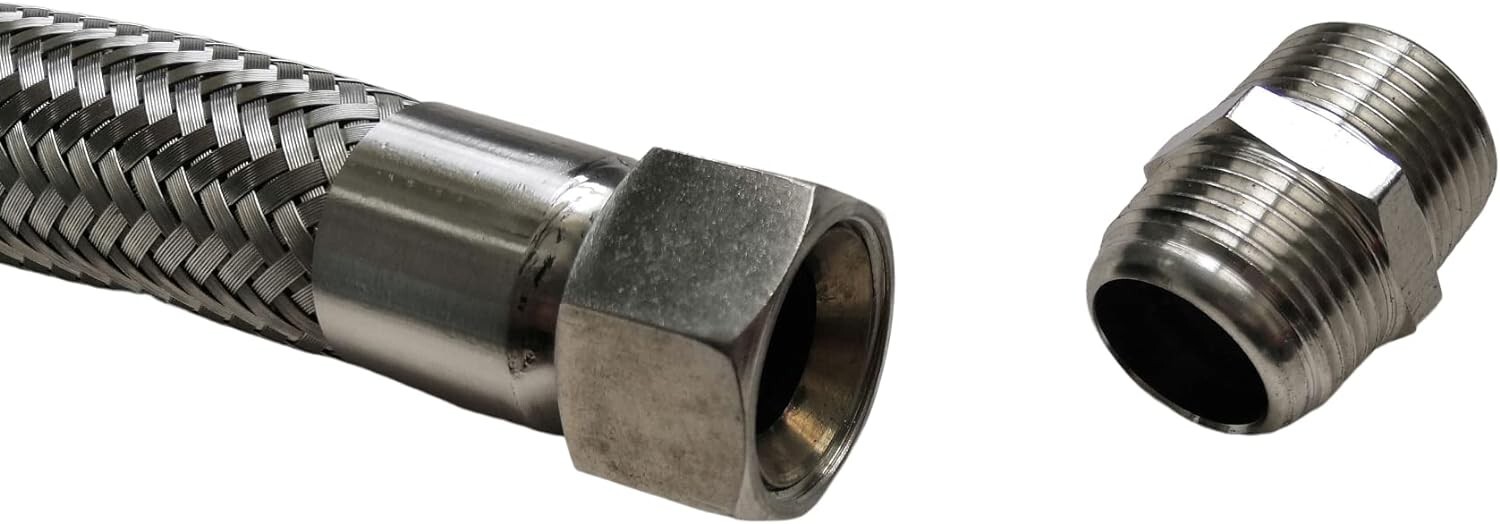

The 3/4" x 48" wins for longer reach and a larger connection. Both side fittings rotate freely, which is handy when aligning a long hose to a filter regulator or air tank.
Product notes

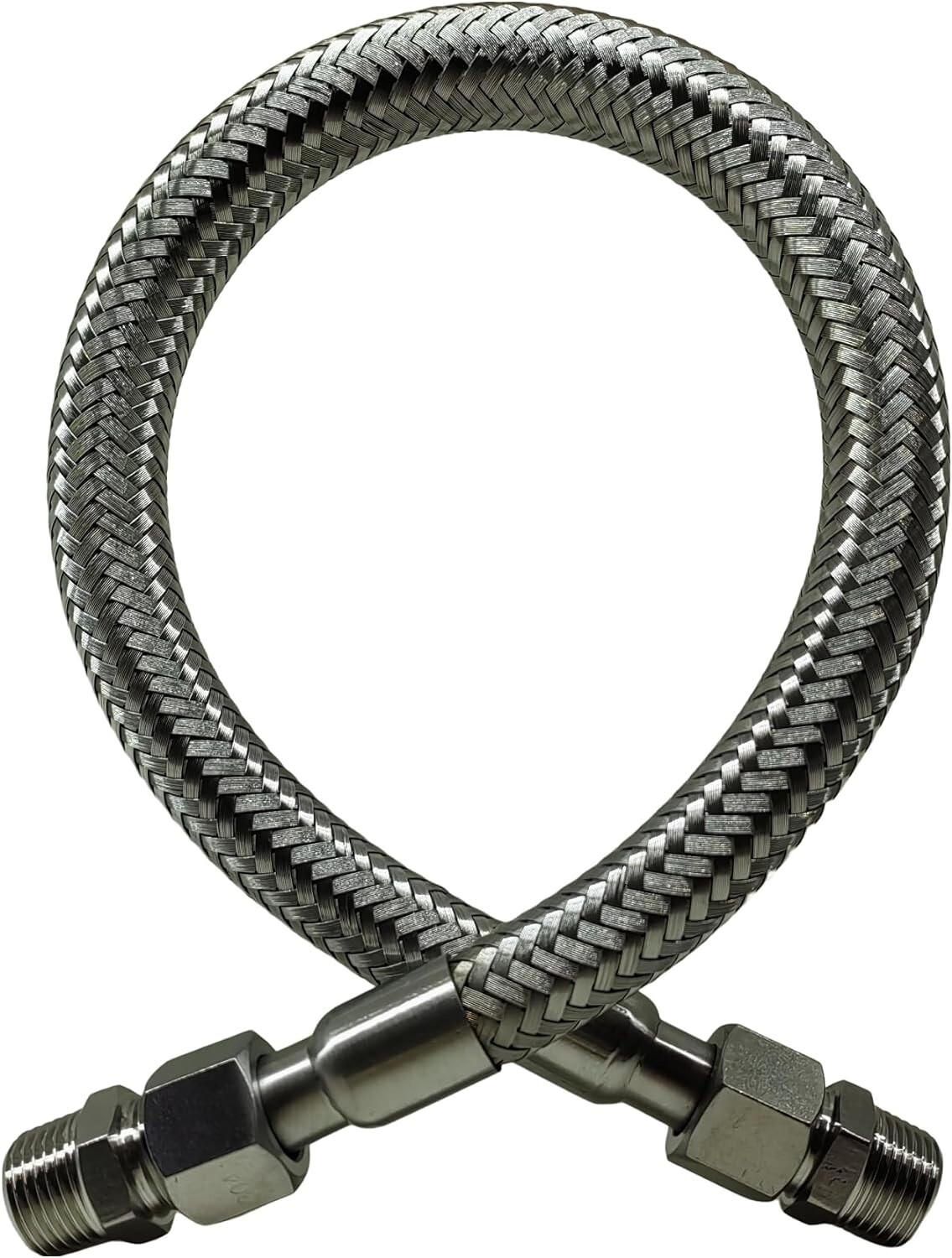

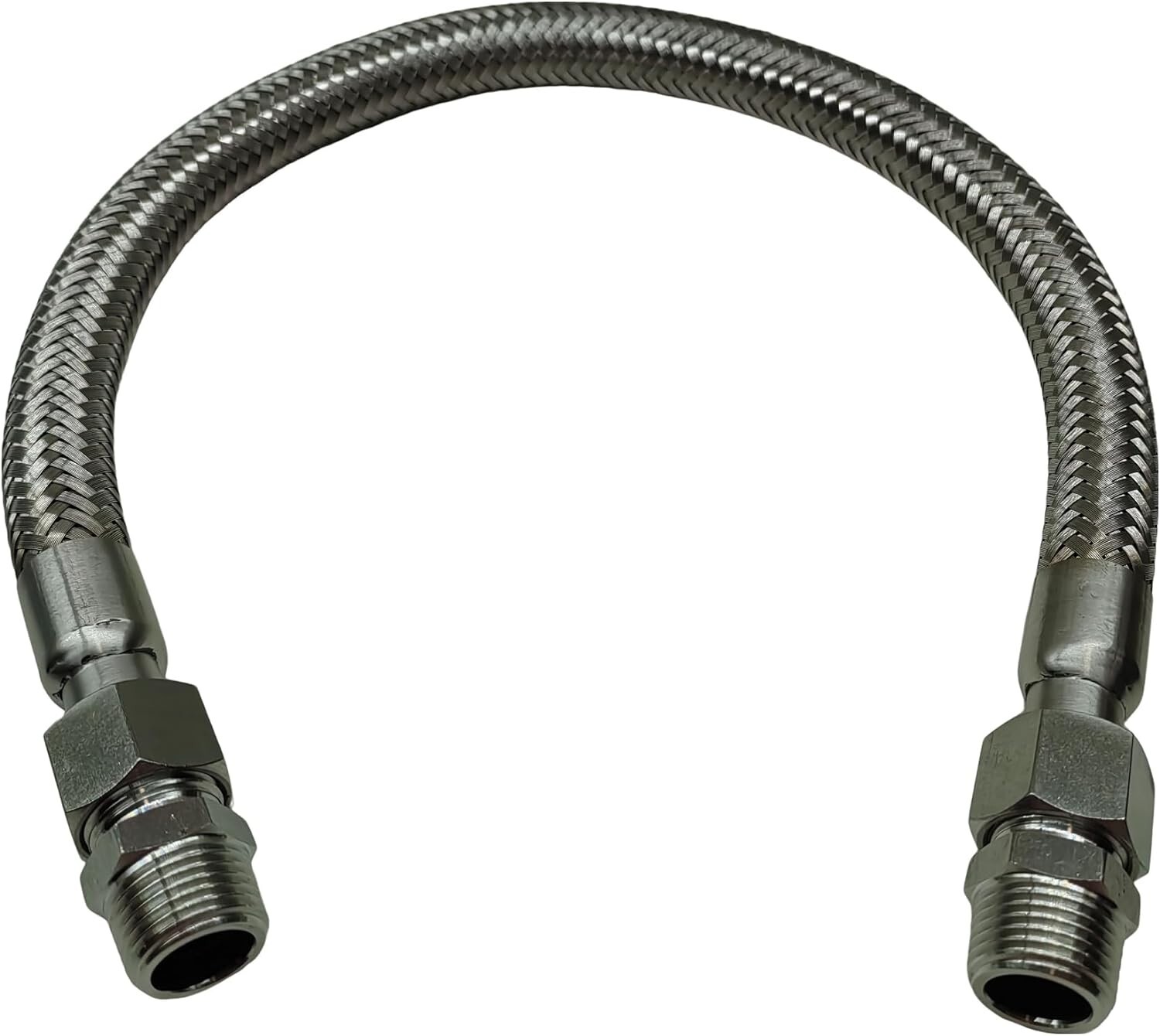

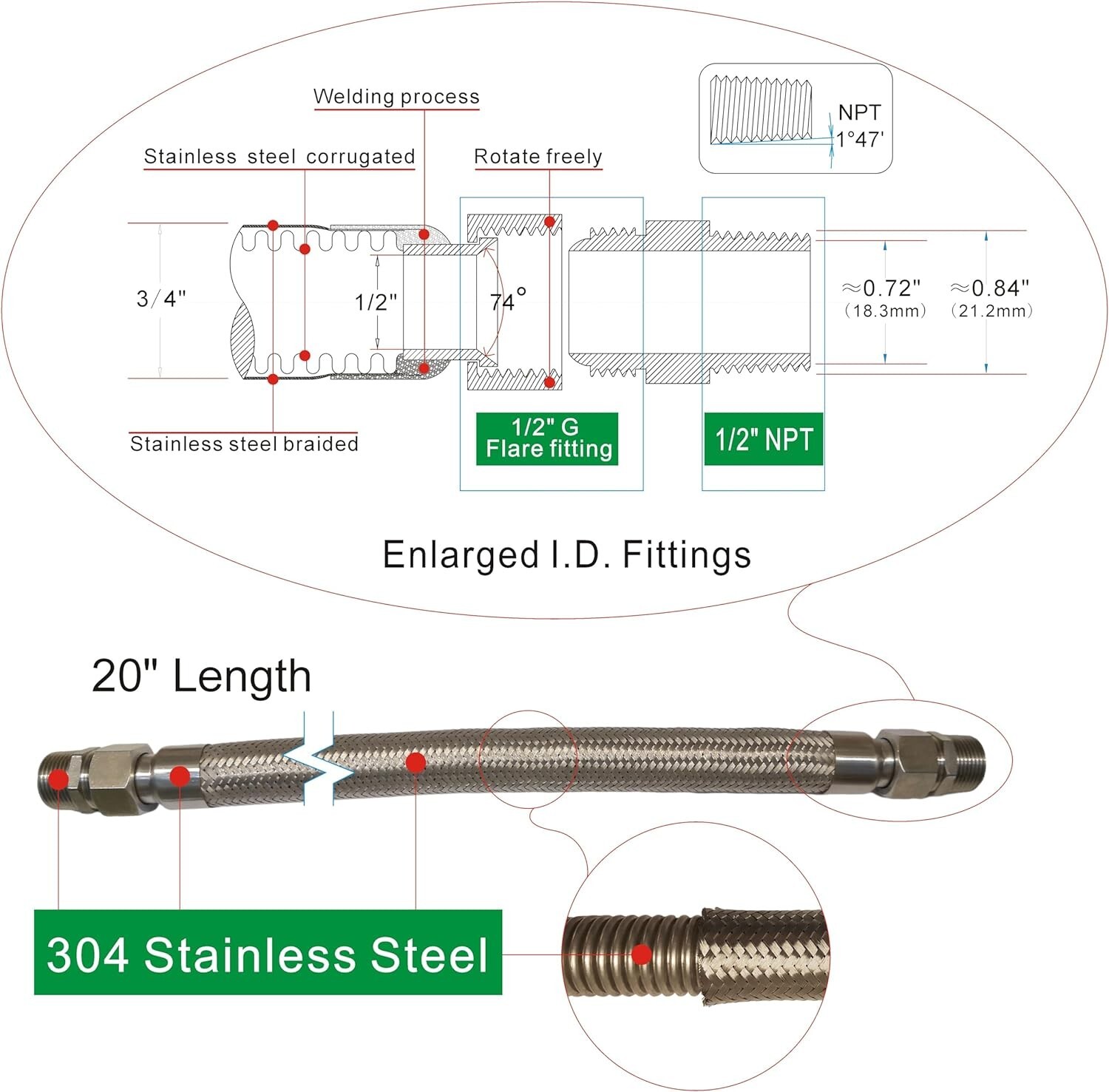

1/2" NPT Male x 20" Long 750°F 450PSI Industrial Compressor Stainless Steel Hose
As the lower-priced option in this pair, this hose keeps the upfront cost down while still giving you the stainless steel braid and corrugated core as the longer model. The 20-inch span works well when the gap between components is short. Both ends use 1/2-inch male NPT threads, and the construction is rated for 750°F and 450 PSI. It is also designed for easy installation even with pipe misalignment, so you can get it into place without over-aligning the piping. The main limitation is the short reach: if your compressor and tank are farther apart, 20 inches won't bridge the distance.

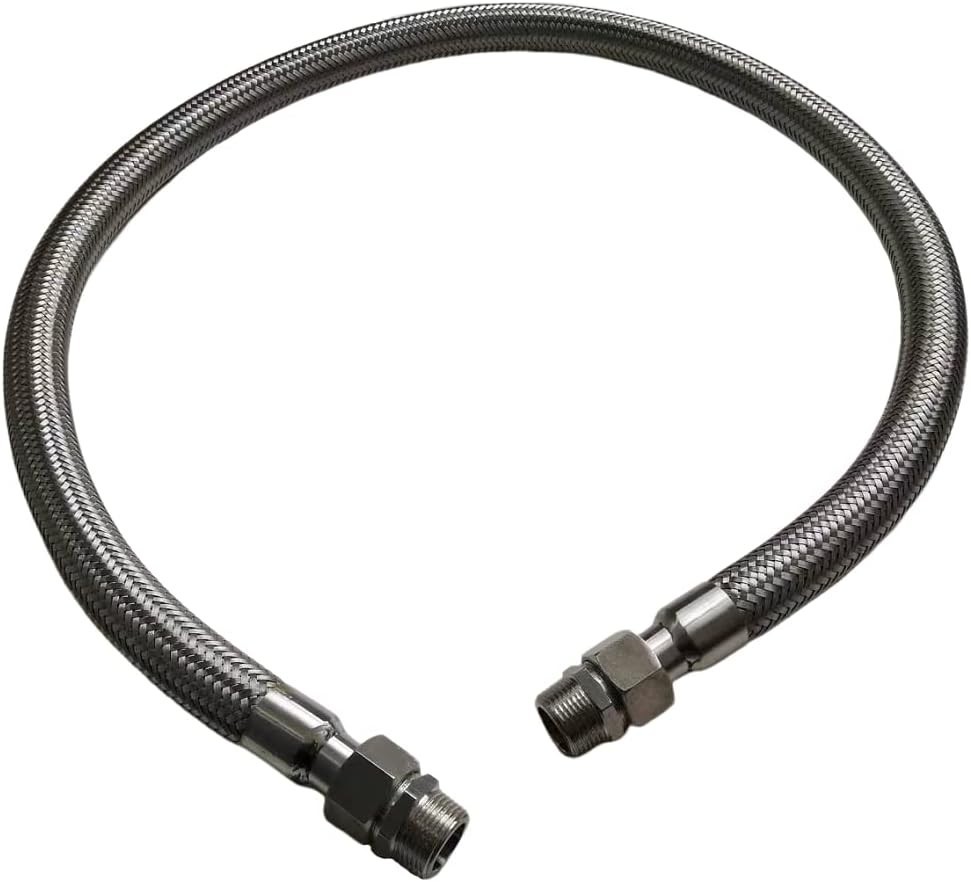

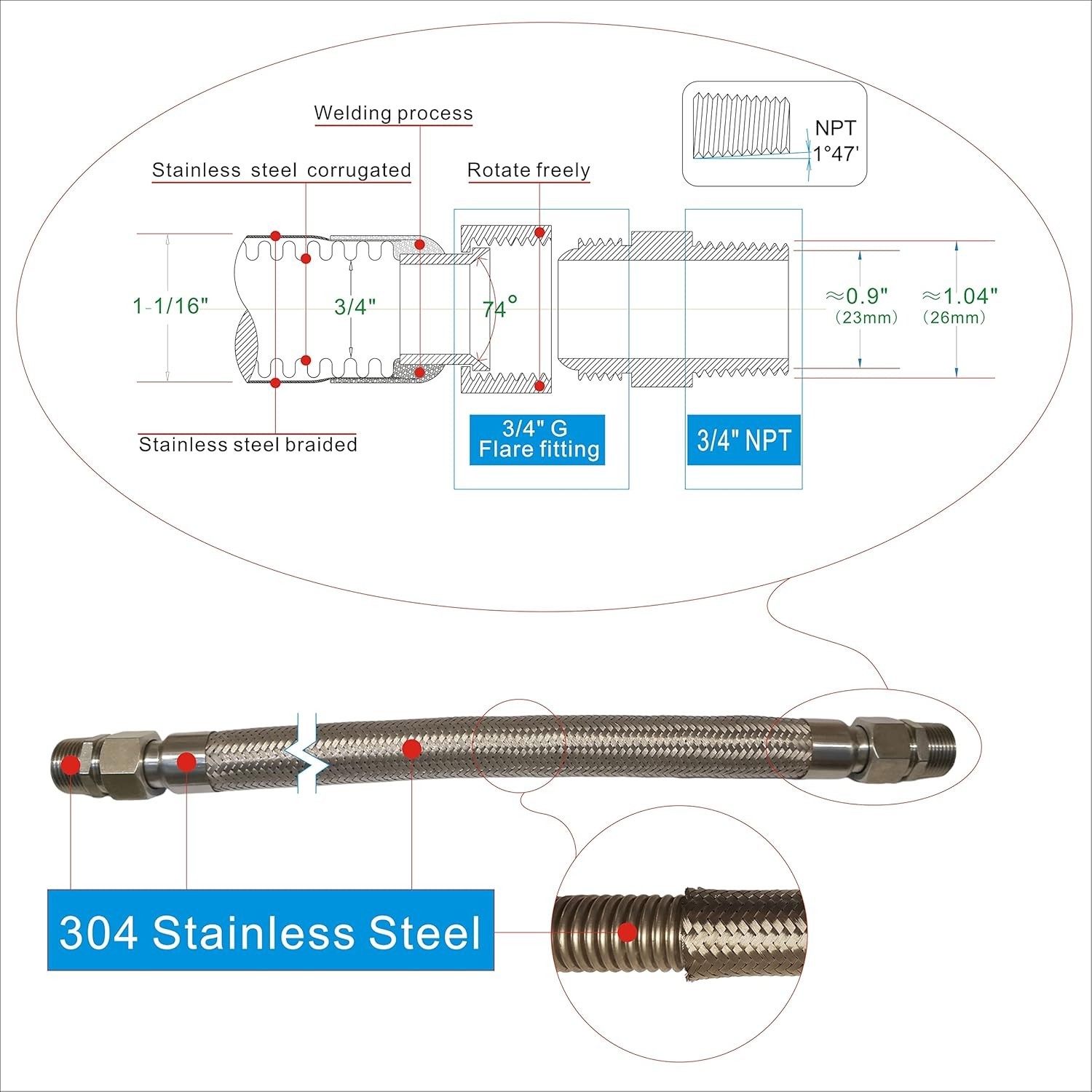

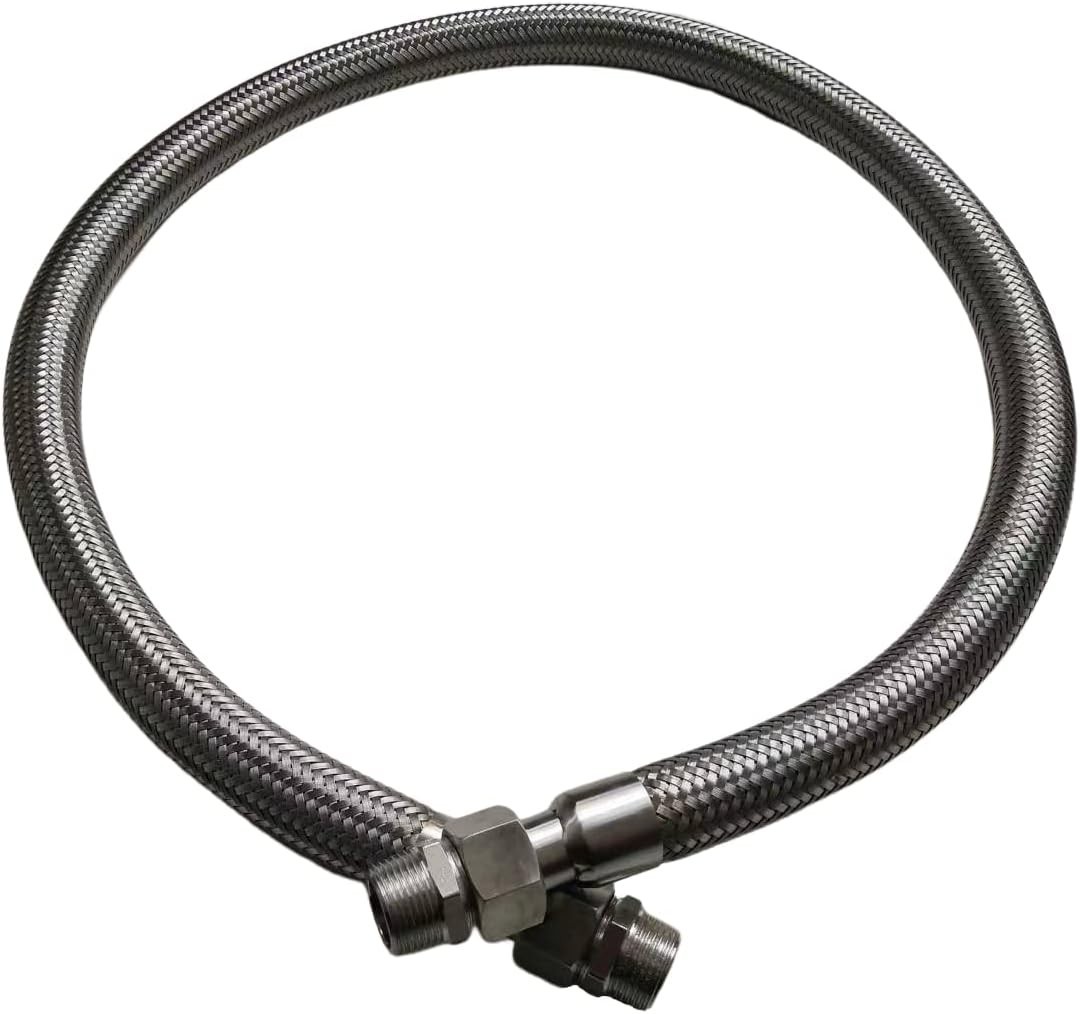

3/4" NPT Male x 48" Long 750°F 450PSI Industrial Compressor Stainless Steel Hose
The higher-priced option in this pair gives you a much longer 48-inch span and a larger 3/4-inch male NPT connection. That extra reach makes it easier to run the hose when the components aren't directly next to each other. Both side fittings rotate freely, so you don't have to twist the whole hose to get the ends aligned. The stainless steel braid and corrugated core match the shorter hose in construction. The trade-off is the footprint: 48 inches of steel hose is more to manage and store, and the higher price is easier to justify when you actually need the extra distance and connection size.
Final choice by use case
Choose the 1/2" x 20" when the distance between your compressor and the next fitting is short and you want to keep the price as low as possible. Choose the 3/4" x 48" when you need to cross a wider gap or your compressor hardware uses a 3/4-inch connection. Both hoses share the same stainless steel build and 750°F/450 PSI rating, so the decision comes down to connection size, reach, and how much you want to spend.
