When you're putting together a hydraulic setup, the big choice isn't always about which brand to pick-it's about which component to buy first. Do you invest in the muscle that does the pushing and pulling, or the heart that supplies the pressure? That's the decision in front of you with the 2.5x6 Hydraulic Cylinder and the 3450RPM Single Phase Hydraulic Power Unit. Each serves a different step in the hydraulic workflow, and the right starting point depends on what your shop or garage already has on hand.
Quick Verdict: If you already own a pump or power source, the 2.5x6 cylinder is the straightforward, lower-cost addition that gets you moving loads right away. If you're starting from nothing, the 3450RPM power unit is the more foundational purchase because it generates the pressure that any hydraulic actuator needs. You'll eventually want both, but this is about the smartest first move.
Side-by-Side Comparison
| Feature | 2.5x6 Hydraulic Cylinder | 3450RPM Hydraulic Power Unit |
|---|---|---|
| Price | $126.34 | $221.83 |
| Primary function | Double-acting tie-rod cylinder | Single-acting power unit |
| Max pressure | 2500 PSI | 2950 PSI |
| Power source | Driven by external hydraulic fluid | 2 HP, 220V AC electric motor |
| Cylinder action | Double-acting | Single-acting (gravity return) |
Where the 2.5x6 Cylinder Wins This cylinder is the workhorse for linear motion. It offers a 2.5-inch bore with a 6-inch stroke. That combination yields a column load rating of 12,270 lbs, with a 1.125-inch rod and a 1-inch pin hole. If you need to lift, press, or reposition something that travels roughly 6 inches, this cylinder gives you repeatable force without tying up a lot of room in your shop.
Where the 3450RPM Power Unit Wins The power unit is the foundation of a complete hydraulic system. It's fully assembled, so you're not spending a day plumbing parts together. The wiring is simple, and extra connectors are included for replacements. This unit is specifically designed for gravity-return applications, which makes it a natural fit for lifts and presses. It also carries a one-year manufacturer warranty, giving you coverage on the most expensive component of your hydraulic build.
Product Notes
2.5x6 Hydraulic Cylinder (2.5" Bore, 6" Stroke)
If your priority is turning hydraulic pressure into precise, repeatable movement, this AMRAP Co. cylinder is the piece to grab. Its double-acting design is the key advantage: fluid on either side of the piston lets you push and pull under power, which is exactly what you need for tasks like clamping, bending, or feeding a press. The tie-rod construction and 2500 PSI rating make it a solid workhorse for a wide range of shop-built machines. The limitation is that it only does the moving-it can't generate its own pressure. You'll need a separate pump and reservoir, and its 6-inch stroke and 1.125-inch rod are fixed dimensions, so you have to design your fixture around them. For $126.34, you're getting a dependable actuator that's ready to be wired into a hydraulic circuit you already have.

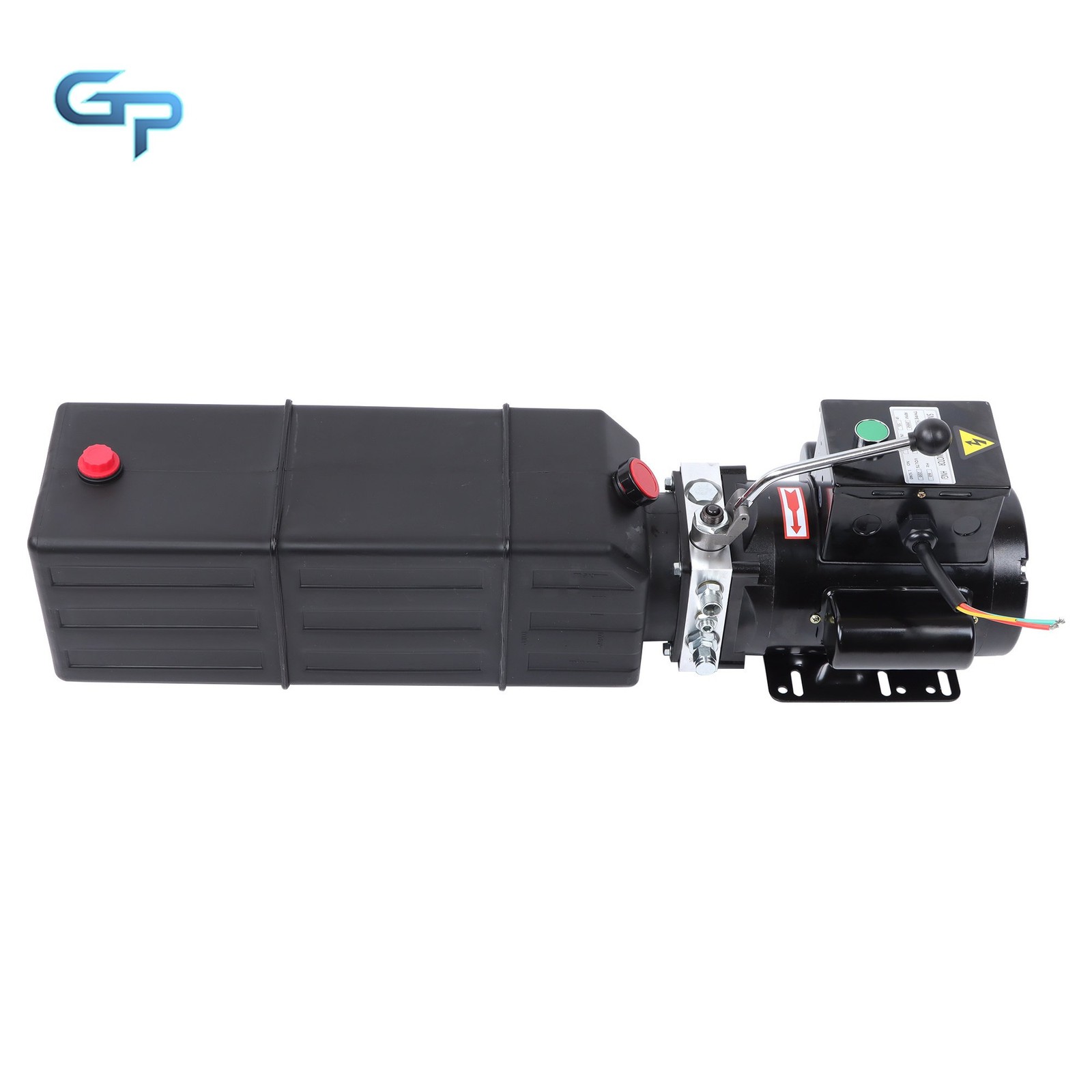

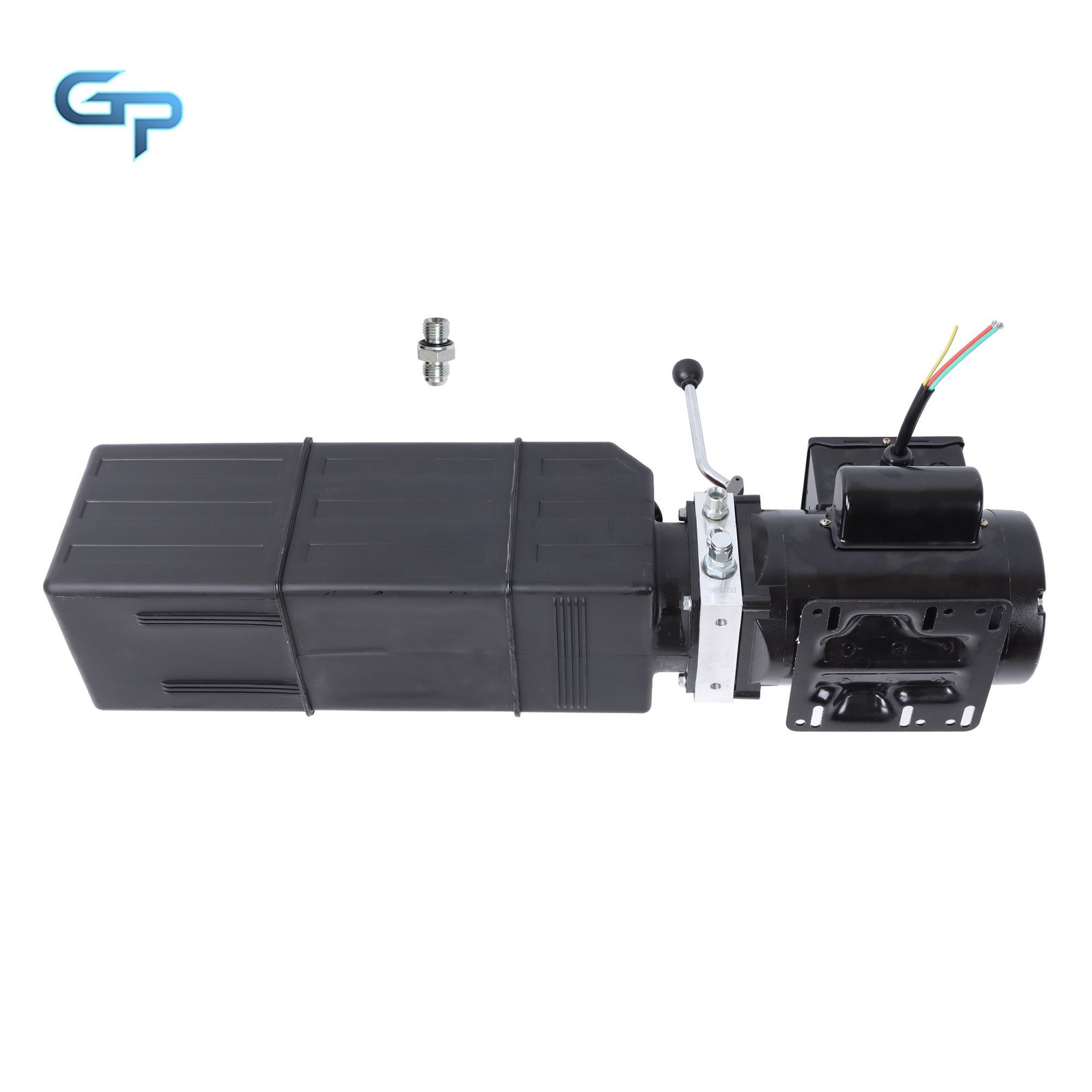

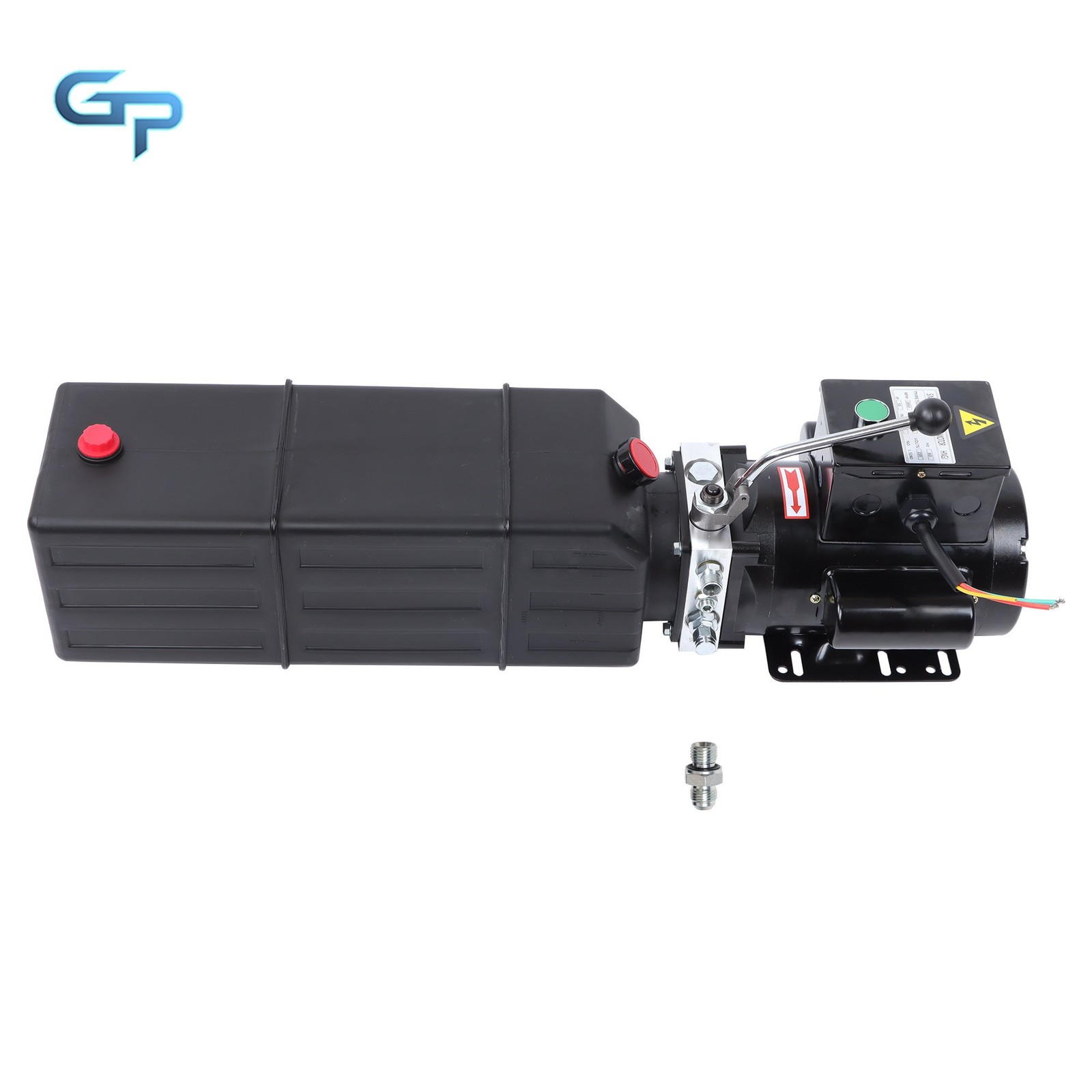

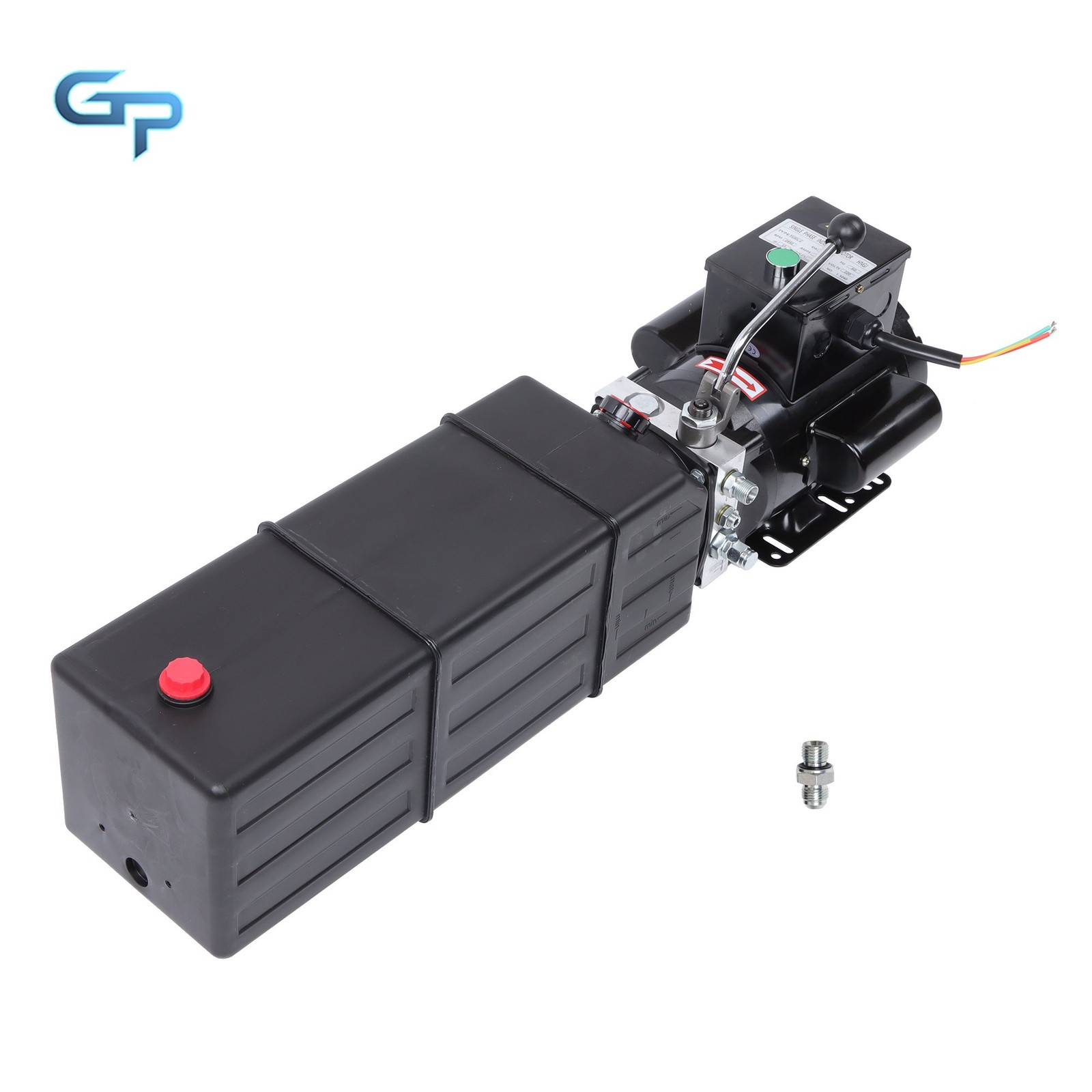

3450RPM Single Phase Hydraulic Power Unit (4 Gal, 2 HP Motor)
When the goal is to create a complete hydraulic system from scratch, this findmall power unit removes most of the guesswork. It arrives fully assembled, with a 2 HP motor, a 4-gallon reservoir, and a 2950 PSI relief setting, so you're not sourcing a tank and pump separately. The simple wiring and included instructions make it approachable, and the extra connectors are a thoughtful touch if you need to replace a fitting. That said, it's a single-acting pump with gravity return, which means it's built for applications like vehicle lifts and presses where the load naturally comes back down on its own. If your project needs powered retraction, this unit won't do that by itself. The $221.83 price is higher, but you're paying for a full power source that can feed multiple hydraulic devices.
Final Choice by Use Case Choose the 2.5x6 cylinder if you already have a hydraulic pump, or if your immediate need is a linear actuator to move a load in a straight line. Spring for the 3450RPM power unit when you're starting a new hydraulic setup from zero-especially if you're equipping a vehicle lift or a press that relies on gravity to lower the ram. Buy the cylinder when you need movement; buy the power unit when you need to make the whole system work.
