Two very different industrial motors are at opposite ends of the price spectrum. One is a complete package: an industrial motor paired with a speed reducer. The other is a single-purpose motor designed for air compressor duty. The question is which one fits your setup, and the answer depends on how you plan to use it.
Quick verdict: For a low-speed right-angle output from a matched motor and reducer, the Baldor-Reliance VEM3558T + Dodge Quantis is the more complete solution. For a direct air compressor motor replacement at a lower price, the GARVEE 5HP SPL is the more practical pick.
Here's how the two compare:
| Feature | Baldor-Reliance VEM3558T + Dodge Quantis | GARVEE 5HP SPL Air Compressor Motor |
|---|---|---|
| Price | $700.00 | $128.79 |
| Phase | Three-phase | Single-phase |
| Base speed | 1725 RPM | 3450 RPM |
| Voltage | 208-230/460V | 230V |
| Enclosure | TEFC | ODP |
| Condition | New - Open box | New |
| Includes | Dodge Quantis reducer | Motor only |
Where each product wins
The Baldor-Reliance setup wins if you need a ready-to-run gearmotor combination with a right-angle output. The Dodge Quantis reducer's 5.65:1 ratio and 1019 in-lbs max torque are the standout numbers here. The motor's class F insulation and NEMA C-Face design also make it easy to integrate into existing industrial equipment.
The GARVEE wins on simplicity and price. Its reversible rotation and direct-replacement design make it a quick, no-fuss option for an air compressor motor.
Product notes

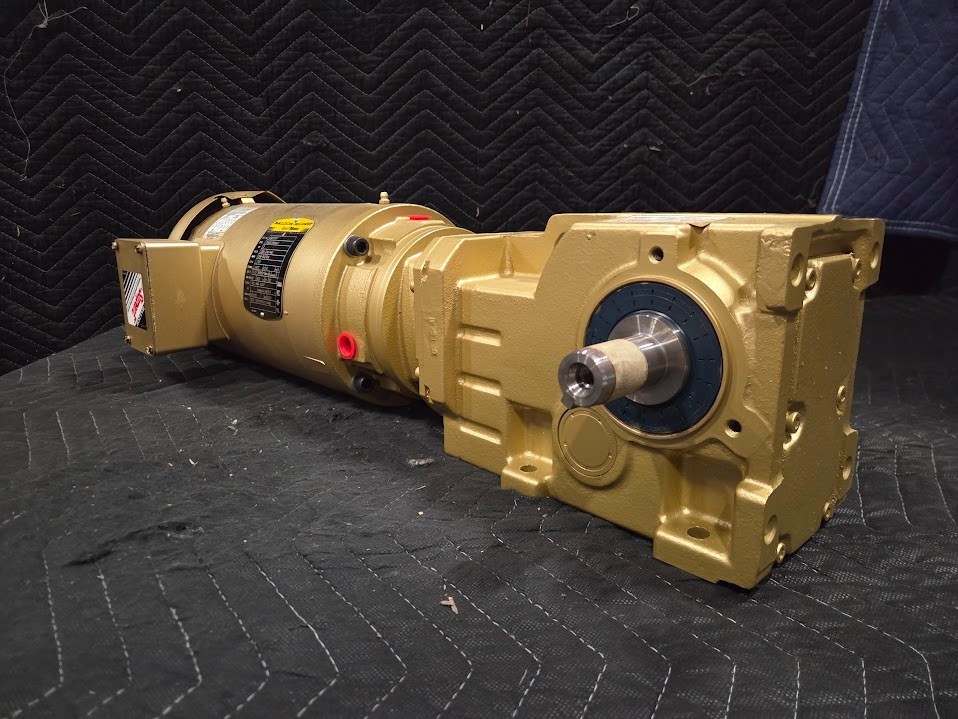

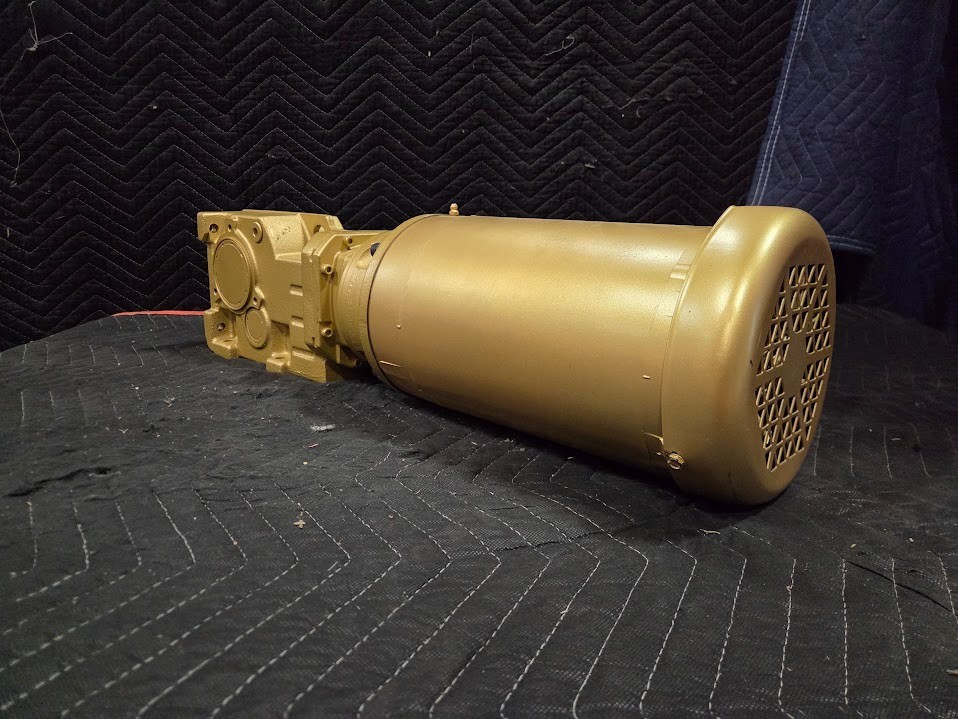

Baldor-Reliance VEM3558T + Dodge Quantis

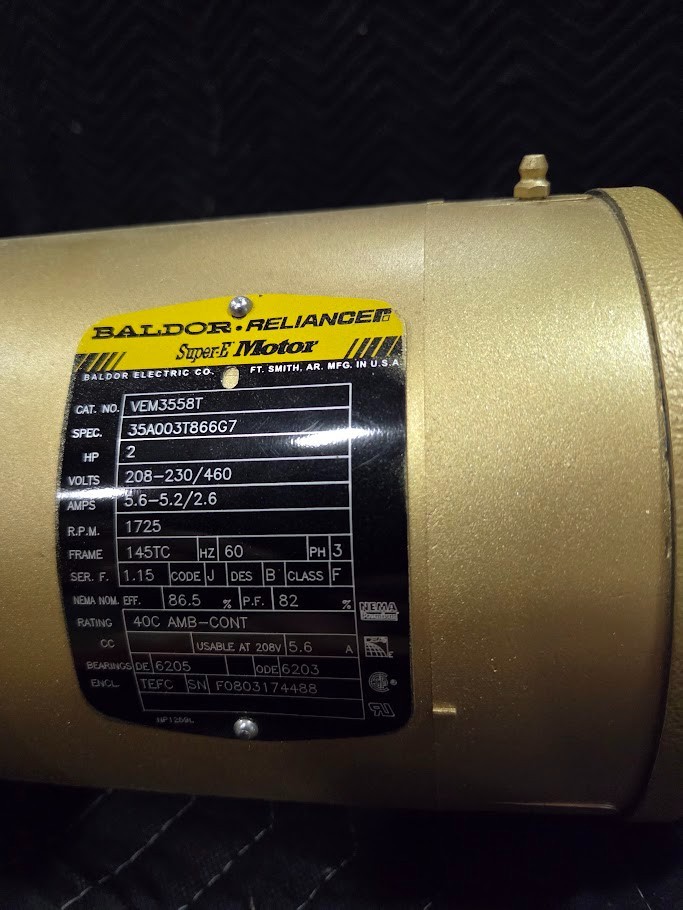

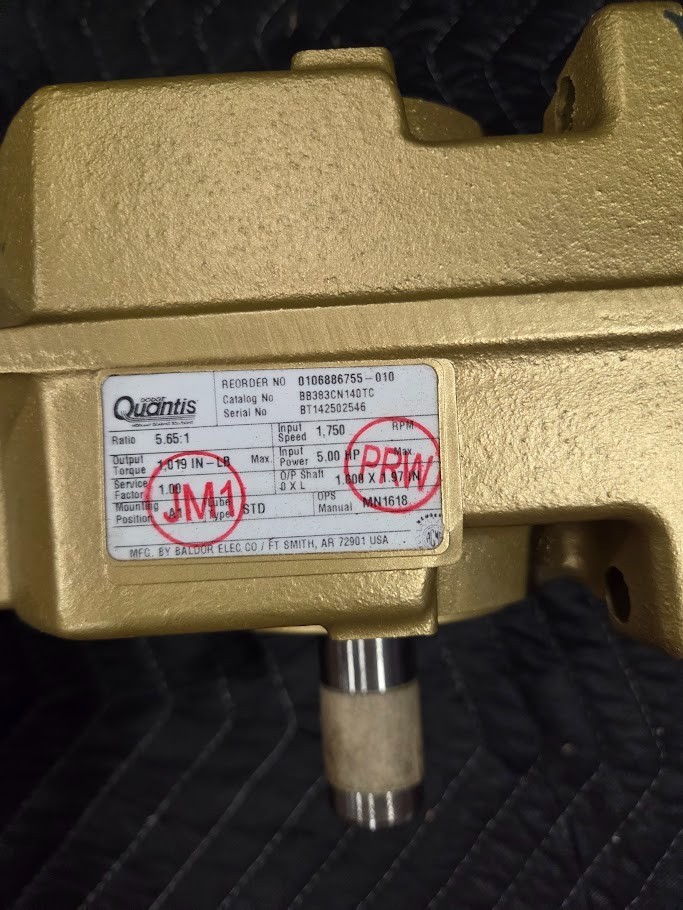

This setup brings together a Super-E motor and a right-angle speed reducer. The motor's class F insulation and NEMA C-Face design allow it to be bolted to standard industrial equipment. The Dodge Quantis reducer provides a 5.65:1 ratio and a maximum output torque of 1019 in-lbs, meaning you get a strong, low-speed output in a compact footprint. Full-load amps are 5.6-5.2/2.6 depending on the voltage connection. The main drawback is that the motor and reducer are two separate components that need to be assembled as a unit, which adds a step to installation compared to a single-piece motor. If you need a durable, high-torque gearmotor, this combination is hard to beat.

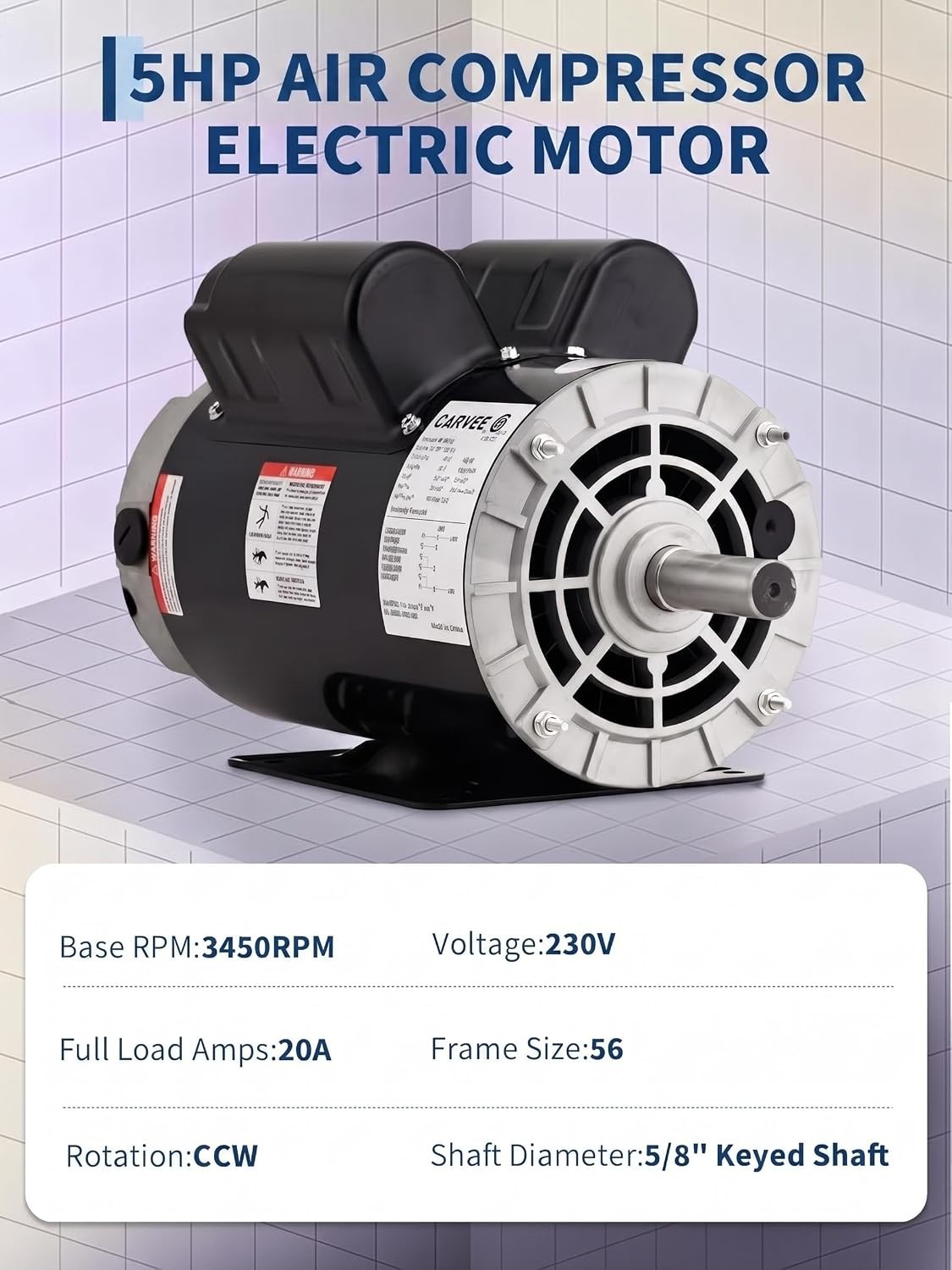

GARVEE 5HP SPL Air Compressor Electric Motor

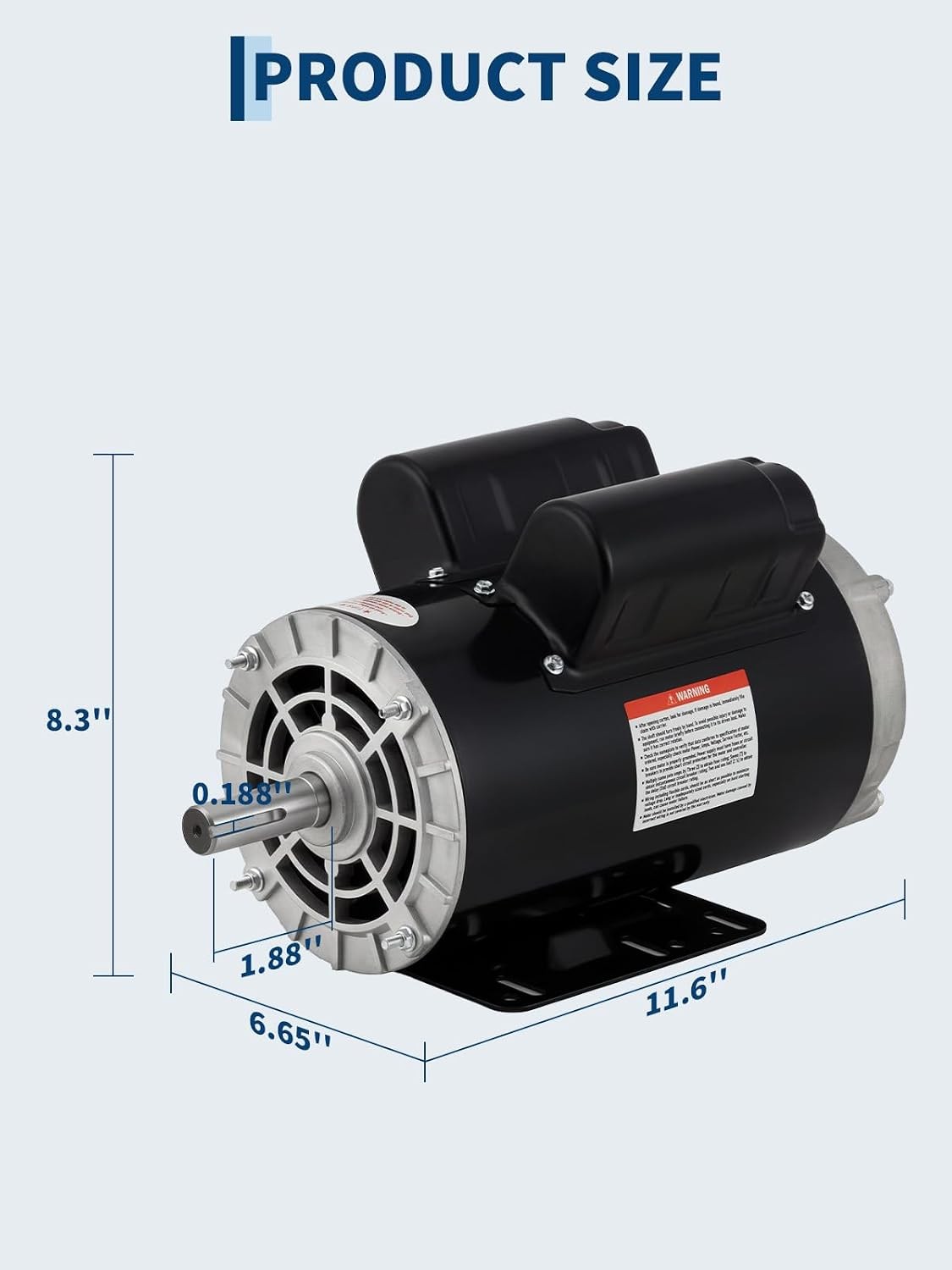

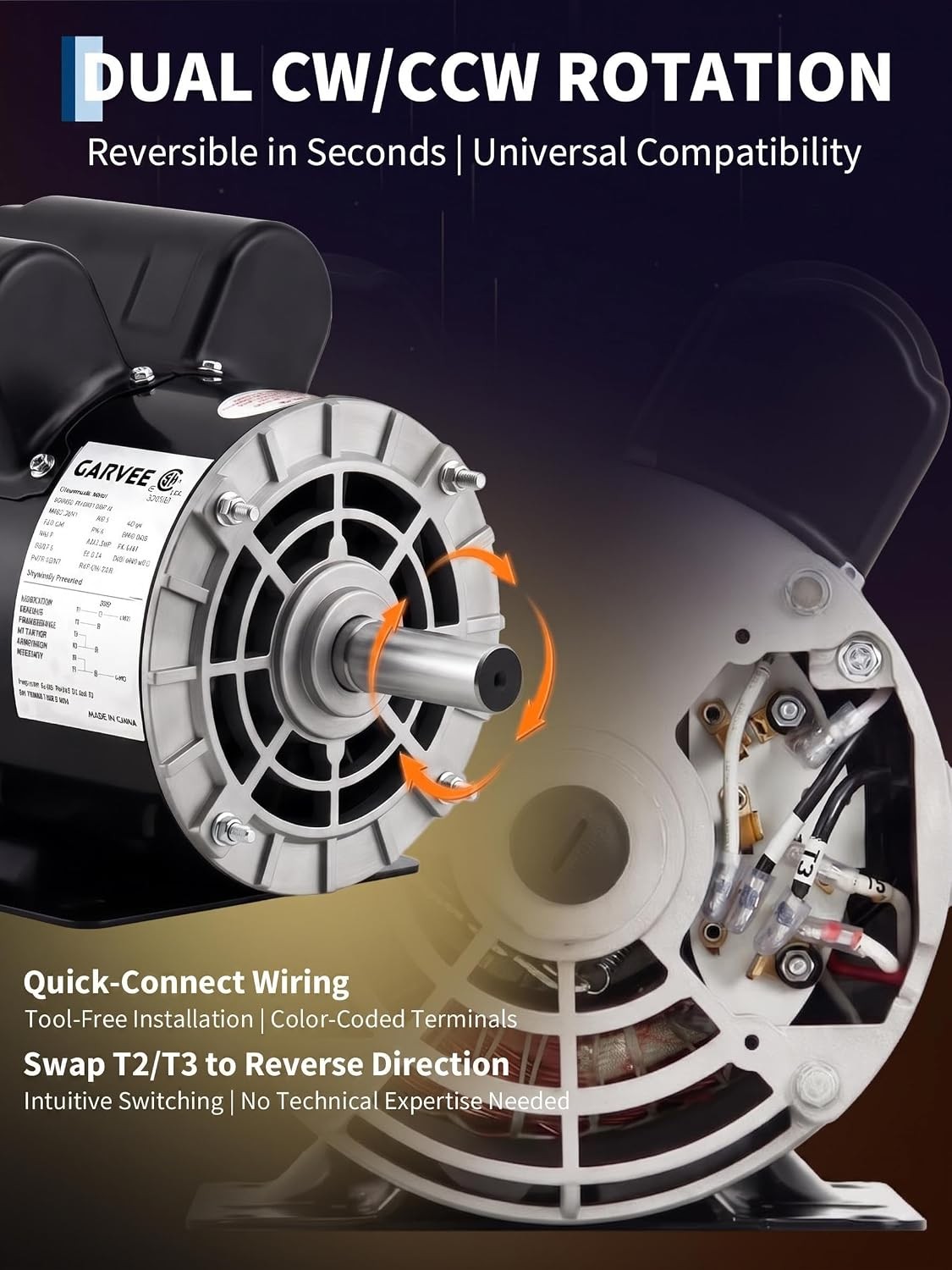

This single-phase motor is built for one job: keeping air compressors running. The 5/8" keyed shaft extends 1.88" and the 56 frame matches many compressor pumps, so it can be fitted as a direct replacement motor. The reversible CW/CCW rotation means you can orient the motor to match your pump's direction. It weighs 46.2 pounds. The downside is the open drip-proof housing, which doesn't fully seal the motor internals from dust and moisture. That's typical for air compressor motors, but it's worth noting if your compressor lives in a damp or very dusty area. For a straight replacement, this is a simple, functional option.
Final choice by use case
If your application demands a right-angle output at low speed with high torque, the Baldor-Reliance VEM3558T + Dodge Quantis is the one. It's a complete gearmotor solution for industrial setups. If you need to replace a failed motor on an air compressor, the GARVEE 5HP SPL with its 5/8" keyed shaft and 56 frame is the practical route to get back up and running.
