Quick Take
The central decision in this set of four couplers is how much flexibility you need. A rigid coupling connects two shafts with no give, which is good for precise positioning but requires close alignment. Flexible couplings use a steel body, a plum/spider element, or a jaw-and-spider assembly to absorb misalignment and reduce stress on the motor and drive. Listed prices run from $1.99 to $32.40, a $30.41 spread, so the choice is not just about cost but also about bore size, outside diameter, and whether you need fail-safe operation.
The four options break into two groups: one rigid aluminum coupler and three flexible couplers. The least expensive rigid coupler is useful for CNC machines and precision tools where stiffness matters. The flexible couplers range from a small plum-style unit for 3D printer and light CNC builds to a large steel model and a 5/8-inch jaw/spider coupler.
Listed Price Comparison
| Product | Listed Price | Bar | Design |
|---|---|---|---|
| MECCANIXITY Flexible Coupling Shaft 18mm to 22mm 51mmx44mm | $32.40 | Flexible steel | |
| Flexible Plum Coupling Shaft Coupler 5 6.35 8 10 12 mm | $6.99 | Flexible plum | |
| Rigid Coupling Aluminium Motor Shaft Coupling Coupler 1/5To2/5 Flanged | $1.99 | Rigid aluminum | |
| 5/8 x 5/8 Flexible Jaw Spider Shaft Coupling CNC Stepper Motor Coupler | $13.99 | Flexible jaw/spider |
Decision Matrix
- $1.99 TOSEASTARS rigid aluminum coupler: Go with this when you need a stiff, low-cost connection and can keep shafts closely aligned.
- $6.99 Zyltech flexible plum coupler: Suited to CNC and RepRap 3D printer builds with bore sizes from 5mm to 12mm and a need for misalignment tolerance.
- $13.99 CNC.BZ jaw/spider coupler: A natural fit when both shafts are 5/8-inch and you want the fail-safe interlock plus vibration damping.
- $32.40 MECCANIXITY flexible steel coupler: Choose this for larger 18mm to 22mm bores and a strong 45# steel body in a 51mm x 44mm package.
Product Notes

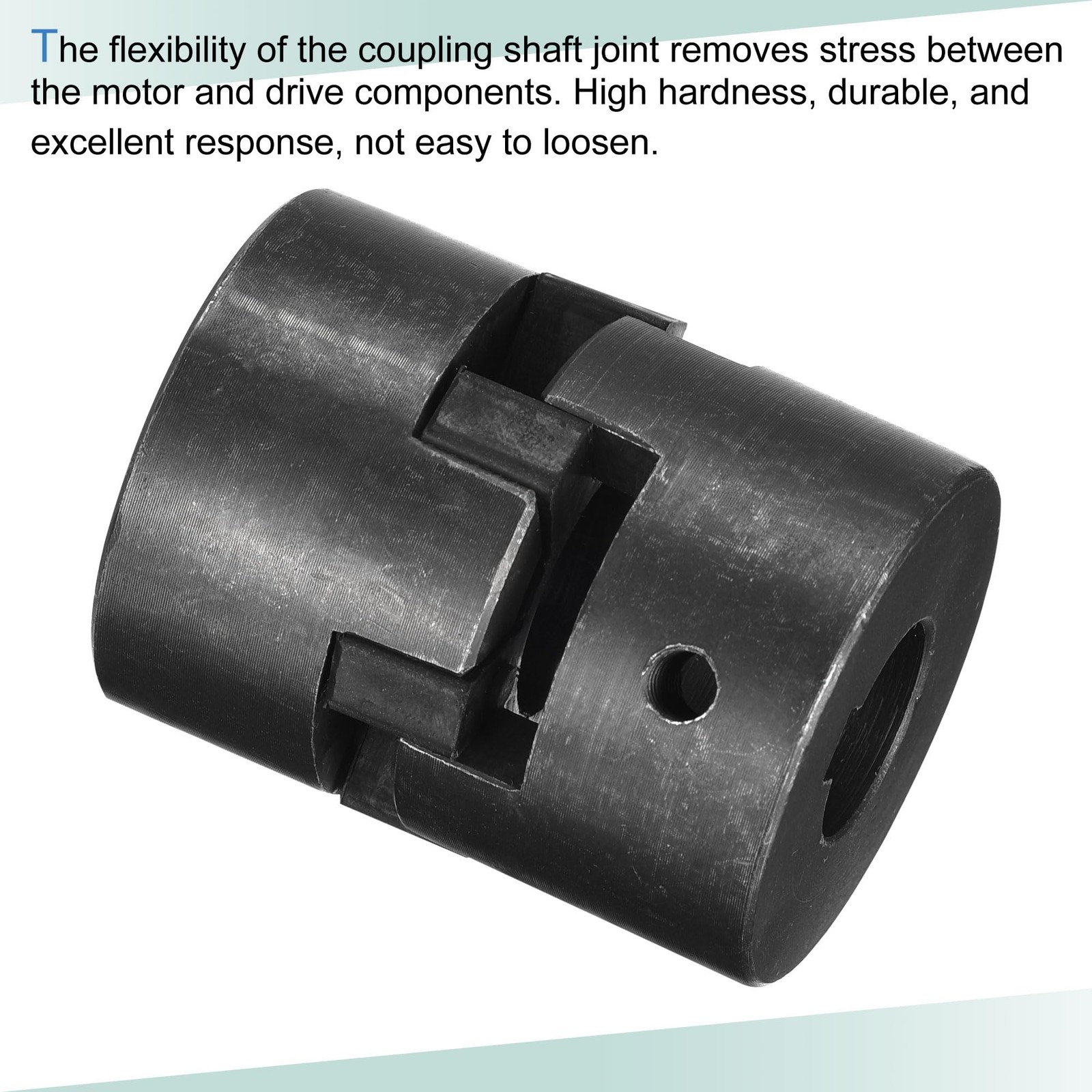

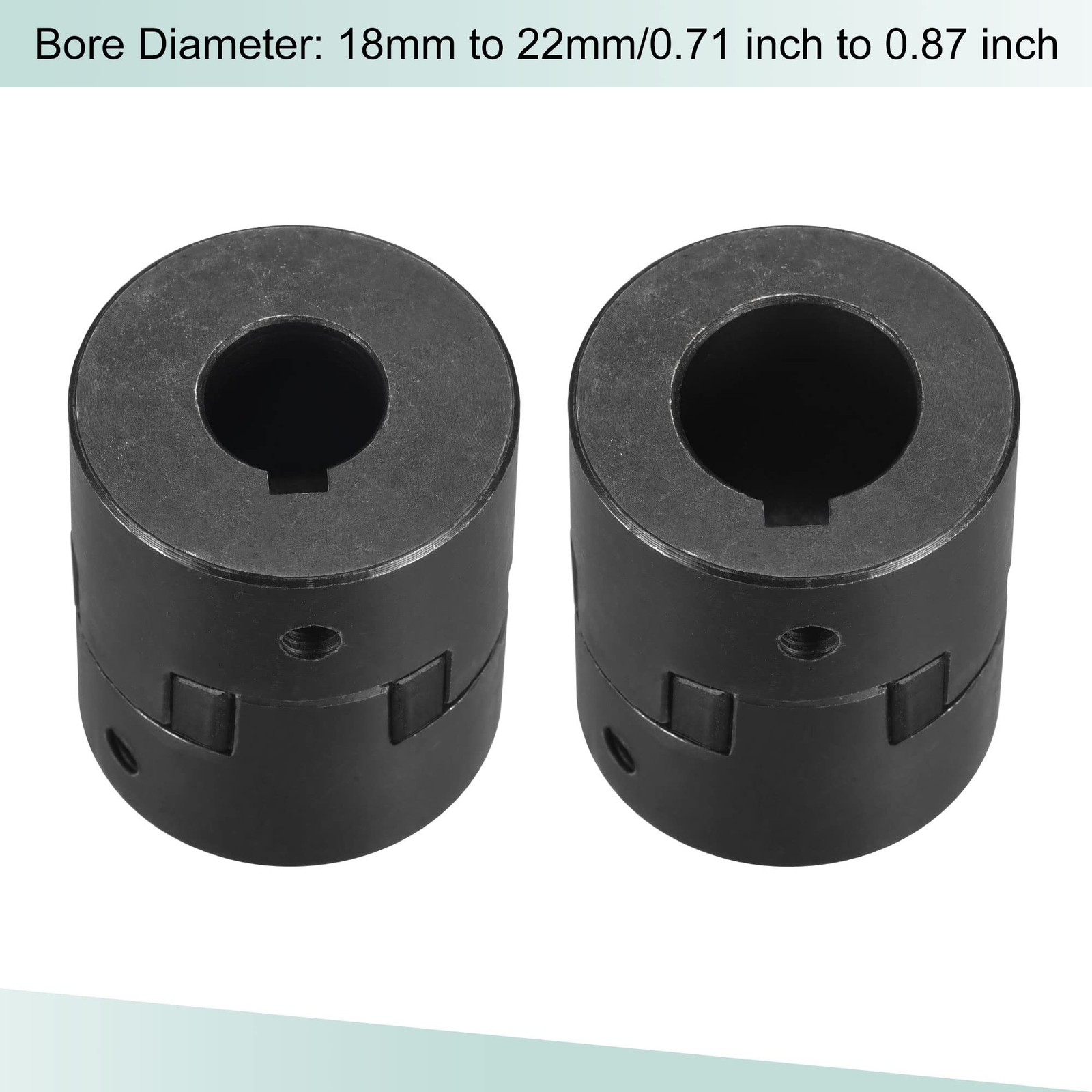

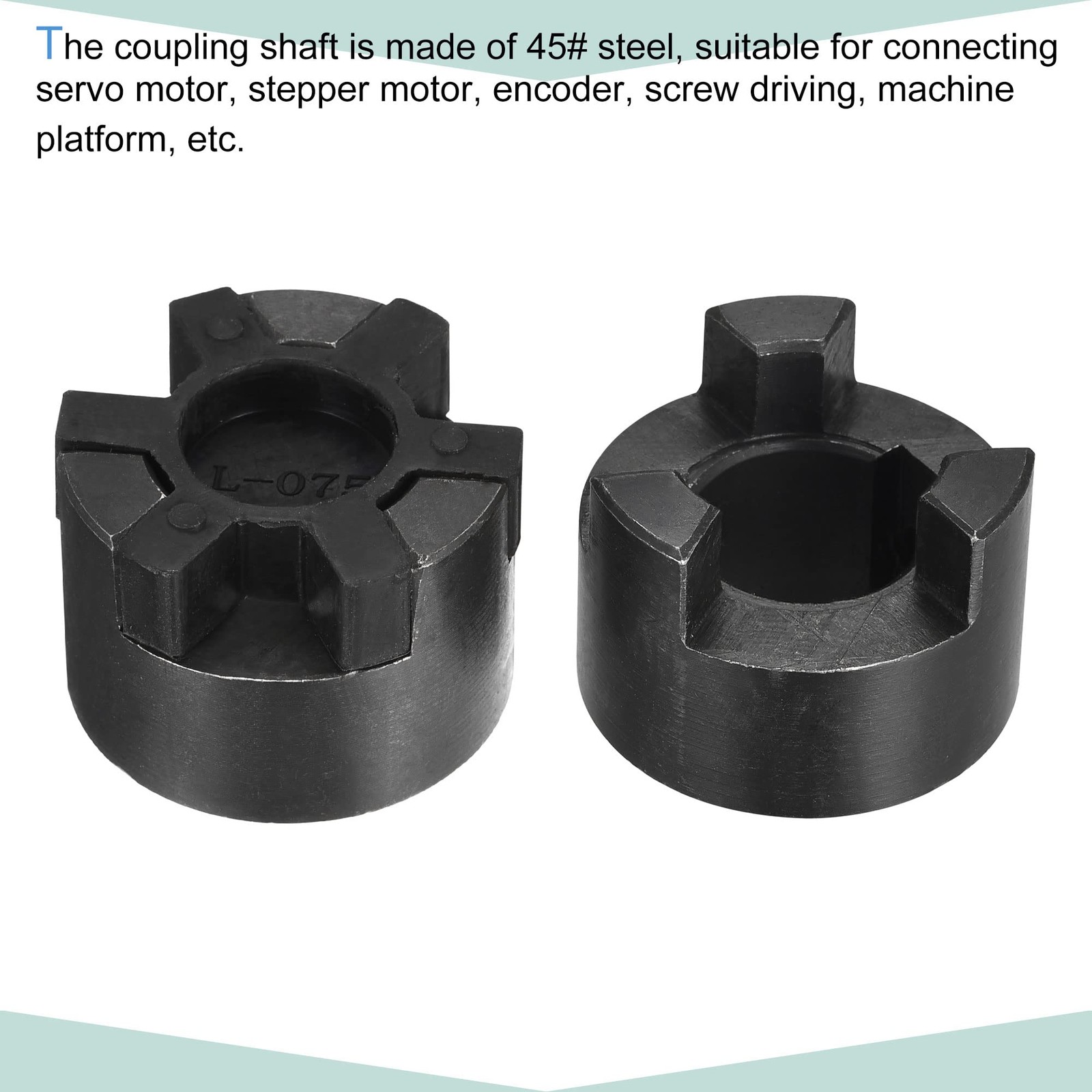

MECCANIXITY Flexible Coupling Shaft 18mm to 22mm 51mmx44mm Coupler Joint | Motor

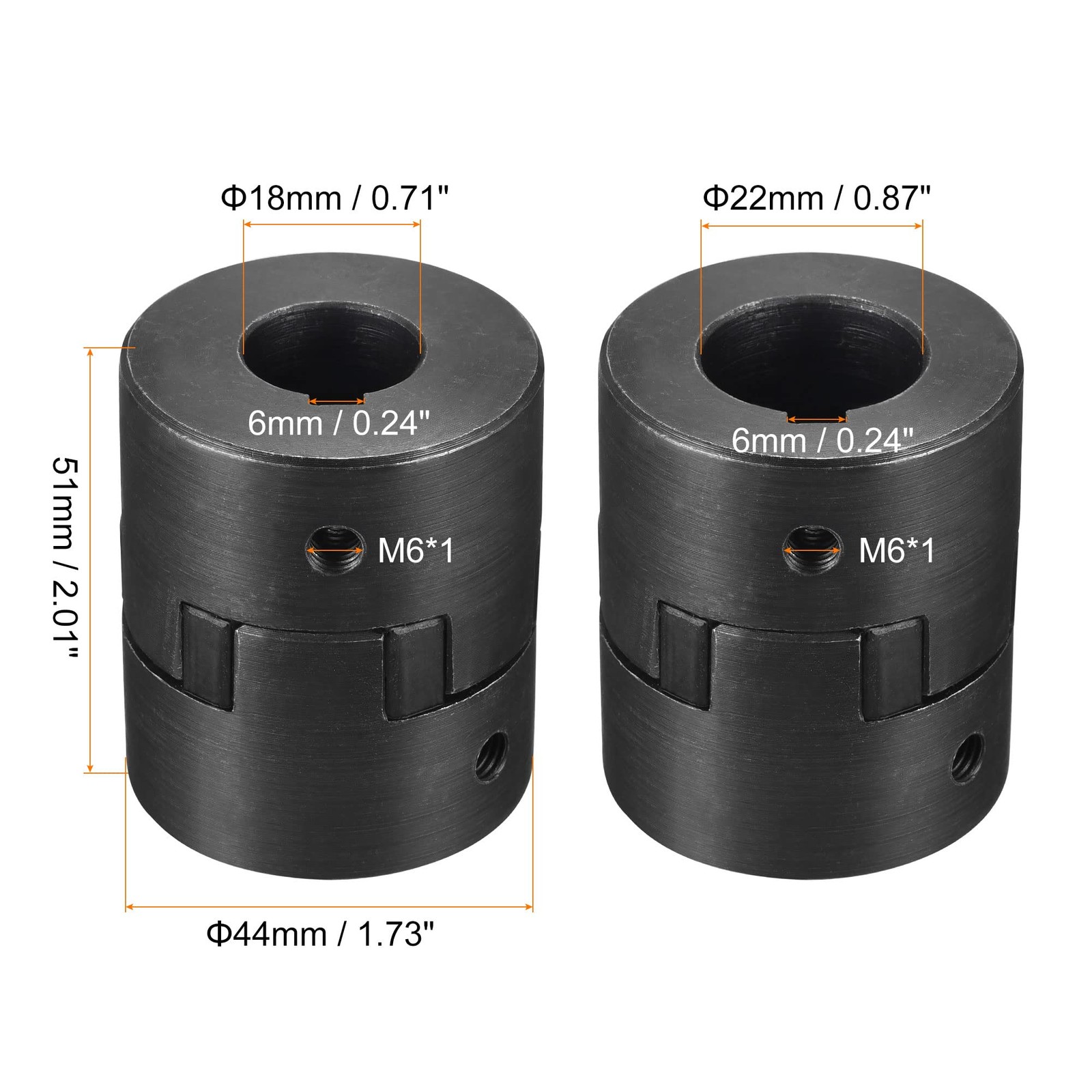

This flexible steel coupling is the largest and most expensive of the four, listed at $32.40. Its 45# steel construction and black finish suit applications where you need a strong, durable connection between a servo or stepper motor and an encoder, lead screw, or machine platform. The flexible design removes stress between motor and drive components, and the bore diameter range of 18mm to 22mm makes it a match for larger shafts. The outside diameter is 44mm and overall length is 51mm, with a 6mm slot width and M6*1 thread. The stated tolerance for manual measurement is ±0.1 inch, so confirm your shaft dimensions against the bore range. The size and price put it at the heavier end of this group.

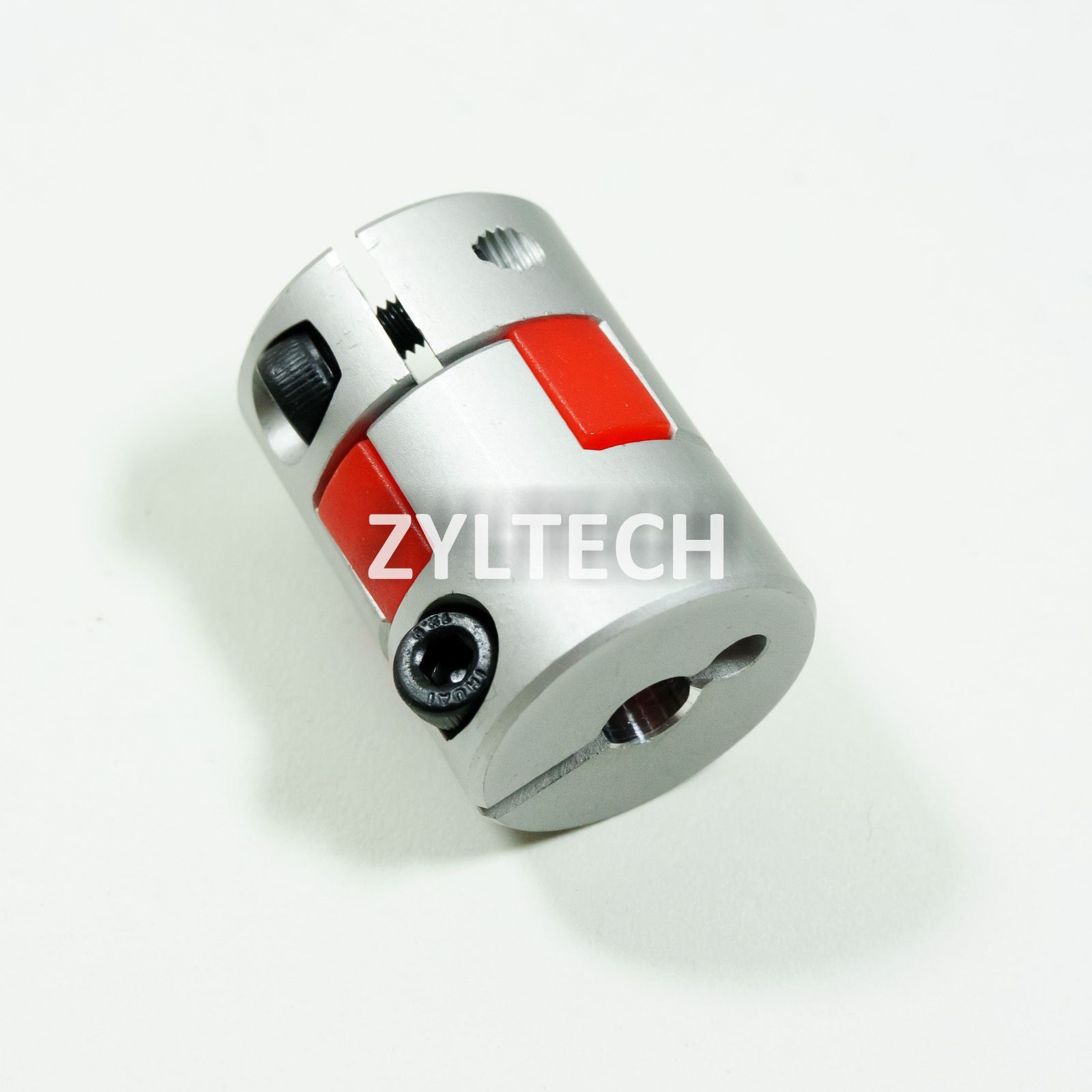

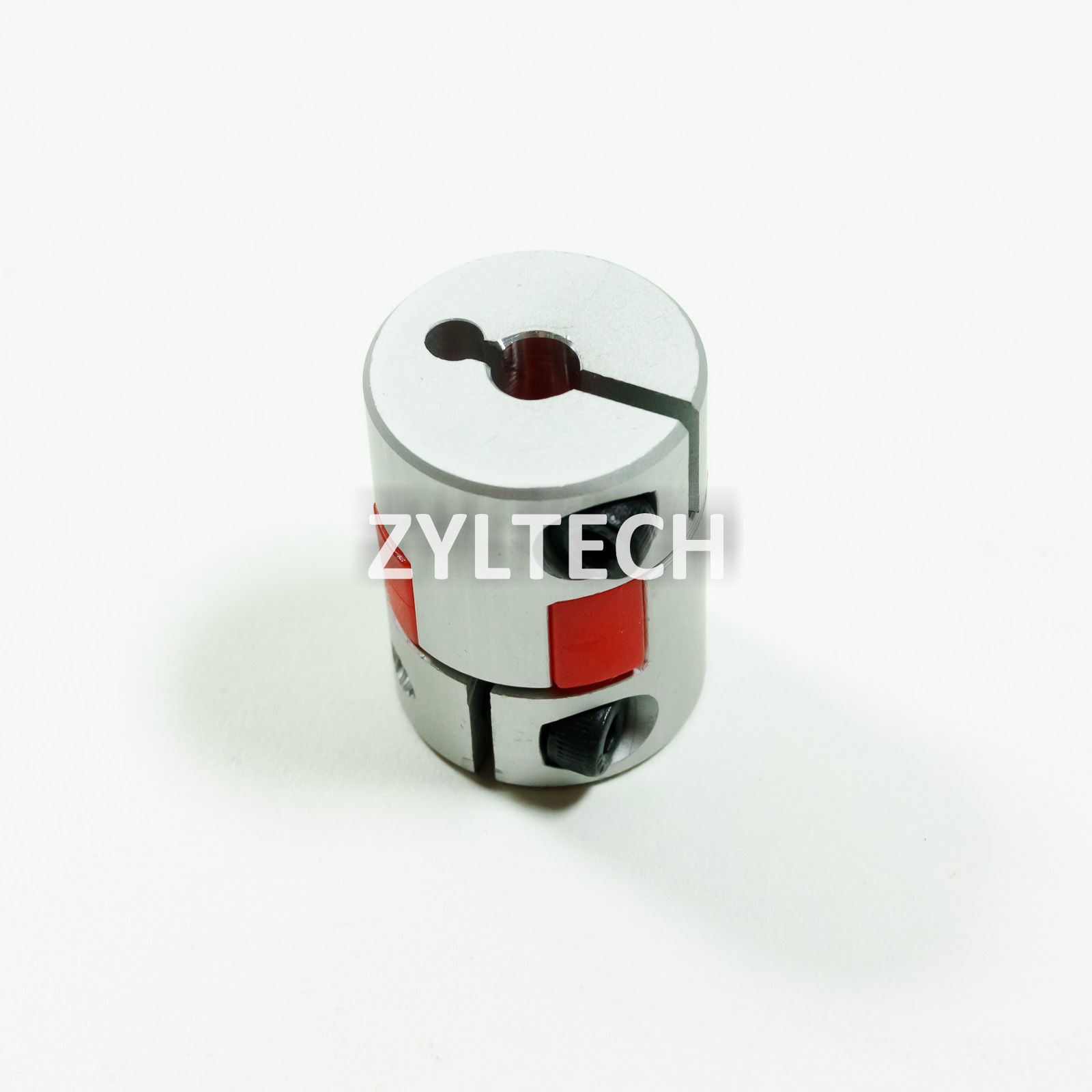

Flexible Plum Coupling Shaft Coupler 5 6.35 8 10 12 mm CNC Reprap 3D printer

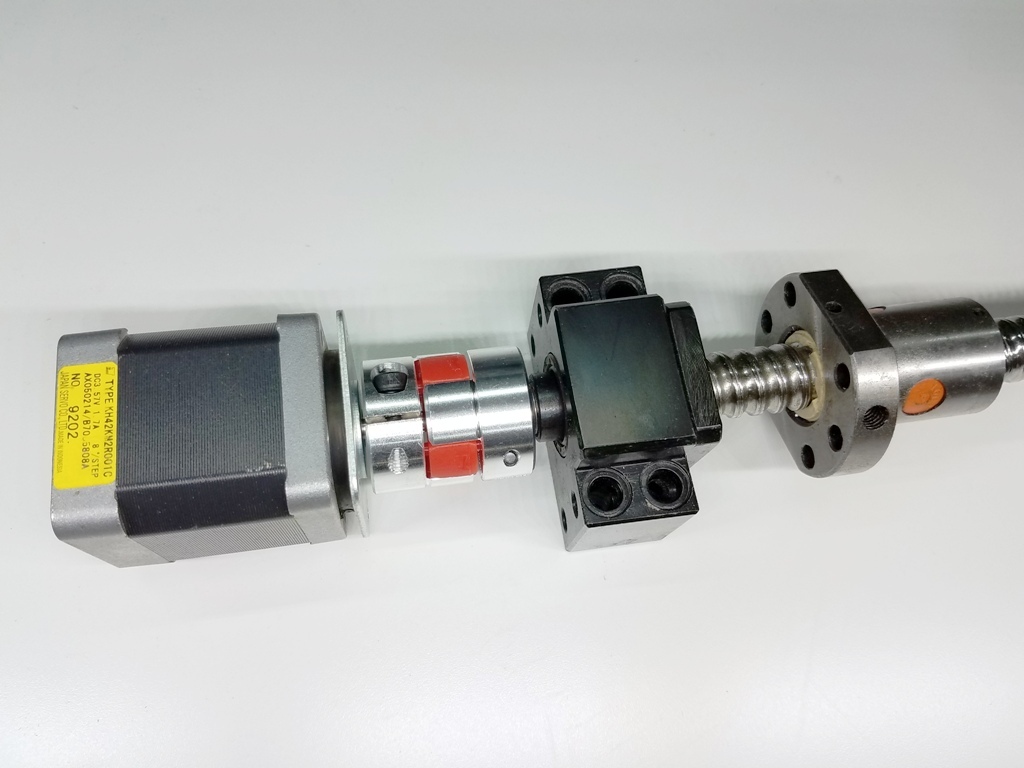

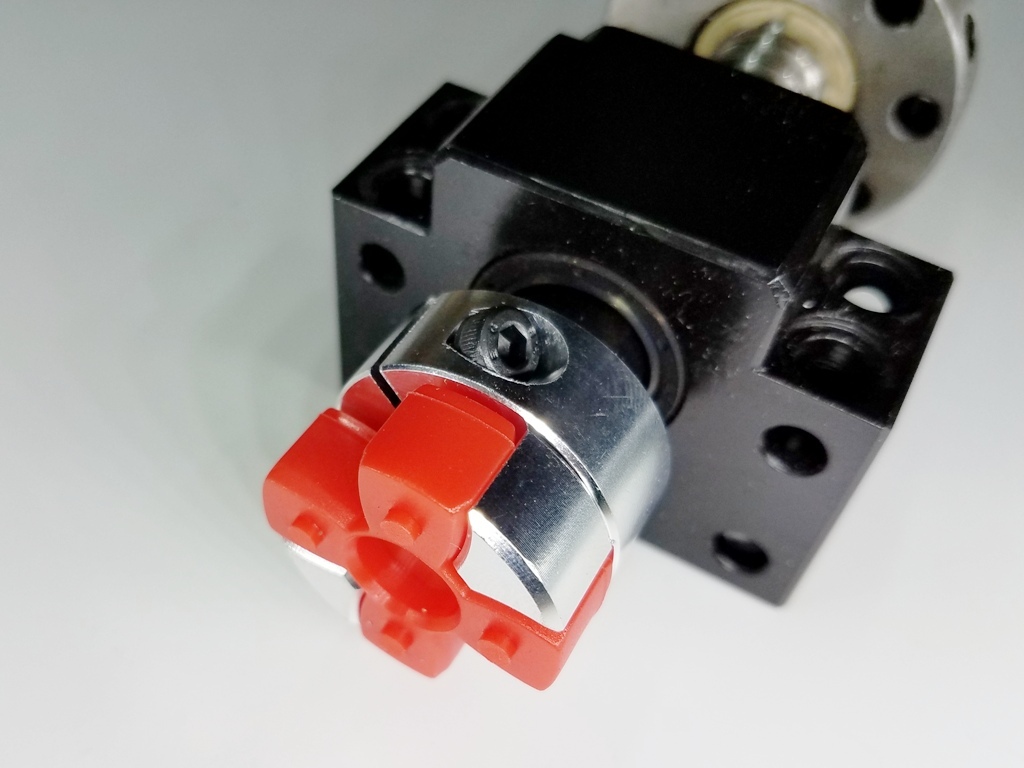

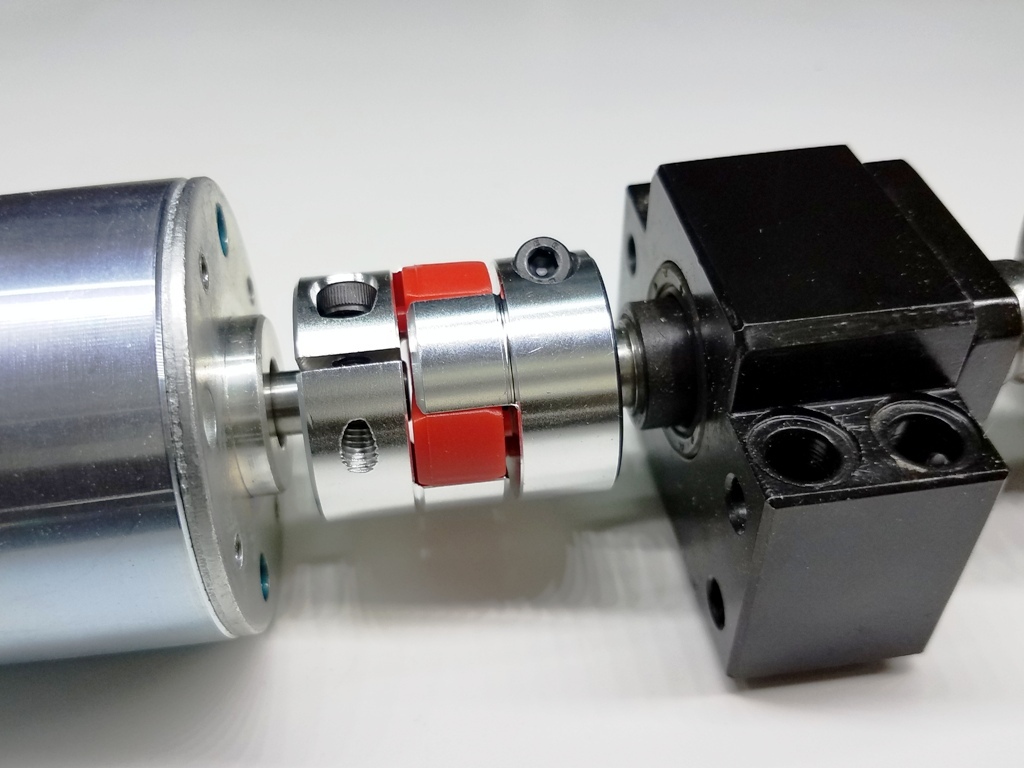

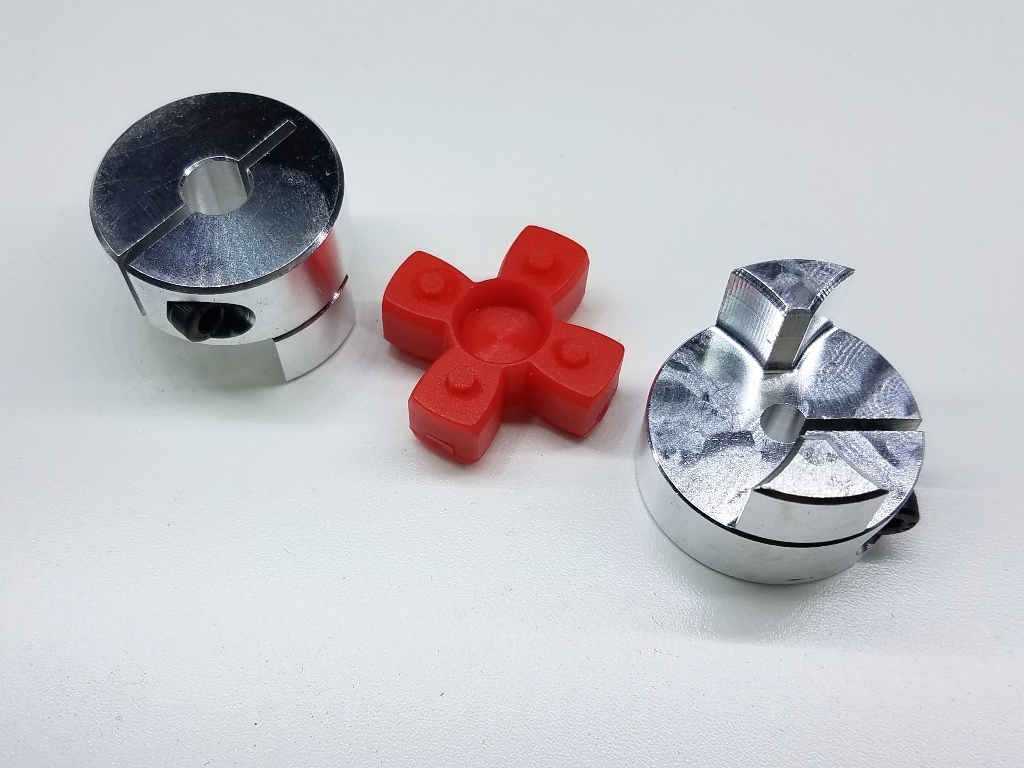

At $6.99, this Zyltech plum coupling is positioned as an accuracy-oriented flexible coupler for CNC and RepRap 3D printer use. It can withstand higher torque and provide better accuracy, and it comes in bore sizes of 5mm, 6.35mm, 8mm, 10mm, and 12mm. The bore pairing identified for this unit is 8mm/8mm, with an outside diameter of 25mm and a length of 35mm. The flexible spider element helps absorb misalignment, making it a middle-ground fit between the rigid aluminum coupler and the larger steel coupler. The limitation is that both shaft bores must fall within the available sizes, so your motor and lead screw need to be sized accordingly.
Rigid Coupling Aluminium Motor Shaft Coupling Coupler 1/5To2/5" Flanged Coupling
The $1.99 TOSEASTARS rigid coupling is the lowest-priced option in this roundup. It is an aluminum coupler with outside diameter 20mm and length 25mm, and its bore diameter range is 5-10mm, which covers shafts such as 6.35mm and 10mm. The design is backlash-free with high synchronization, exceptionally high torsional rigidity, simple construction, and high load capacity. That makes it a strong fit for precision machine tools, CNC lathes, engraving machines, and other setups where position accuracy depends on a stiff connection between a servo or stepper motor and a ball screw. The trade-off is that rigid couplings do not allow relative displacement, so your shafts need to be closely aligned before installation. The model is GX-D20L25.
5/8" x 5/8" Flexible Jaw Spider Shaft Coupling CNC Stepper Motor Coupler 15.875
This $13.99 flexible jaw coupling from CNC.BZ uses a three-piece design: two aluminum clamp hubs and an elastomeric spider. It is for 5/8-inch shafts on both ends, which is 15.875mm each side, and is aimed at CNC stepper motor and lead screw connections. The spider element damps impulse loads and minimizes shock to the motor, and the jaw coupling is fail-safe because the two hubs interlock if the spider fails, allowing an orderly shutdown. It is suited to axial motion and angular misalignment, and the spider standoffs keep the hubs properly spaced during installation. The part number is 100366 and the listed country of origin is the United States. The main limitation is the fixed 5/8-inch bore on both ends: if your motor shaft and load shaft are not both 5/8 inch, this coupler will not fit.
Final Recommendation by Use Case
- For precision CNC and machine tools with tightly aligned shafts: The TOSEASTARS rigid aluminum coupler at $1.99 offers backlash-free, high-torsional-rigidity behavior and the lowest listed price in the group.
- For small 3D printer or light CNC shafts: The Zyltech plum coupler at $6.99 covers common bore sizes and uses a flexible element to handle higher torque and improve accuracy.
- For dual 5/8-inch shafts with fail-safe behavior: The CNC.BZ jaw/spider coupler at $13.99 combines aluminum hubs with an elastomeric spider and interlocks if the spider fails.
- For large motor shafts in the 18mm to 22mm range: The MECCANIXITY flexible steel coupler at $32.40 gives you the largest bore span and a durable steel body.
