Choosing between a chemical process pump and an air-operated double diaphragm pump is really a question of where the pump will live in your operation. One side brings a larger industrial footprint and higher pressure capacity; the other brings air-powered flexibility and a much smaller investment. Both are built for chemical transfer, but they solve different problems.
Quick Verdict
If you need a heavy-duty chemical process pump that can handle higher system pressure, the Flowserve MK3 is the more substantial choice. If you need a compact, air-powered pump for lower-pressure transfer and want to keep initial cost down, the air-operated double diaphragm pump is the easier call.
Comparison
| Consideration | Flowserve MK3 Centrifugal | 120 PSI Air-Operated Diaphragm Pump |
|---|---|---|
| Price | USD 2,750.00 | USD 126.01 |
| Pump Type | Centrifugal chemical process pump | Air-operated double diaphragm pump |
| Pressure Rating | 250 PSI @ 100°F | 120 PSI |
| Body/Trim Material | DCI material | Aluminum body, acetal ball material, nitrile diaphragm |
| Condition | New - Open box | New |
Where Each Product Wins
Where the Flowserve wins The Flowserve is the stronger choice for a demanding industrial process line where duty cycle and pressure requirements are high. It has the mass and build for continuous chemical service.
Where the diaphragm pump wins The air-operated pump wins when your priority is air-powered operation and quick setup. It runs on a compressed air supply, so there's no electric motor package to source, and the 1-inch inlet/outlet makes it easy to connect to hoses on the spot.
Product Notes

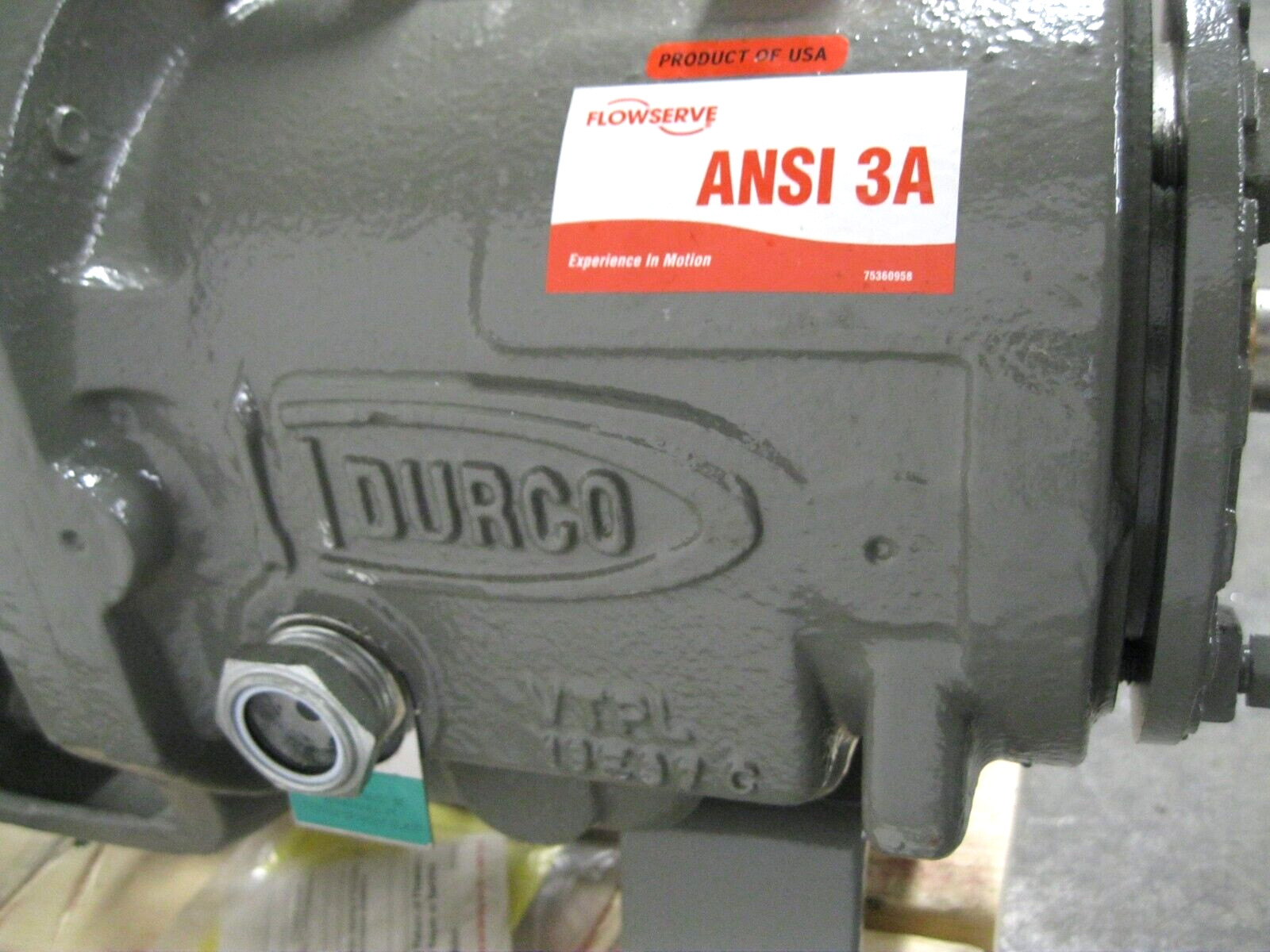

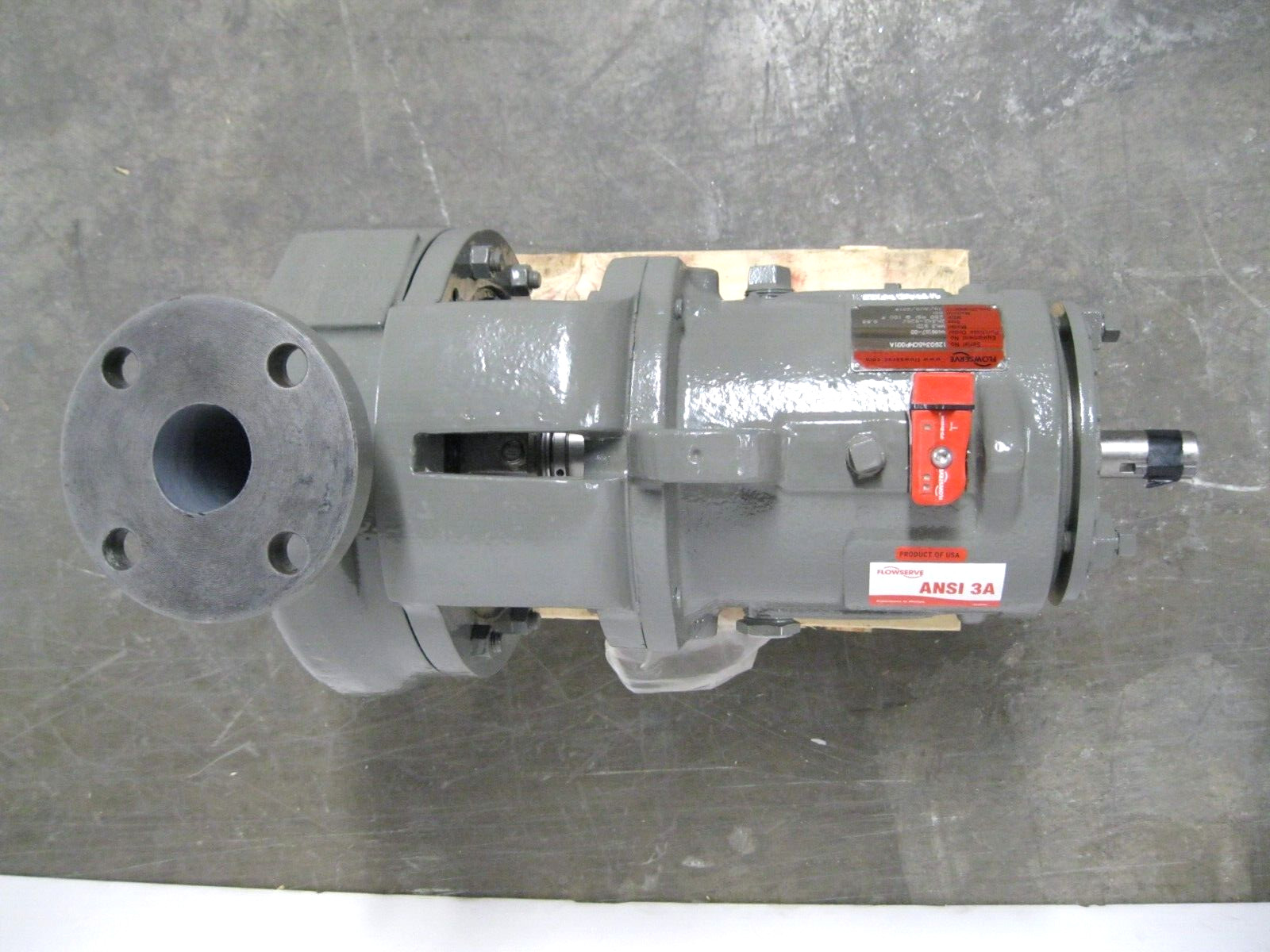

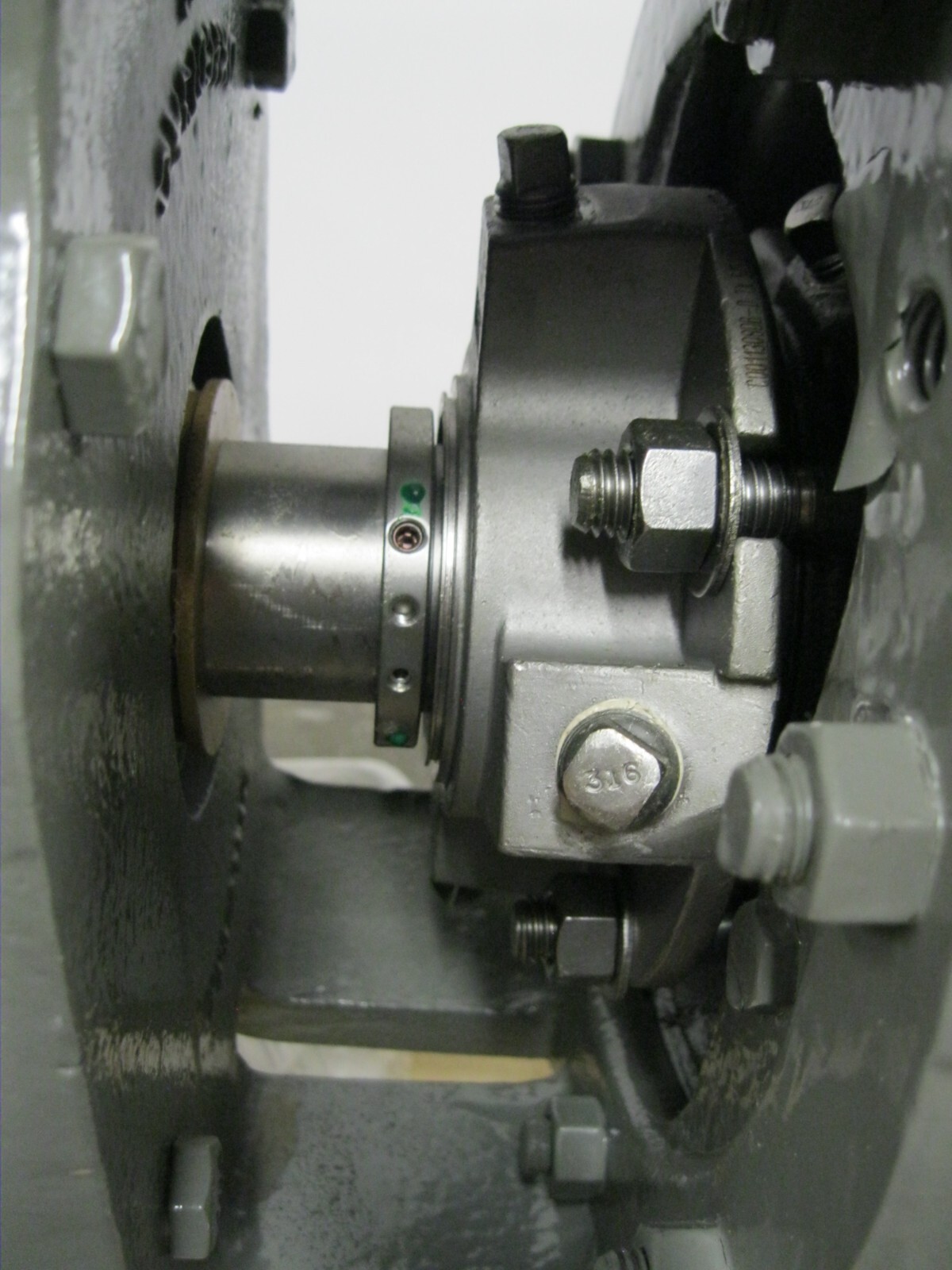

3" x 2" Durco Flowserve MK3 STD Chemical Process DCI Centrifugal Pump NEW Z1

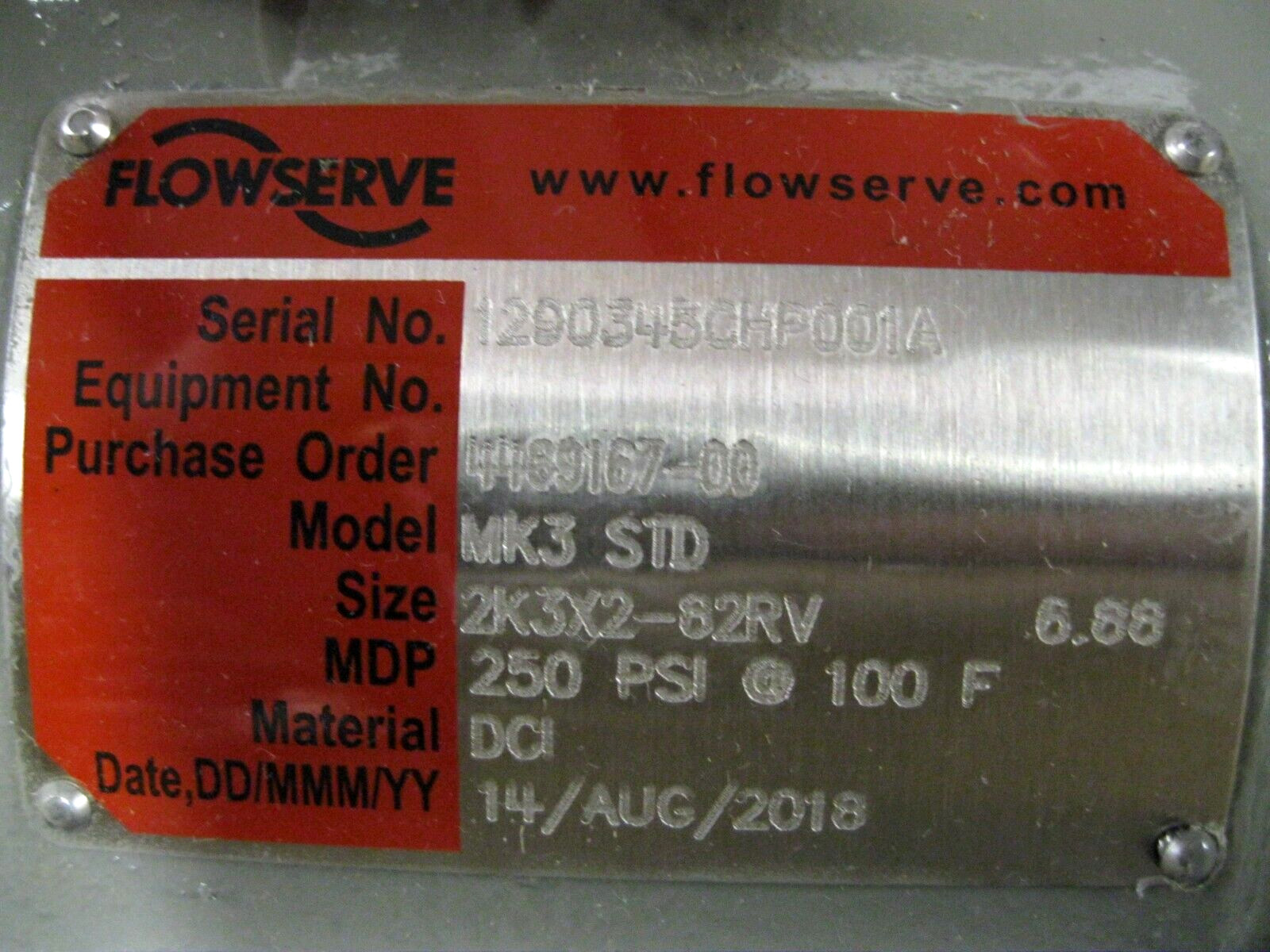

For a chemical process application that needs higher pressure, the Flowserve MK3's 250 PSI @ 100°F rating is the headline reason to choose it. The DCI construction and centrifugal design place it in a different class than an air-operated diaphragm pump. This is not a grab-and-go tool: at 315 pounds, it demands a plan for moving and handling. The unit is New - Open box, so you're getting an unused surplus unit that has not been verified before purchase. That is a real caveat for this level of investment. If the pressure requirement and installation are right, the capability is there, but you need to go in with eyes open about condition and handling.
120PSI Industrial Chemical Air-Operated Double Diaphragm Pump 1" Inlet+Outlet
The air-operated double diaphragm pump is the low-cost, flexible option. At 35 GPM and 120 PSI, it covers a lot of transfer tasks, and the 1-inch inlet and outlet make hose hookup straightforward. The aluminum body, acetal ball material, and nitrile diaphragm give you a visible material combination that suits petroleum-fluid and general chemical transfer work. The tradeoff is air consumption: at an average of 38 CFM, you need a supply that can keep up. It also doesn't offer the pressure headroom of the Flowserve, so very high-pressure process lines will need the centrifugal pump instead. For one-off or light-duty transfer work, it's often all the pump you need.
Final Choice by Use Case
If your process line demands high pressure and your budget reaches around $2,750, the Flowserve MK3 is the one. If you need a flexible air-powered unit for lower-pressure transfer and want to keep the initial investment at $126.01, the air-operated diaphragm pump is the right call.
