Choosing between a hydraulic motor and a hydraulic pump can stop a repair or build project cold. The motor converts fluid pressure into rotating force, while the pump creates that pressure and flow. If you're weighing a high-torque hydraulic motor against a 20 quart 12V DC dump trailer power unit, the real question is whether you need shaft rotation or lifting power. The two parts sit close in price-$240.00 for the pump and $242.68 for the motor-so your application, not the price tag, should make the call.
Quick Verdict
If your task is replacing or upgrading a hydraulic motor on heavy equipment, the High-Torque Hydraulic Motor 101-1075-009 is the right component. If your task is powering a dump trailer with a self-contained unit, the 20 Quart Double Acting Hydraulic Pump 12V DC is the right package. Choose the part that matches the work.
Comparison
| Product | Price | Type | Notable Specs |
|---|---|---|---|
| High-Torque Hydraulic Motor 101-1075-009 | $242.68 | Hydraulic motor | 1'' splined shaft, 1/2'' NPTF ports, steel construction, new |
| 20 Quart Double Acting Hydraulic Pump 12V DC | $240.00 | Hydraulic power unit | 12V DC motor, 20 quart tank, SAE #6 ports, double-acting, 3200 psi, 0.91 GPM, 15 ft remote |
Where Each Product Wins
High-Torque Hydraulic Motor 101-1075-009 wins when you need rotary hydraulic drive. It is listed as compatible with a wide range of equipment makes and models, from tractors and skid steer loaders to excavators and marine winches, making it a versatile replacement part.
20 Quart Double Acting Hydraulic Pump 12V DC wins when you need a complete power unit. It bundles the pump, motor, reservoir, valve, and controls into one box, so it is ready to serve a dump trailer setup.
Product Notes

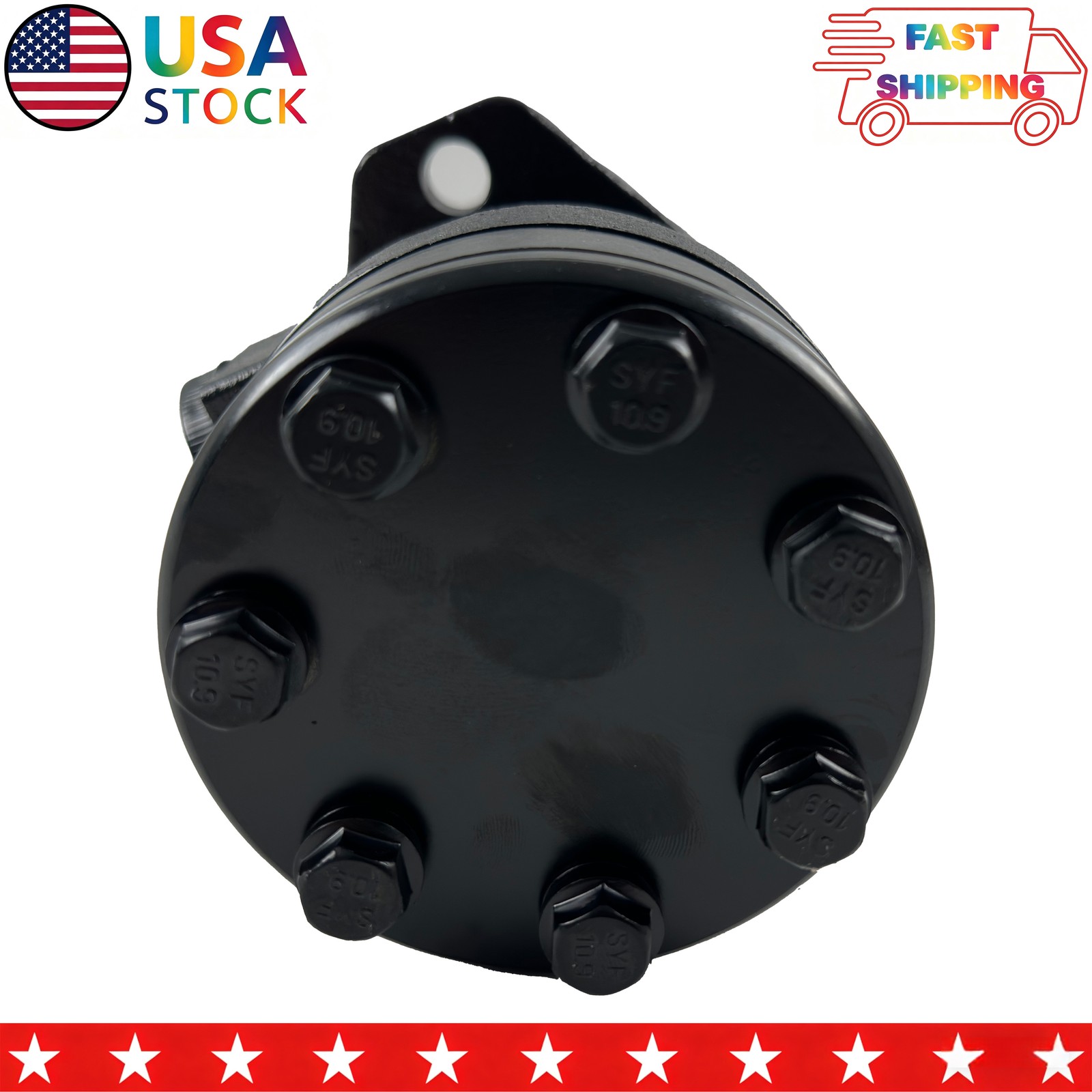

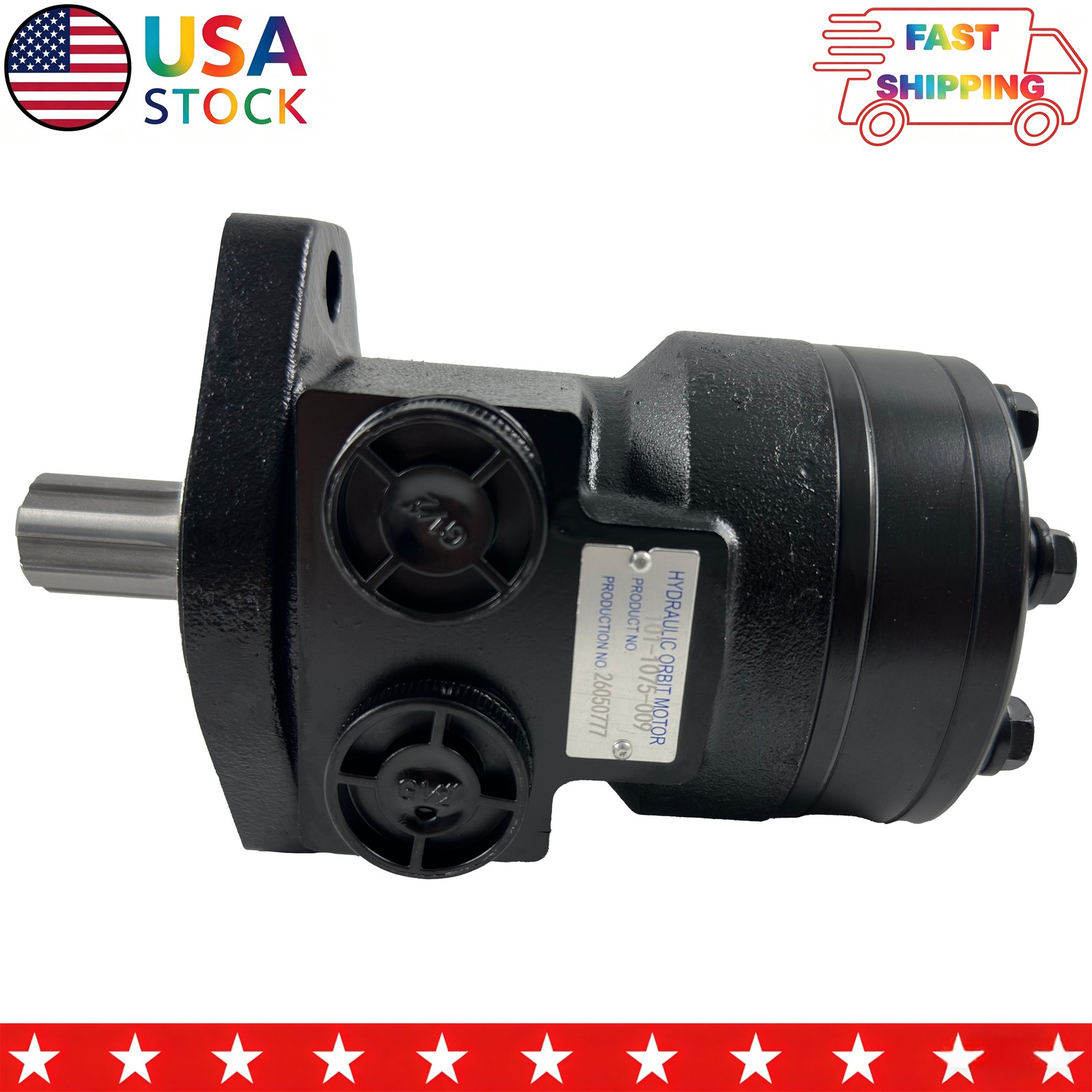

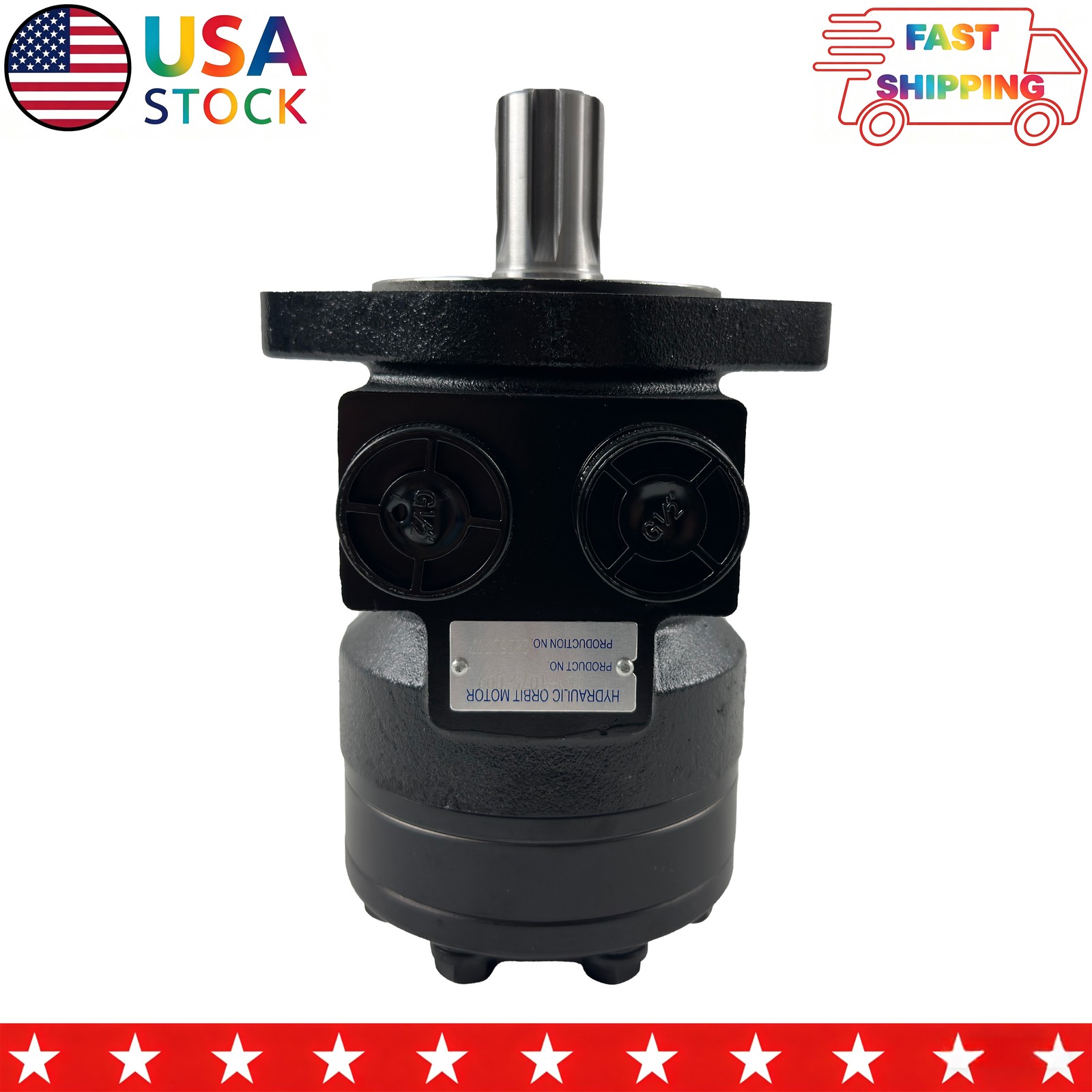

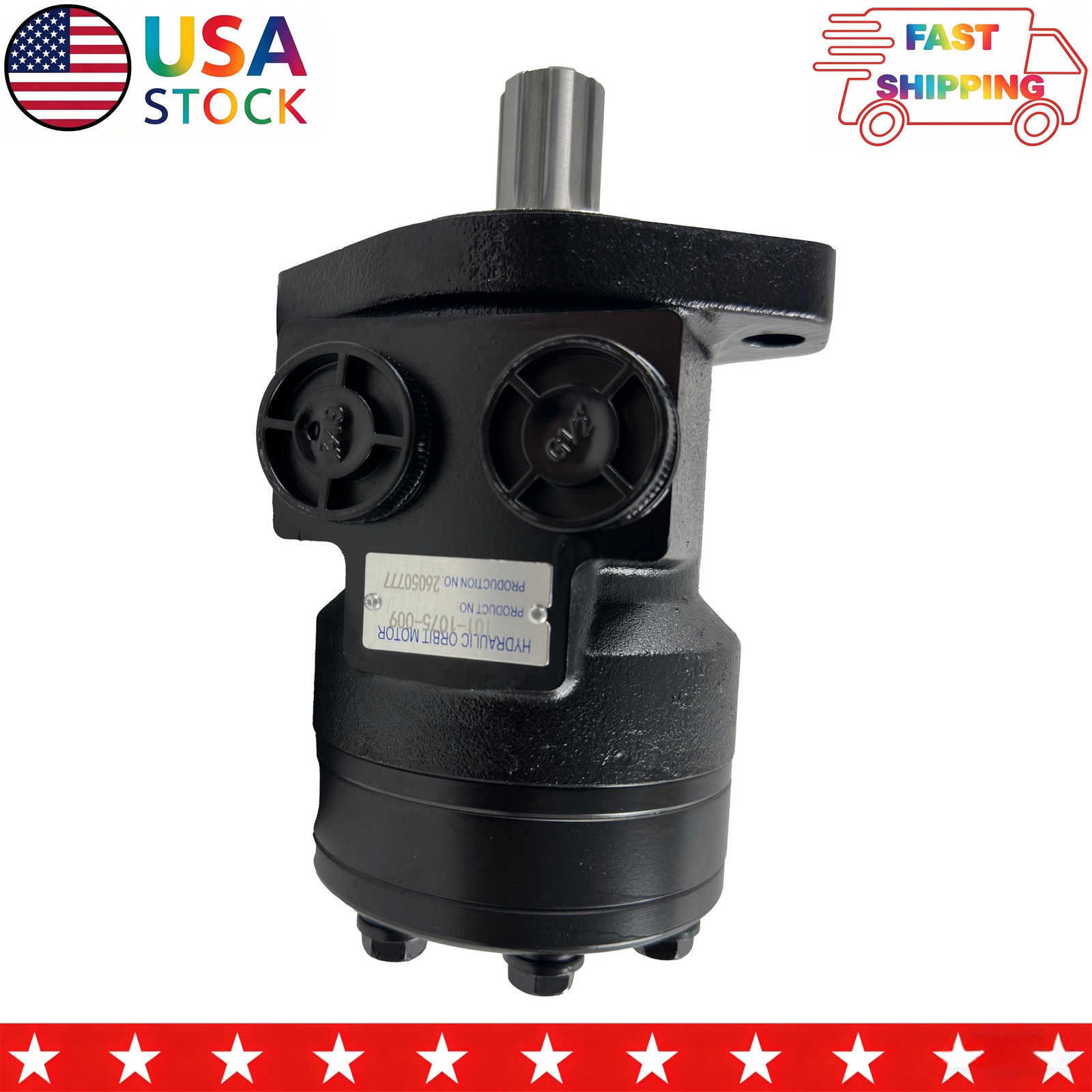

High-Torque Hydraulic Motor 101-1075-009
This motor is built for applications that convert fluid pressure into rotational force. Its steel body and splined shaft are designed for demanding jobs, and the NPTF ports let you connect it into an existing hydraulic circuit. The compatibility list spans tractors, backhoe loaders, skid steers, excavators, and marine winches, making it a versatile replacement part. The trade-off is that it is only the motor. You still need a hydraulic pump, a reservoir, and a control valve to supply pressurized fluid and direct the rotation. If you are rebuilding a system from scratch, that adds cost and plumbing. As a standalone replacement, though, it is a straightforward part-number target.

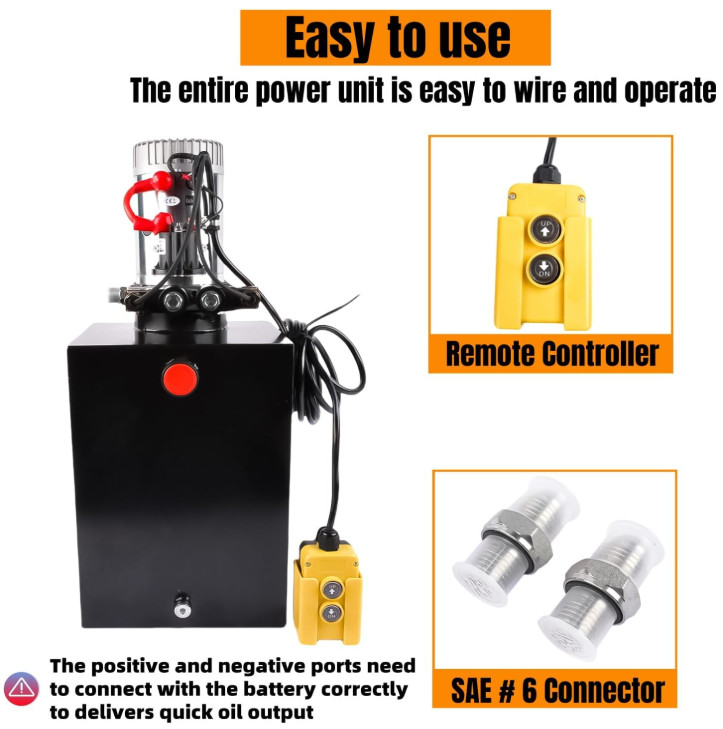

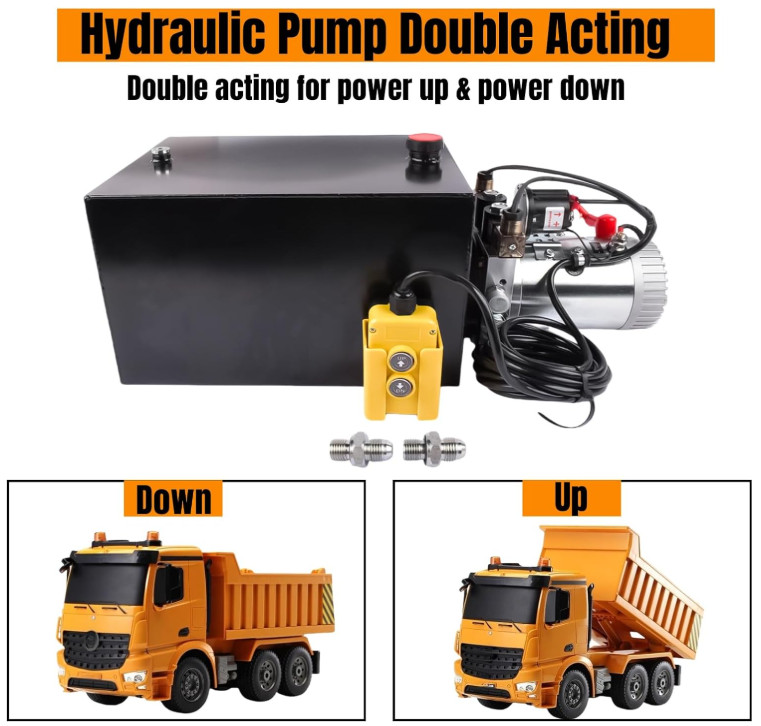

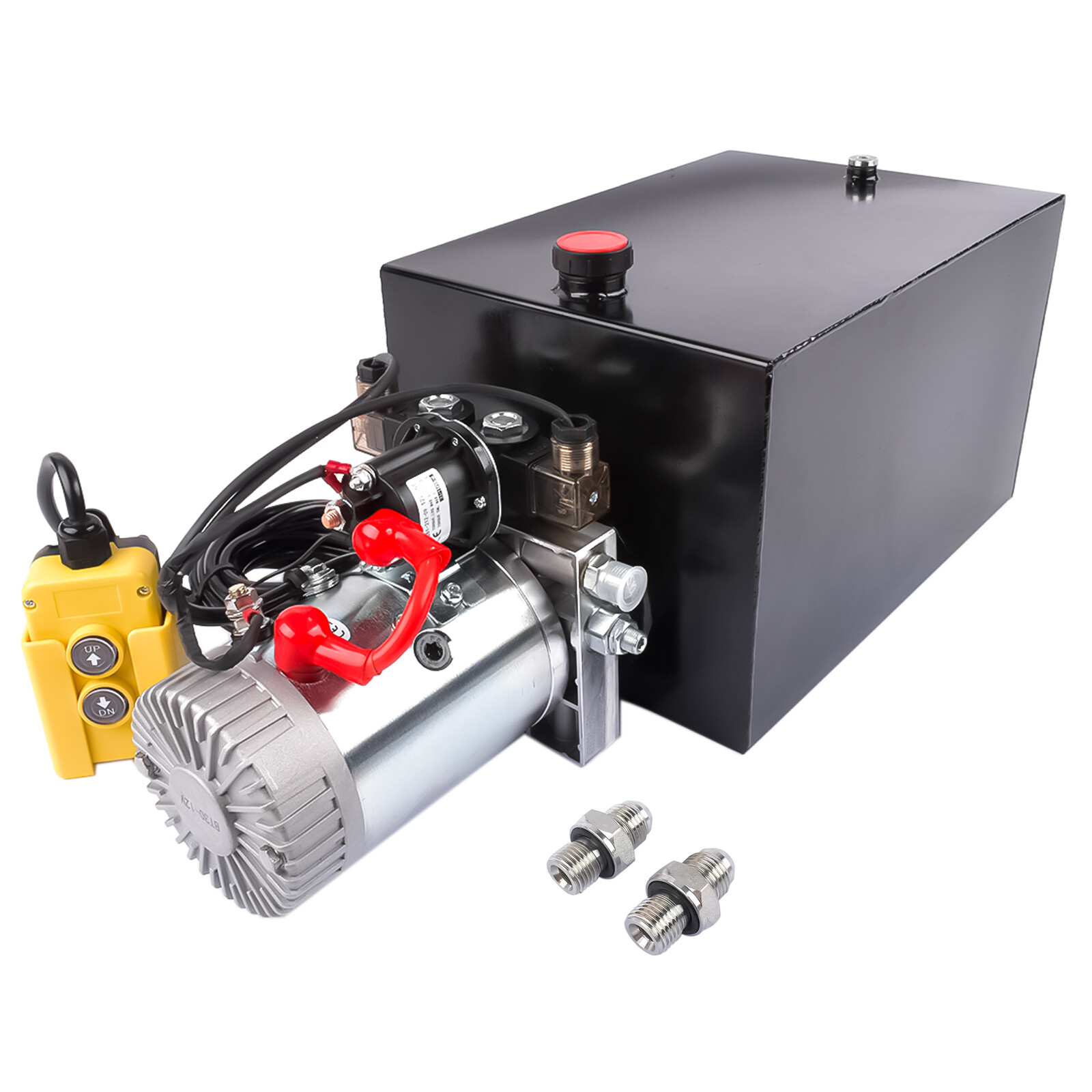

20 Quart Double Acting Hydraulic Pump 12V DC
This is a self-contained hydraulic power unit for a dump trailer, not just a bare pump. The package includes a 12V DC motor, a 20 quart metal tank, SAE #6 ports, double-acting power-up/power-down valve function, a 15-foot remote pendant, and two extra SAE #6 fittings. It delivers up to 3200 psi on port A and 1500 psi on port B, with a flow rate up to 0.91 GPM, which suits raising and lowering a trailer bed. Being double-acting means it can push the cylinder both ways, making it a direct replacement for many trailer systems. The limitation is scope: this unit is specialized for lift/lower duty, not for driving a rotary motor at high flow.
Final Choice by Use Case
- Need to replace a hydraulic motor on a tractor, skid steer, backhoe, or marine winch? Choose the High-Torque Hydraulic Motor 101-1075-009.
- Need to power a dump trailer with a complete, ready-to-wire unit? Choose the 20 Quart Double Acting Hydraulic Pump 12V DC.
- Still torn? Let the task decide: rotation means motor, lifting means pump.
