Quick Take
If you are shopping hydraulics pneumatics, the first decision is whether your cylinder will run on compressed air or hydraulic fluid. The AMRAP 2x8A is the only hydraulic tie-rod cylinder listed, and it is also the largest and most expensive at USD 109.99. The other three are double-acting air cylinders with bores from 16mm to 25mm and strokes from 50mm to 150mm. The SWZHAI mini unit has the lowest listed price at USD 24.37, while the two 25mm-bore air cylinders sit close together at USD 38.99 and USD 33.99.
Listed Price Comparison
| Product | Listed Price | Price Bar |
|---|---|---|
| 2x8A Hydraulic Cylinder 2\" Bore 8 ASAE\" Stroke Double Acting Tie-Rod SAE PORTS | USD 109.99 | |
| 25mm Bore 150mm Stroke Double Acting Air Cylinder with Y Connector & 2 Fittings | USD 38.99 | |
| Air Cylinder 16mm Bore 50mm Stroke, Mini Air Pneumatic Cylinder Double Action Si | USD 24.37 | |
| 25mm Bore 150mm Stroke Double Action Pneumatic Air Cylinder MECCANIXITY | USD 33.99 |
Decision Matrix
| Product | Best For | Trade-off |
|---|---|---|
| AMRAP 2x8A Hydraulic Cylinder | Heavy hydraulic work with an 8 ASA stroke and tie-rod design | Highest listed price at USD 109.99 |
| 25mm Bore Air Cylinder with Y Connector & 2 Fittings | Pneumatic setups that want the included Y connector and two fittings | Listed at USD 38.99, between the two other air cylinders |
| SWZHAI 16mm Mini Air Cylinder | Compact fixtures and a short 50mm stroke | Smaller 16mm bore and shorter stroke than the 25mm/150mm units |
| MECCANIXITY 25mm Pneumatic Cylinder | 25mm bore and 150mm stroke at USD 33.99 with compressed air listed as suitable media | No Y connector/fittings named in the title |
Product Notes

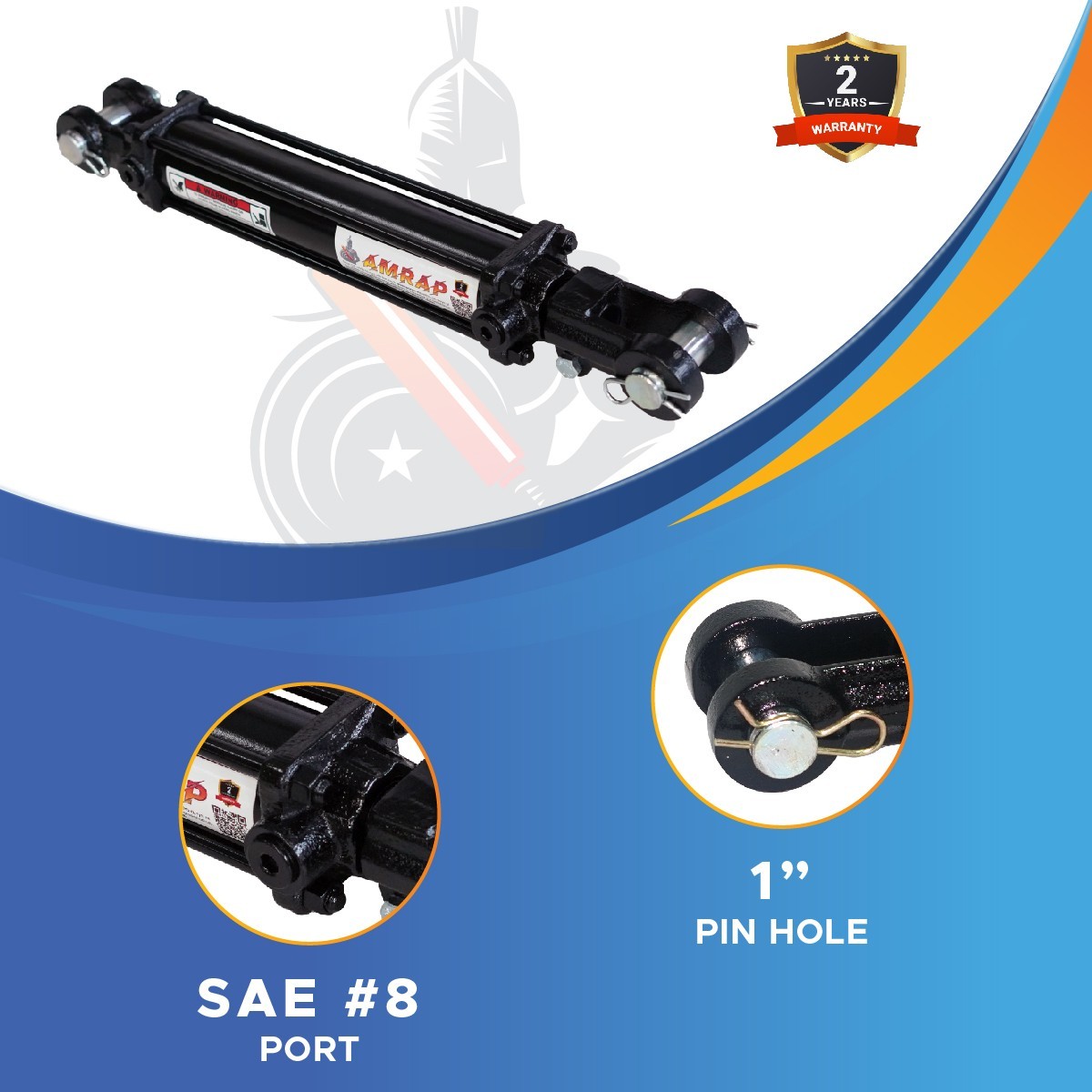

AMRAP 2x8A Hydraulic Cylinder

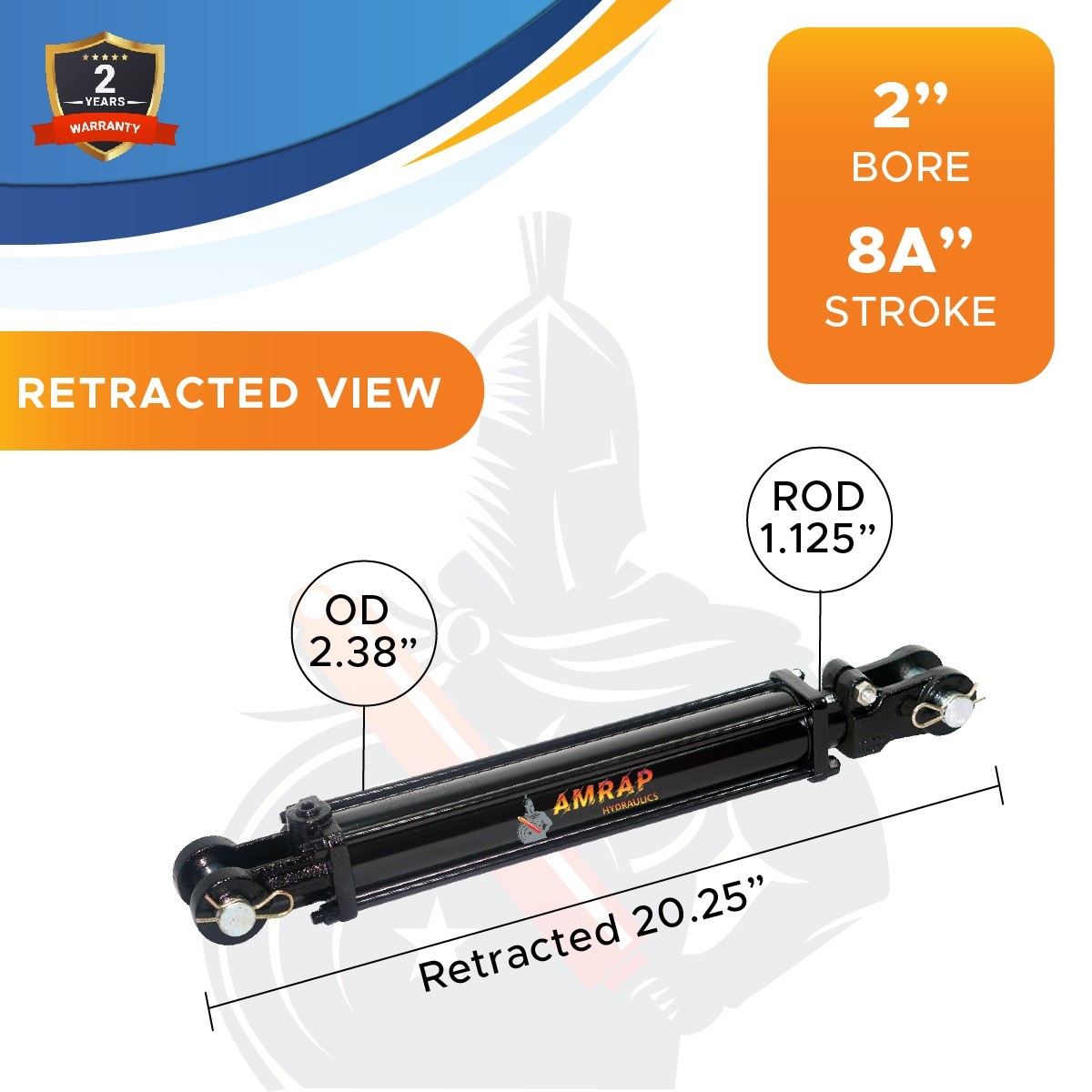

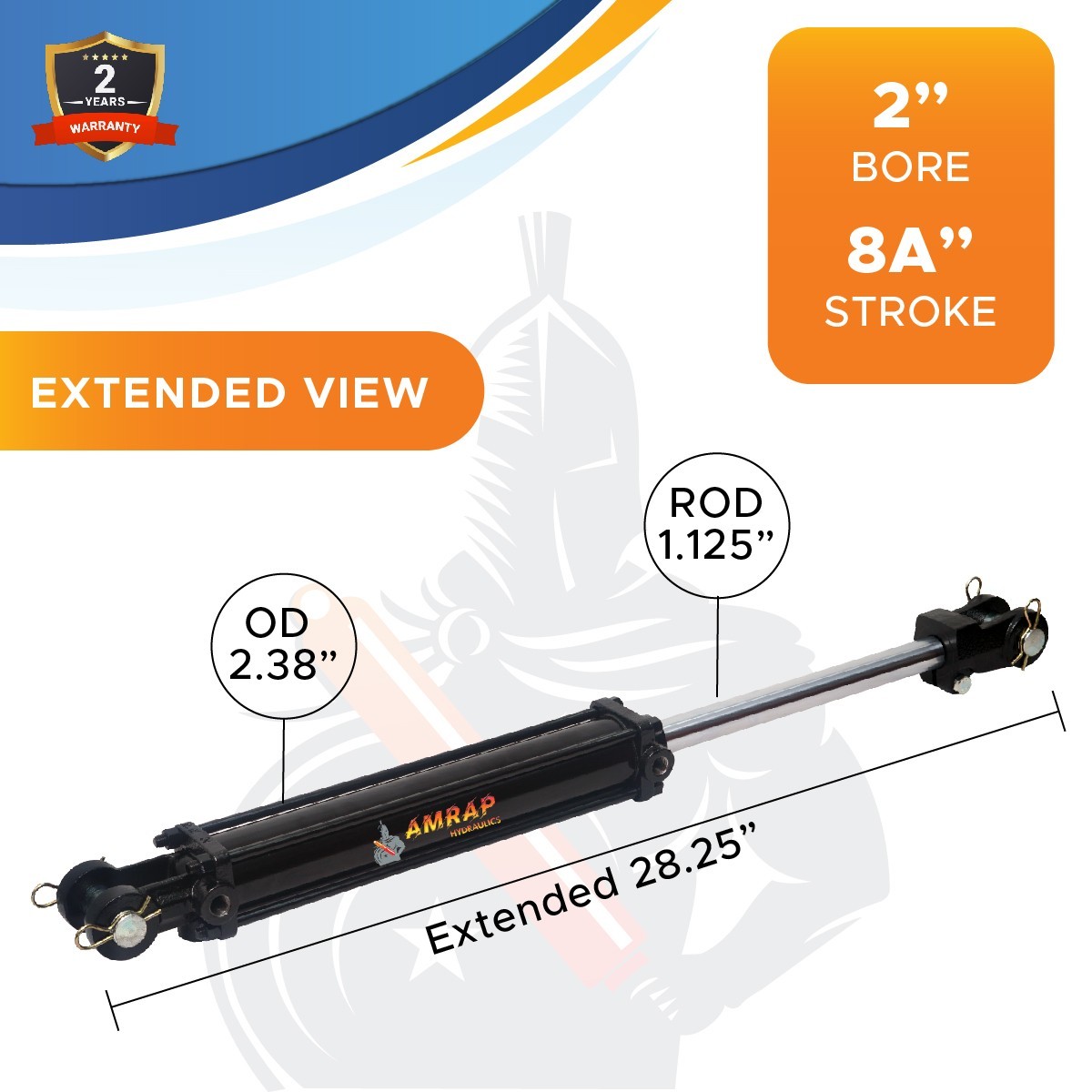

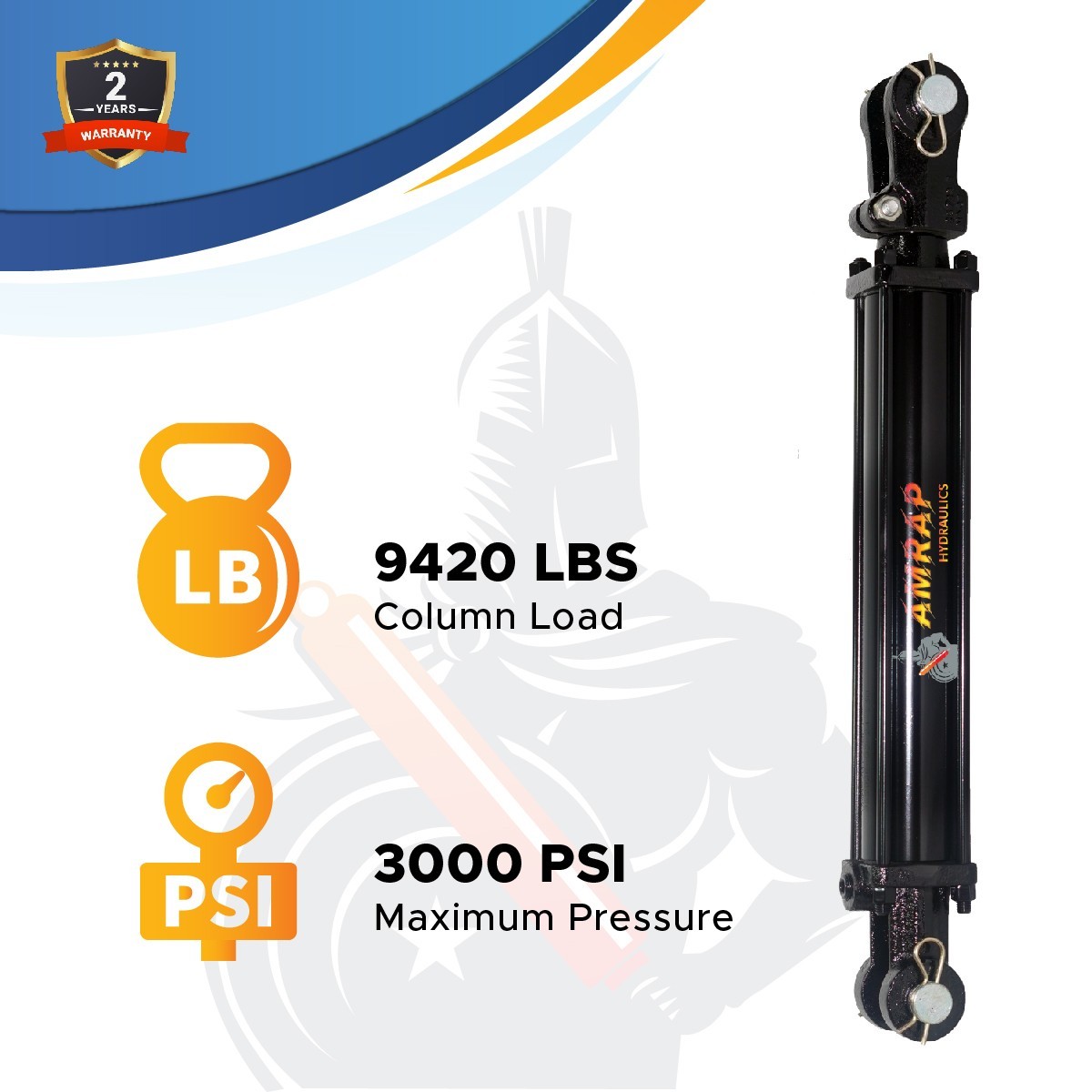

The AMRAP Co. 2x8A is the only hydraulic unit here. Its title spells out 2\" bore, 8 ASA stroke, double-acting tie-rod construction with SAE ports. The description adds a 38\" rod, retracted length of 20 1/4\", extended length of 28 1/4\", 1\" pin hole, 3/8\" NPT port size, and a column load rating of 9,420 lbs. If your application uses hydraulic fluid and needs a substantial tie-rod cylinder, this is the option to start with. The trade-off is the price: USD 109.99 is the highest listed here, so it makes sense mainly when you actually need hydraulic capacity.

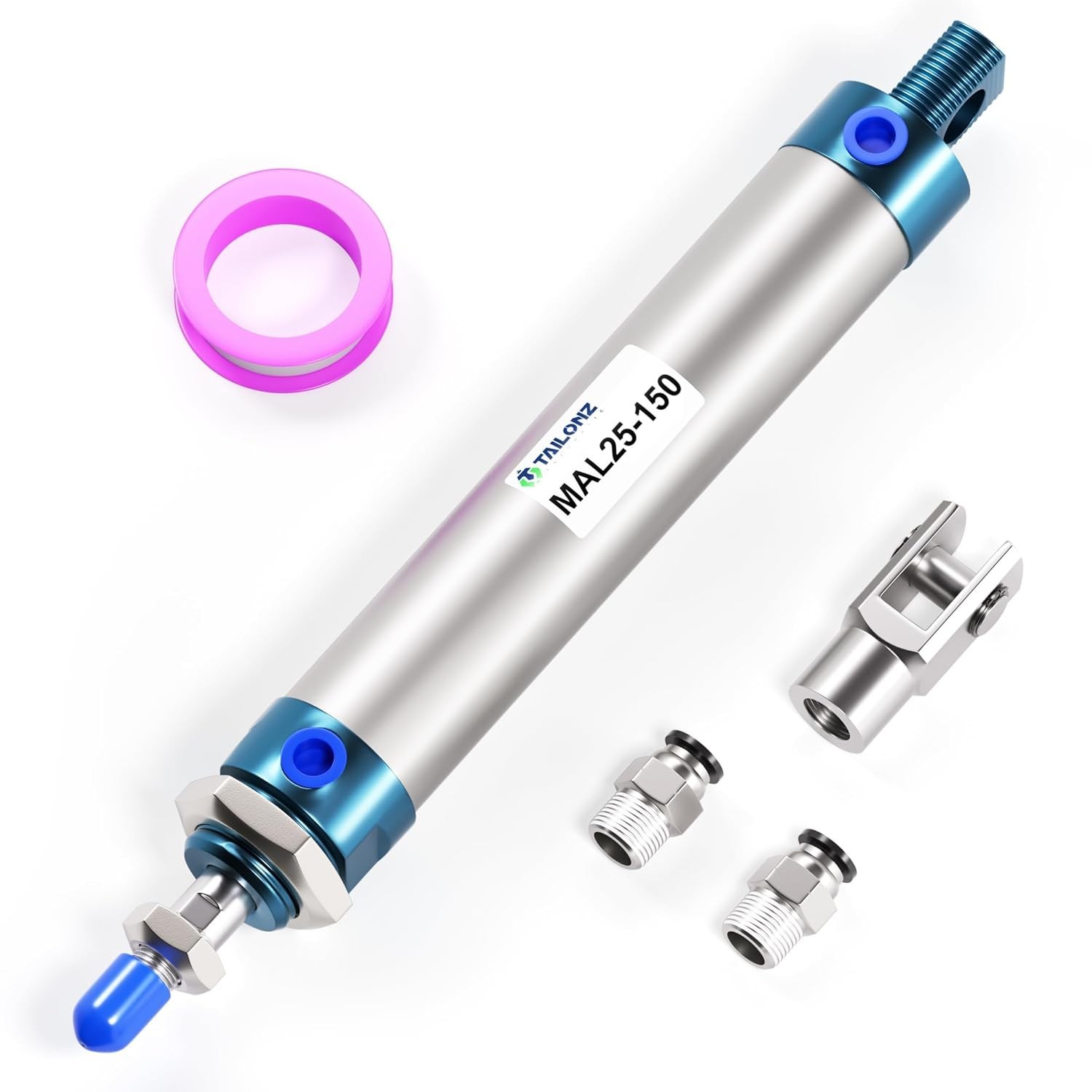

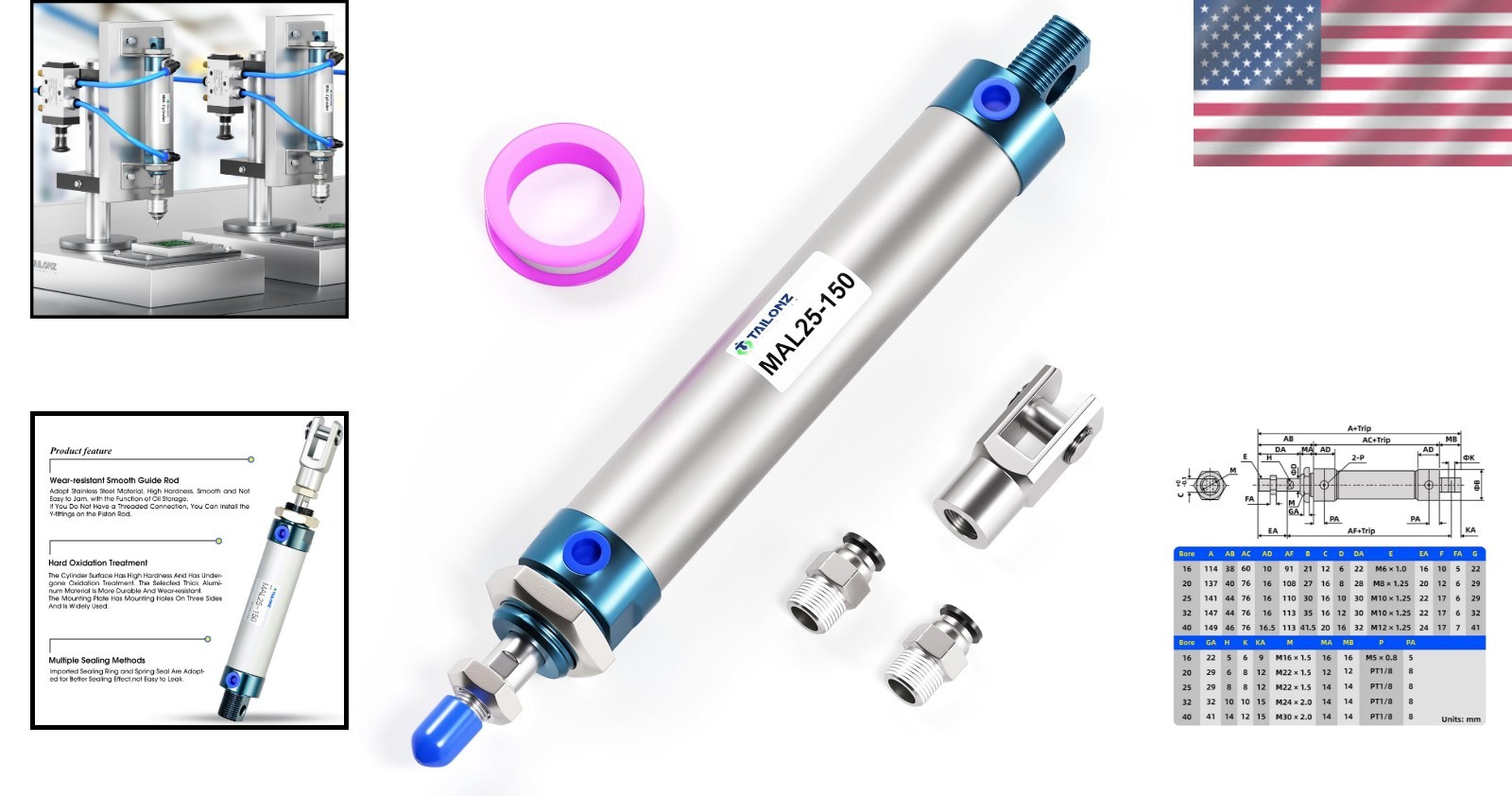

25mm Bore 150mm Stroke Double Acting Air Cylinder with Y Connector & 2 Fittings
This 25mm bore, 150mm stroke air cylinder comes with a Y connector and two fittings, which the title calls out. Attributes list a PT1/8 port size, maximum pressure of 1.0 MPa (145 psi), double-acting action, single-rod type, adjustable buffer, and aluminum construction. Working temperature is listed as -4 to 176 degrees Fahrenheit. At USD 38.99, it is priced between the other two air cylinders. Choose it if you want the convenience of having the Y connector and fittings included in the listed package. Its main limitation is that it costs more than the MECCANIXITY unit while sharing the same bore and stroke.
Air Cylinder 16mm Bore 50mm Stroke, Mini Air Pneumatic Cylinder Double Action Si
The SWZHAI Air Cylinder is the smallest and lowest-priced unit at USD 24.37. It has a 16mm bore and 50mm stroke, making it a compact option for tight spaces. The description highlights high-quality seals and a bidirectional sealing structure, and the package includes one cylinder, one Y connector, and four pneumatic quick fittings. Color is listed as red. This is the best fit when you need a small double-acting air cylinder and want the lowest listed price. The limitation is scale: the 16mm bore and 50mm stroke mean it will not move as much air or travel as far as the 25mm/150mm cylinders in this group.
25mm Bore 150mm Stroke Double Action Pneumatic Air Cylinder MECCANIXITY
The MECCANIXITY 25mm bore, 150mm stroke pneumatic cylinder is listed at USD 33.99, making it the lower-priced 25mm air cylinder in this comparison. Its attributes list a maximum pressure of 1.0 MPa, aluminum alloy construction, compressed air as suitable media, double-acting action, and single-rod type. Country of origin is listed as China. Choose this one if you want the 25mm/150mm format but do not need the Y connector and fittings that the other 25mm unit names in its title. The trade-off is that the other 25mm cylinder lists those accessories as part of its offered package, so compare package contents before deciding.
Final Recommendation by Use Case
- For hydraulic fluid work: Choose the AMRAP 2x8A Hydraulic Cylinder if the 2\" bore and 8 ASA stroke match your mount and the listed column load of 9,420 lbs fits your application.
- For a compact, low-cost air cylinder: The SWZHAI 16mm x 50mm cylinder at USD 24.37 is the smallest and lowest-priced listed option.
- For a 25mm bore with included fittings: The 25mm Bore 150mm Stroke Double Acting Air Cylinder with Y Connector & 2 Fittings at USD 38.99 bundles the connector and fittings.
- For a 25mm bore with a slightly lower listed price: The MECCANIXITY 25mm x 150mm at USD 33.99 is the lower-priced 25mm air cylinder when you do not need the Y connector/fittings package.
