Industrial valves become a wrong-fit purchase quickly when valve type, connection format, and actuation get mixed together. This group spans $66.35 to $664.70, but the more useful divide is functional: one choice is oriented to vacuum/process work, one is designated for water, one is a pneumatic threaded valve, and one is an actuator rather than a complete valve.
Quick take
Start by deciding whether the assembly calls for a valve or an actuator. From there, narrow the field by the configuration that matters most to the job: vacuum-oriented control, a water designation, pneumatic operation with a threaded connection, or the specific motion and pressure terms of an actuator. Price is a useful boundary, but the component format should lead the decision.
Listed-price comparison
| Option | Listed price | Relative position |
|---|---|---|
| MKS 253 Series Control Valve | USD 600.00 | |
| Process Control Valve 1" Stainless A743 CF8M | USD 220.00 | |
| Schrader Bellows C064-4002 Process Control Valve | USD 664.70 | |
| Johnson Controls MP823E Valve Actuator | USD 66.35 |
Decision matrix
- Model-family requirement: Choose the MKS Instruments entry when a 253 Series designation is already central to the specification.
- Water designation: Choose the Process Control Valve 1" Stainless A743 CF8M when water is the stated suitable media.
- Bronze construction: Choose the Schrader Bellows Sinclair-collins C064-4002 when bronze is a required material.
- Defined actuator motion: Choose the Johnson Controls MP823E when the .75 stroke and 9-13 PSI terms match the actuator requirement.
Product notes

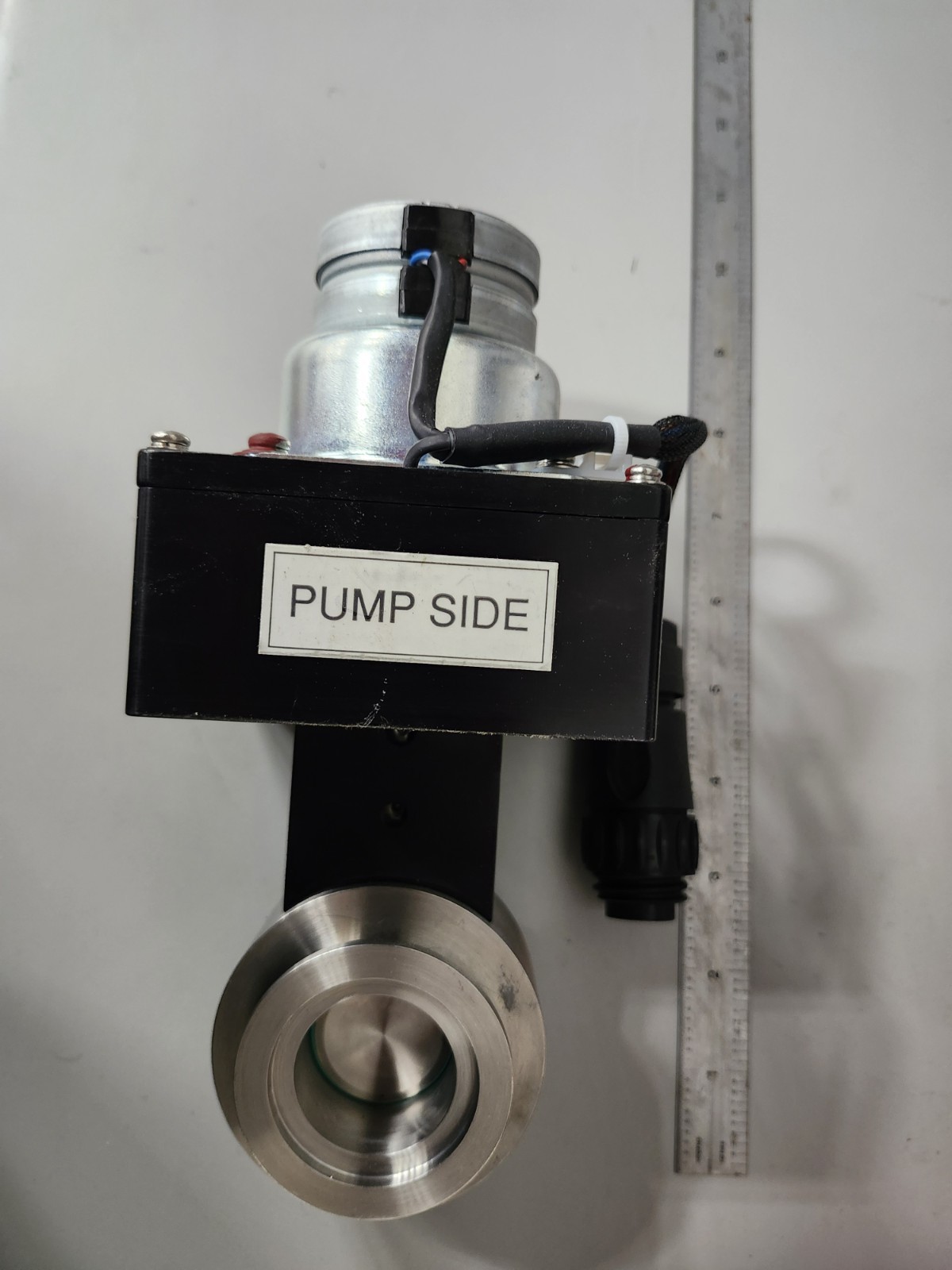

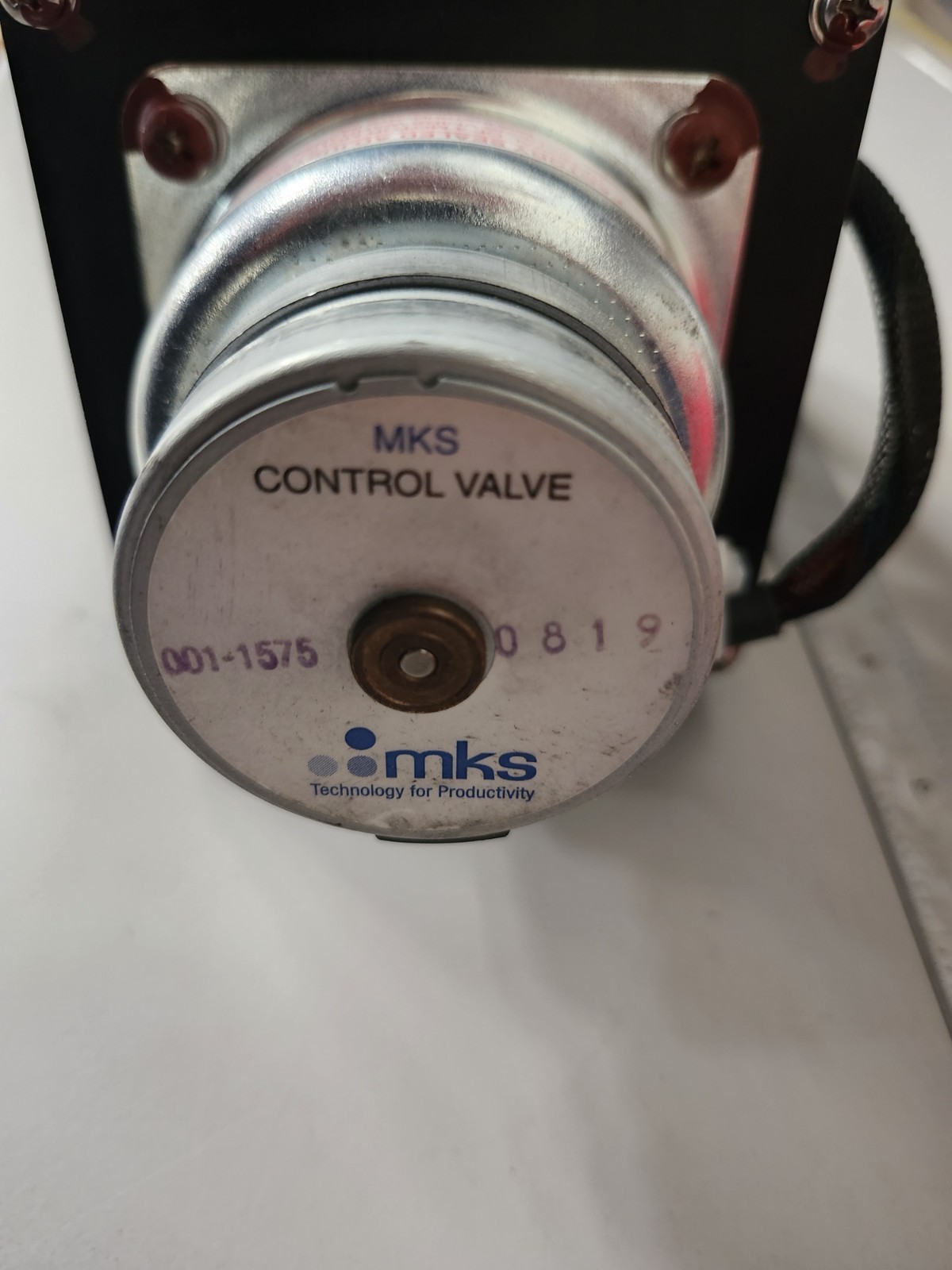

MKS Instruments 253B-13964 Control Valve 253 Series Vacuum / Process G650504G30
MKS Instruments 253B-13964 is the specialized choice for vacuum and process-control assemblies. It is described as a 253 Series motorized/throttle valve for vacuum systems, semiconductor processing, thin-film deposition, and industrial gas delivery. A stainless-steel KF/ISO-style flange and the Pump Side marking further define its configuration. Pick it when that vacuum-oriented valve format is the central requirement, rather than a general threaded process valve. Its limitation is the condition format: it is marked New - Open box and described as unused without the original box.
Process Control Valve 1" Stainless A743 CF8M
The Process Control Valve 1" Stainless A743 CF8M is aimed at a different specification. It is described as a 1-inch stainless, pilot-operated process control valve with a pin-type controller and a stated 1500 PSI CWP. Its water designation makes it a focused option where the 1-inch stainless construction and stated pressure designation align with the job. The constraint is in the actuator description: it says the valve looks like it goes with an electric actuator, perhaps a Badger Meter, rather than naming one definitively.
Schrader Bellows Sinclair-collins C064-4002 Process Control Valve 1in Npt
The Schrader Bellows Sinclair-collins C064-4002 makes sense when pneumatic actuation is non-negotiable. Its 1in NPT title, threaded mounting type, and Bronze material make it the clearest listed match for a pneumatic, threaded bronze configuration. The C064-4002 model number also gives applications organized around that part number a concise identifier. Its limitation is price positioning: it sits at the top of the four-item range, making it most appropriate where this pneumatic threaded form is specifically needed rather than where a lower-priced general alternative is the goal.
Johnson Controls MP823E .75 Stroke 9-13 PSI Process Control Valve Actuator
Johnson Controls MP823E is not presented as a complete valve; it is explicitly a process control valve actuator. The .75 stroke and 9-13 PSI wording provide defined actuator terms, while MP823E appears in both the title and model. That makes it the direct choice for an MP823E actuator requirement, particularly when the stated stroke and pressure range are the pertinent terms. The tradeoff is condition: this is the only Used entry, while the three valve listings are marked New - Open box.
Final recommendations by use case
For vacuum or process-control work centered on a 253 Series valve, select the MKS Instruments 253B-13964 Control Valve 253 Series Vacuum / Process G650504G30. For a 1-inch stainless, pilot-operated process valve, choose the Process Control Valve 1" Stainless A743 CF8M. For a pneumatic 1in NPT valve, the Schrader Bellows Sinclair-collins C064-4002 Process Control Valve 1in Npt is the focused match. For an MP823E actuator requirement, choose the Johnson Controls MP823E .75 Stroke 9-13 PSI Process Control Valve Actuator.
