Choosing between a complete hydraulic power unit and a bare gear pump can feel like comparing a ready-to-assemble cabinet to a sheet of plywood. In the hydraulics and pneumatics world, the right choice depends entirely on how much of the system you already have. Some projects need a self-contained, plug-and-play unit. Others just need the core pump and rely on the builder to supply the extras. That's exactly the decision in front of you with these two products.
Quick verdict
If you need to power a dump trailer with minimal setup, the Magister Hydraulics 12V DC power unit is the straightforward pick. It brings the motor, tank, valve, and remote together in a single package. If you're assembling a custom hydraulic circuit and want a high-pressure gear pump at a lower price, the Dynamic Fluid Components GP-F20 is the better fit. It won't run on its own, but it offers more headroom for demanding applications.
Comparison
| Product | Price | Price Bar | Action | Pressure | Flow/Displacement | Ports |
|---|---|---|---|---|---|---|
| Magister 12V Unit | $439.00 | Double acting | 2500 PSI | 1.25 GPM | SAE 6 | |
| Dynamic GP-F20 | $191.62 | Single acting | 3650 PSI | 0.48 cu in/rev | SAE-12 inlet, SAE-10 outlet |
The price spread between them is $247.38, which reflects their different roles in a hydraulic system. The Magister costs more because it's a complete power unit, while the Dynamic is a component for those who already have a drive source.
Where each wins
The Magister wins on convenience. It's a complete power package that includes an 8-quart plastic tank, a 6 kW motor, a pressure relief valve, and a wired remote controller. You don't need to track down extra parts to get a working dump trailer lift. The unit weighs 17 pounds and carries a 1-year warranty, reinforcing its ready-to-run nature.
The Dynamic wins on pressure capability and plumbing flexibility. Its max pressure rating is higher, giving you headroom for demanding circuits, and the SAE-12 inlet and SAE-10 outlet ports offer options for larger hoses and fittings. At 11 pounds, it's also the lighter of the two, which can matter in tight mounting spaces.
Product notes

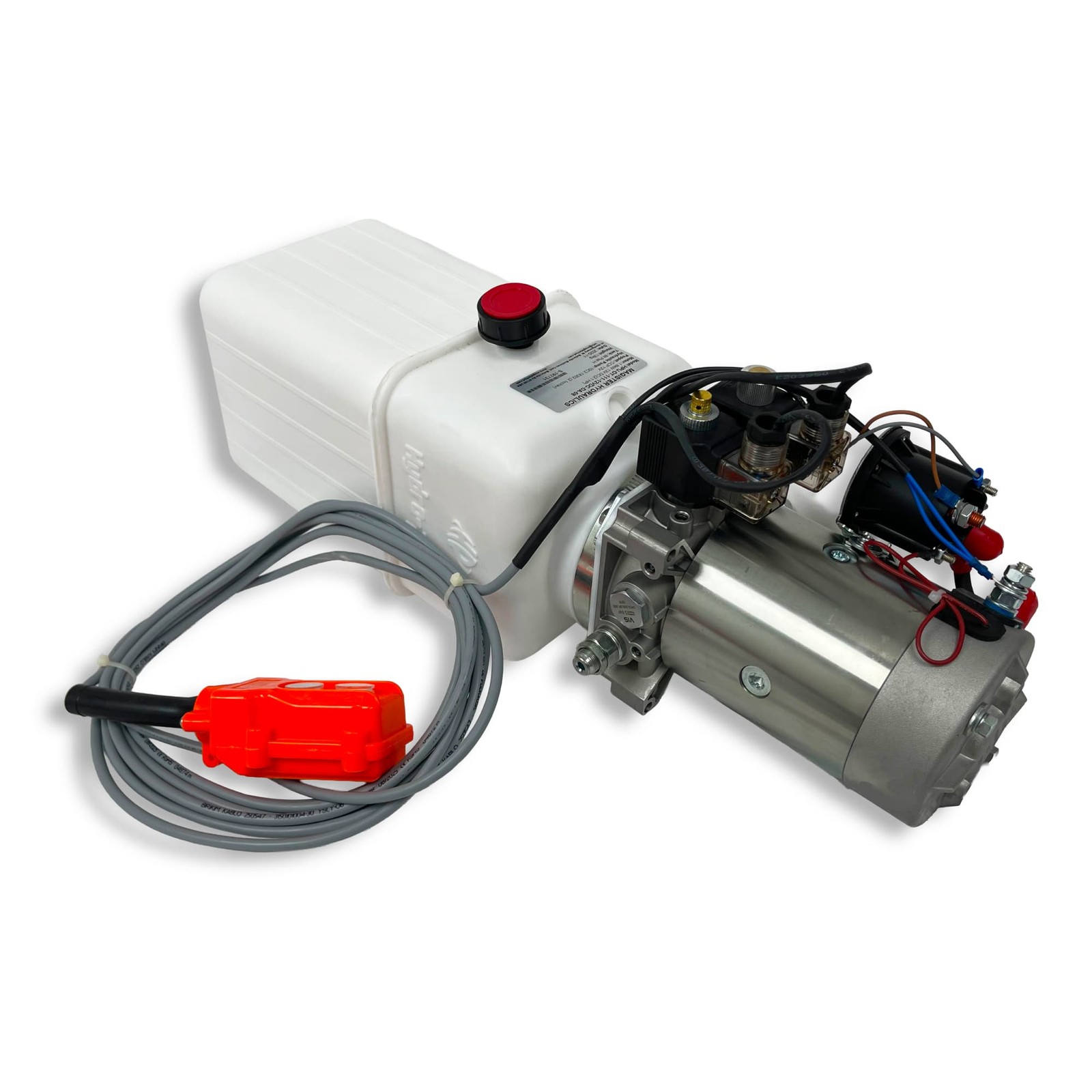

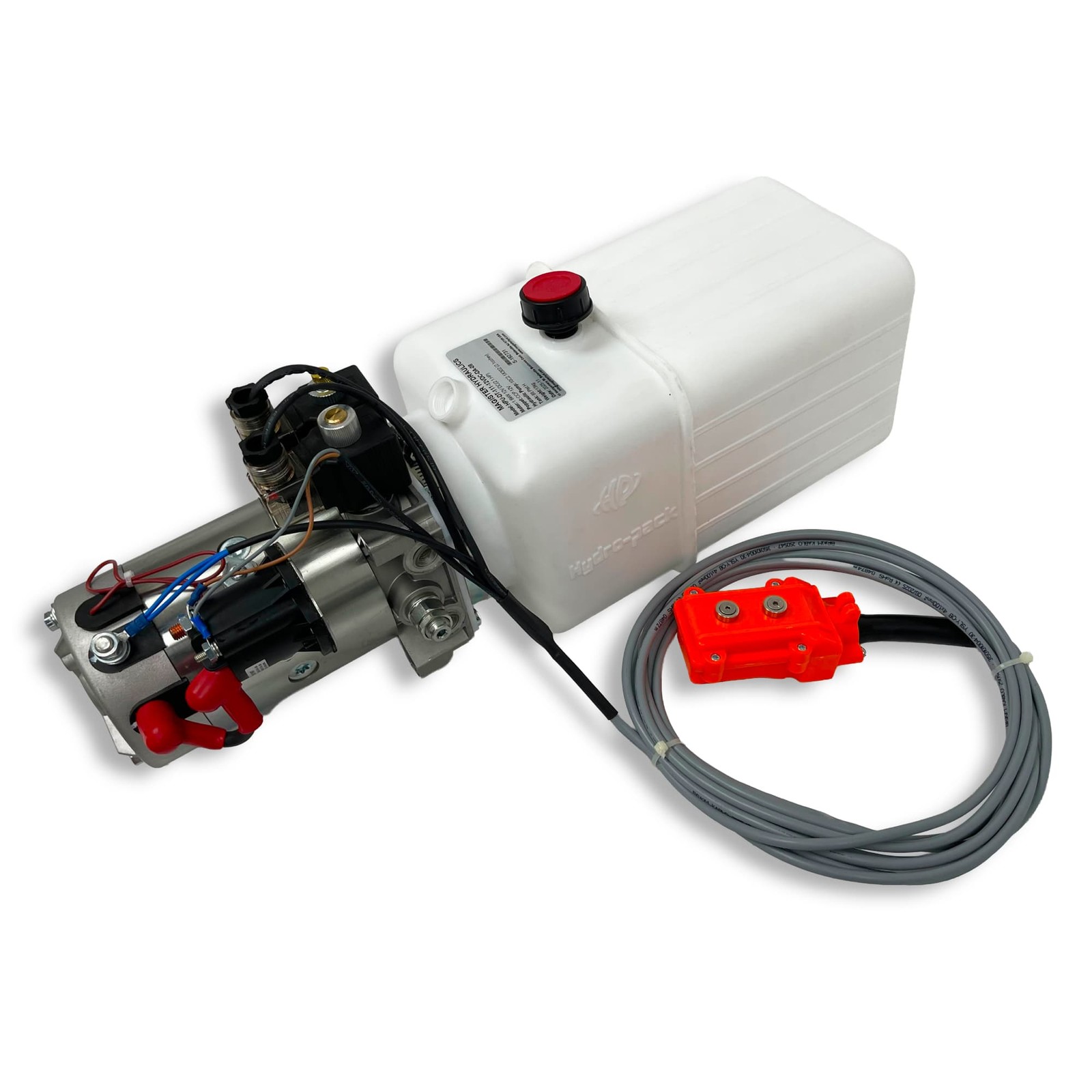

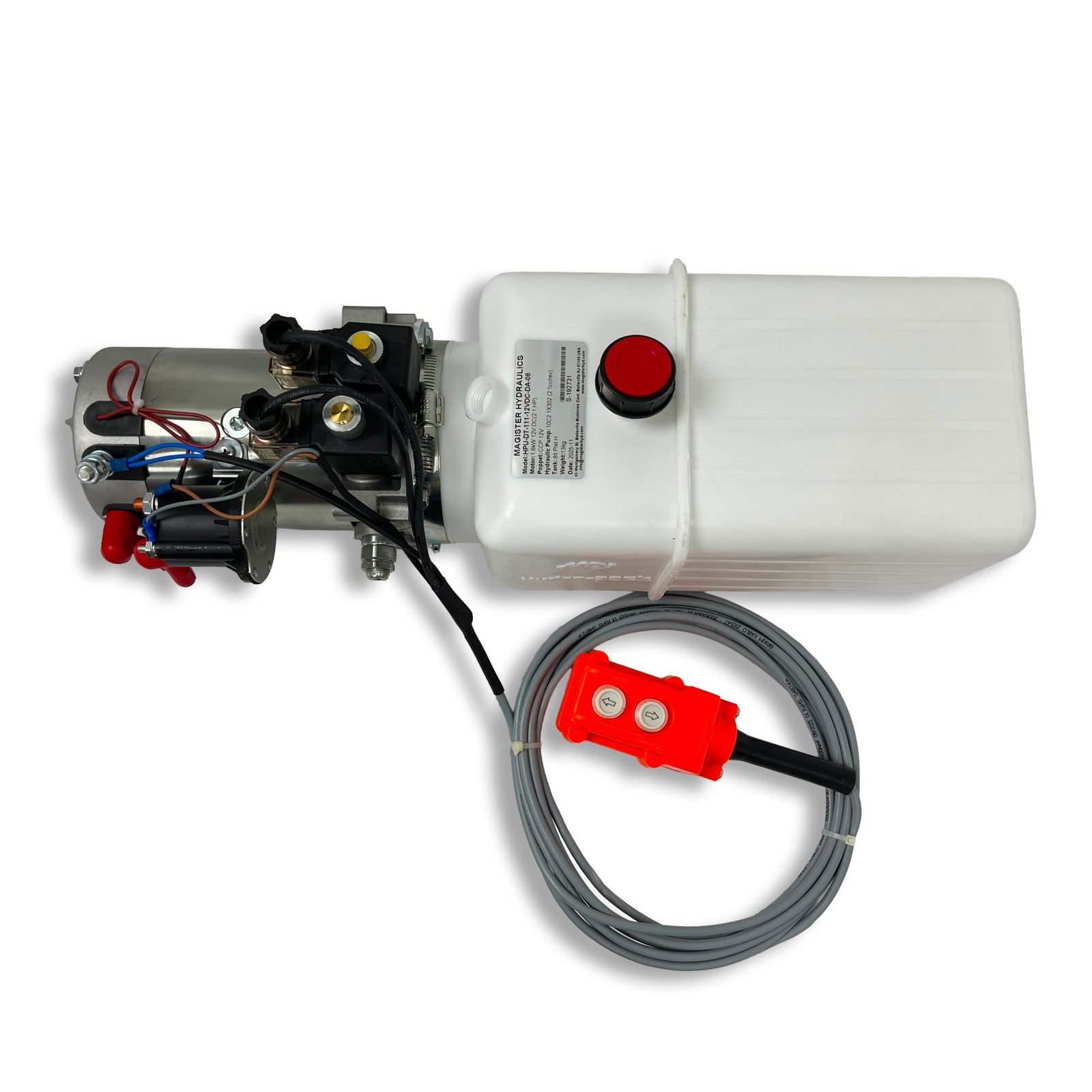

Magister Hydraulics 12V Dump Trailer Power Unit
This is the unit to choose when you want a complete system in one box. The 8-quart plastic tank, 6 kW motor, pressure relief valve, and remote controller are all included, so you can connect it to a battery and a double-acting cylinder without sourcing additional components. It gives you power up and power down, which is exactly what dump trailer work requires. The 6 kW motor runs from a 12V DC battery, and the relief valve is set at 2500 PSI but is adjustable. The main trade-off is that the working pressure is limited to 2500 PSI, so it's not meant for high-pressure circuits. For a ready-to-run dump trailer power pack, this is a solid option, especially with the included remote and the 1-year warranty.
Dynamic Fluid Components GP-F20-08-P1-A
This bare gear pump is a builder's component. It's constructed with an aluminum center section and cast iron end plates, and it offers a max pressure rating of 3650 PSI. The displacement is 0.48 cu in/rev, and the ports are SAE-12 in and SAE-10 out. The drive shaft is 3/4-inch diameter straight, and the mounting flange is SAE A 2-bolt, which are common sizes for custom hydraulic setups. It's a single-acting pump with a pneumatic power source, so you'll need to supply the drive and the reservoir yourself. That makes it a better fit for someone who already has a hydraulic system architecture in mind and just wants a tough, high-pressure pump to drop into their design. At $191.62, it's also the more budget-friendly entry point for a serious gear pump.
Final choice by use case
For a dump trailer that needs to raise and lower with power from a 12V battery, get the Magister Hydraulics power unit. It's ready to go with the tank, motor, valve, and remote all included. For a custom hydraulic build where you're handling the plumbing and drive, the Dynamic GP-F20 gear pump is the more flexible and lower-priced route. If you prioritize convenience and a complete package, the Magister wins. If you prioritize pressure capability and cost control, the Dynamic is the one to choose.
