In hydraulics and pneumatics, the first choice you'll make is pneumatic vs hydraulic. Pneumatic cylinders use compressed air for fast, light-duty movement; hydraulic power units push heavy loads with pressurized fluid. These two components sit at opposite ends of that spectrum: a mini air cylinder and a hydraulic pump for dump trailers. The real question isn't which is better-it's which matches the force, speed, and power source you have on hand.
Quick Verdict
If your work involves lightweight pushing, pulling, or clamping with shop air, the mini air cylinder is the straightforward choice. If you need to lift a dump trailer bed or handle heavy hydraulic loads, the hydraulic power unit is the unit that fits the job.
At a Glance
| Product | Price | Key Specs | Best For |
|---|---|---|---|
| Air Cylinder 16mm Bore 300mm Stroke | $28.99 | 16mm bore, 300mm stroke, double action, M5 port | High-frequency, lightweight pneumatic movements |
| 20 Quart Double Acting Hydraulic Pump 12V DC | $240.00 | 12V DC motor, double acting, 20-quart tank, 3,200 psi, SAE #6 ports | Dump trailer lifting and heavy hydraulic applications |
Where Each Product Wins
Air Cylinder - wins for speed and simplicity. It's designed for high-frequency working environments, and the included Y connector and pneumatic quick fittings reduce the extra parts you need to buy. That makes it a natural fit for automated gates, light push/pull stations, and small fixtures.
Hydraulic Power Unit - wins for force and self-contained power. With a remote control pendant and replacement fittings, it's aimed at real lifting tasks, not bench-scale motion. It delivers the pressure and flow needed for a dump trailer.
Product Notes

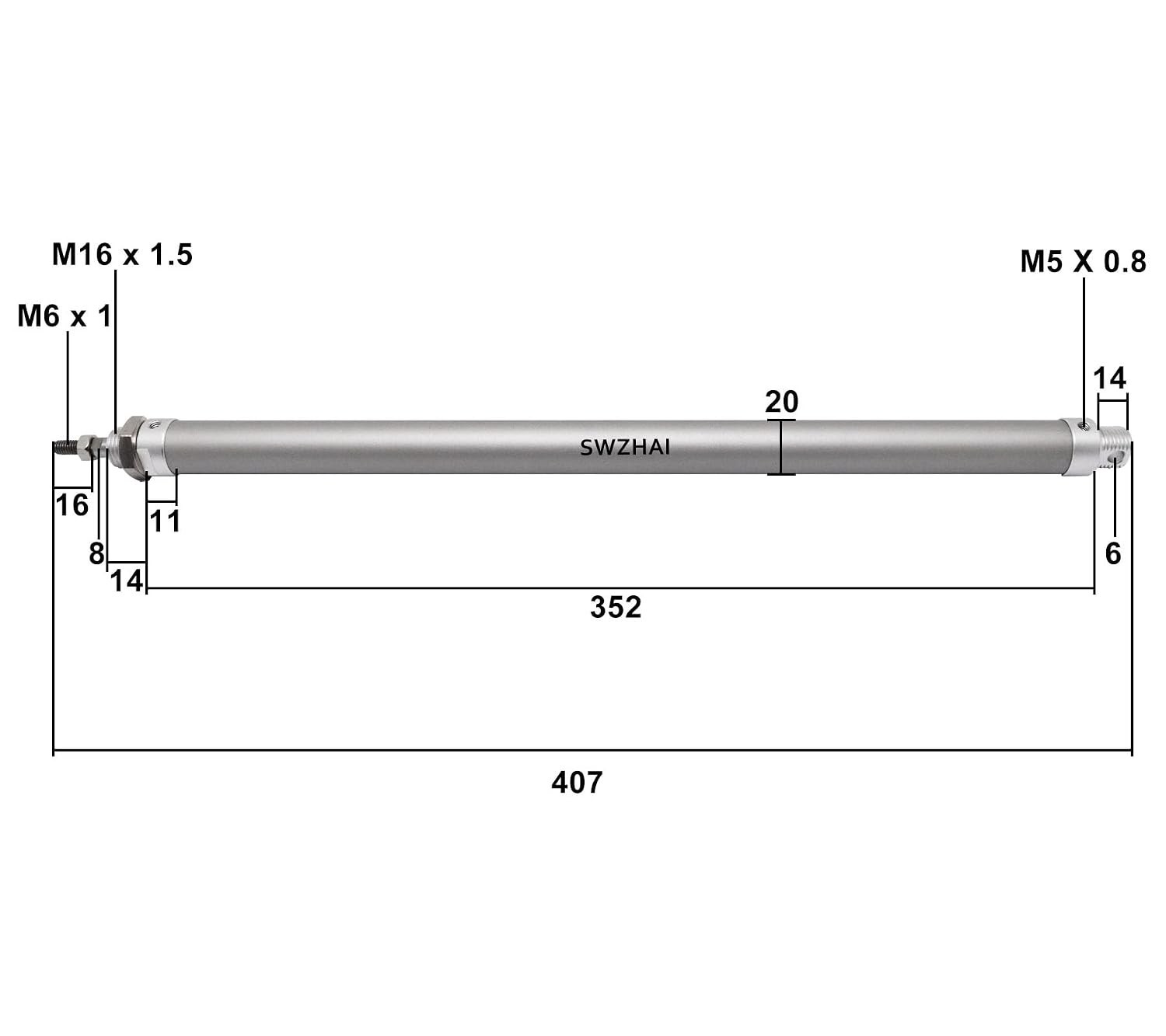

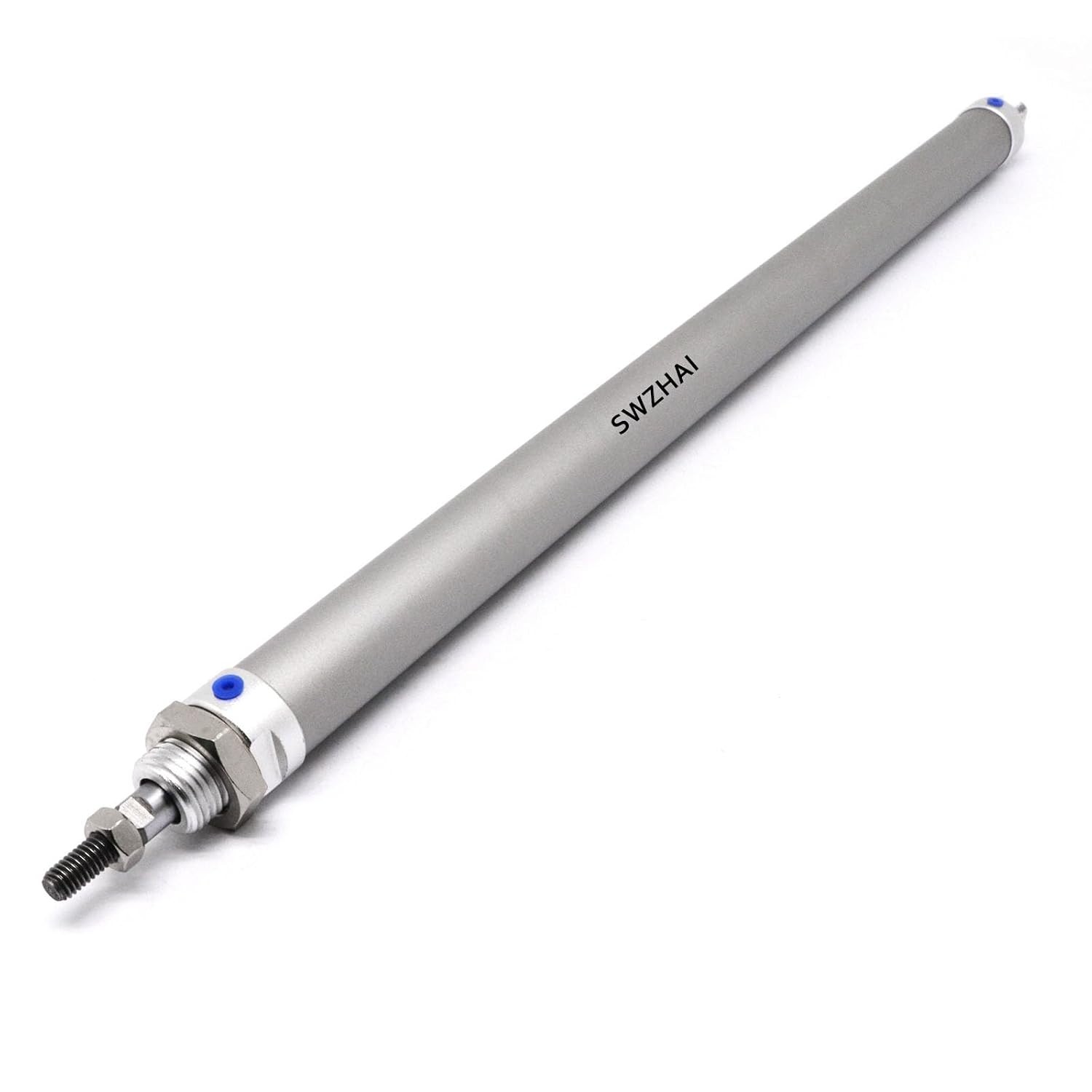

Air Cylinder 16mm Bore 300mm Stroke

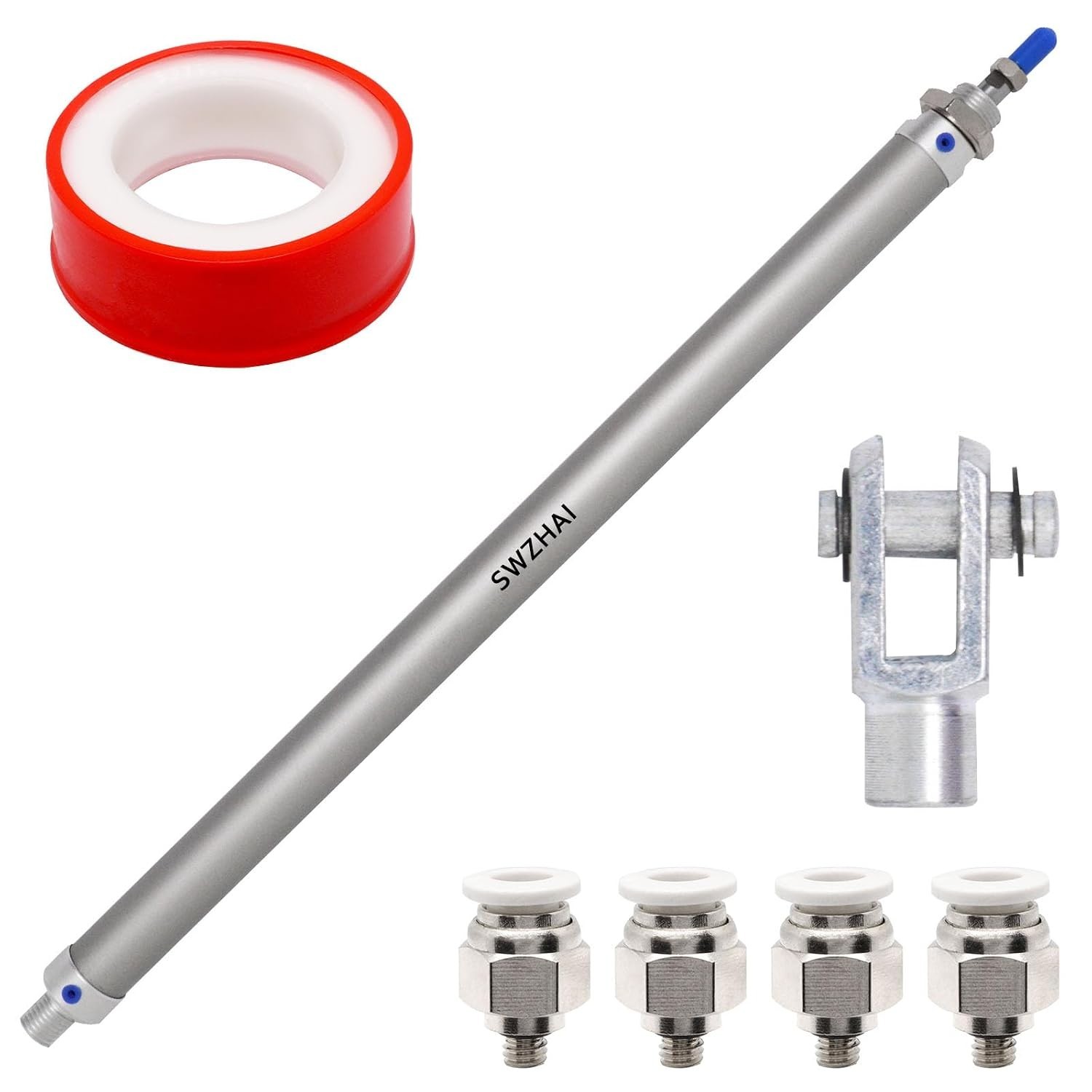

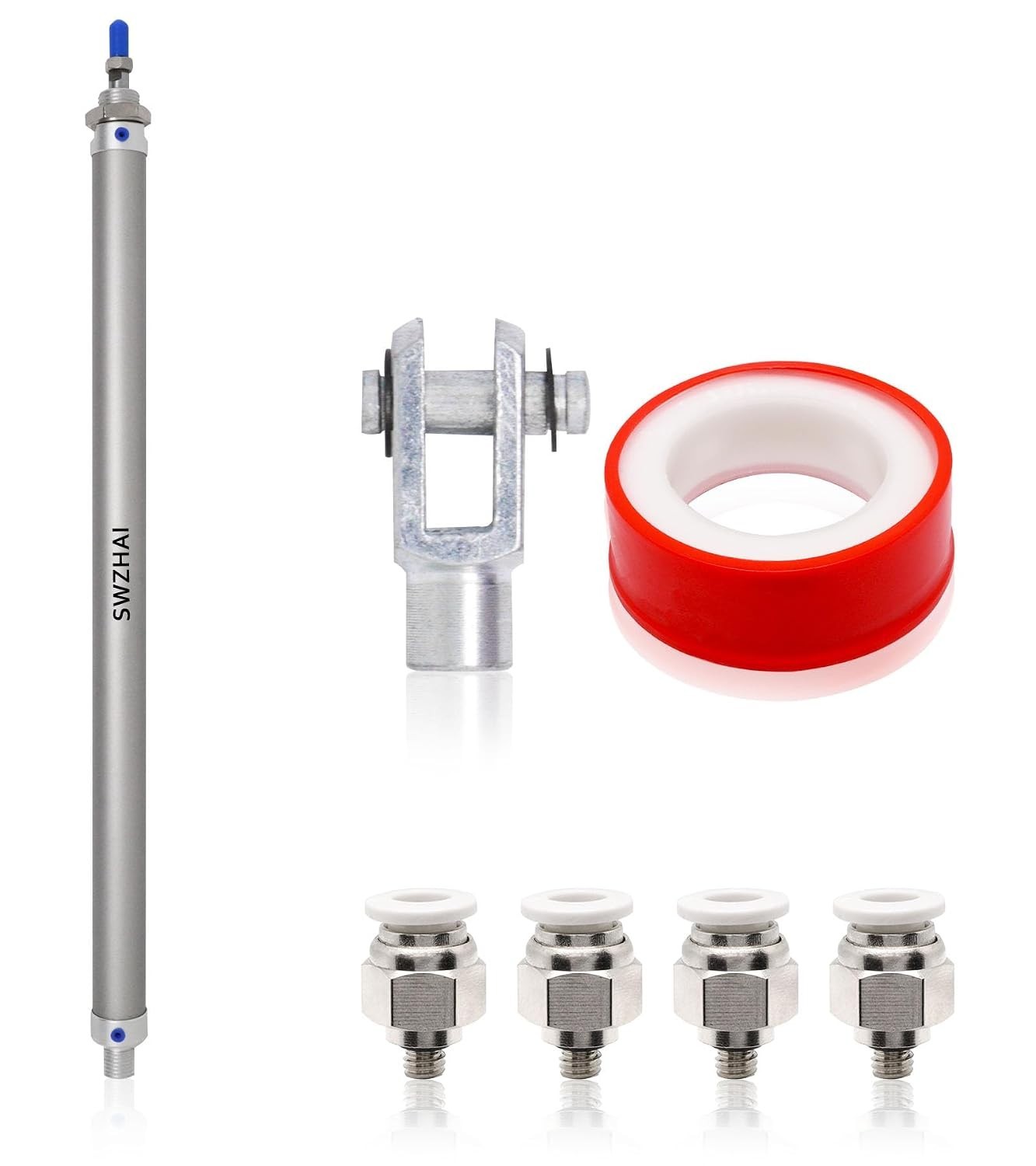

This mini pneumatic cylinder is built for responsiveness. Its aluminum alloy body goes through a hard oxidation treatment to improve wear resistance, and the guide-type bi-directional sealing design helps the piston work smoothly in both directions. The package includes a Y connector and four pneumatic quick fittings, so the basic hookup pieces arrive with the cylinder. That makes it a low-cost way to add linear motion to a small automation rig, sorting gate, or light clamping setup. The trade-off is scale: with a 16mm bore and 300mm stroke, this is not the component for lifting heavy loads or moving large fabrications. It runs on compressed air and delivers quick, small-diameter movement rather than hydraulic force. If your air supply is ready and the stroke is modest, this is the no-fuss option.
20 Quart Double Acting Hydraulic Pump 12V DC Dump Trailer Hydraulic Power Unit
This is a complete 12V DC hydraulic power unit with a 20-quart metal tank, a 1.6 kW motor, and SAE #6 ports. It's rated at 3,200 psi on port A and 1,500 psi on port B, with a flow rate up to 0.91 GPM. The package includes a 15-foot remote control pendant and two extra SAE #6 fittings, so you have the controls and replacement fittings ready. That makes it a direct, self-contained choice for a dump trailer hydraulic setup. What you give up is versatility: this is a hydraulic unit built for heavy lifting and power-up/power-down cycles, so it's overkill if you only need a small pneumatic push. It also needs a 12V DC power source and hydraulic fluid in the tank. For someone building or repairing a dump trailer, this unit aligns with the job; for light bench automation, it's the wrong tool.
Final Choice by Use Case
For fast, lightweight motion in a pneumatic system, the mini air cylinder at $28.99 is the practical buy. For lifting a dump trailer or any heavy hydraulic job, the hydraulic power unit at $240.00 is the unit that delivers the force. Match the power source to the task and the decision becomes clear.
