Choosing the right air line tubing for a pneumatic system isn't a one-size-fits-all decision. The hose has to fit your fittings, survive the temperatures around your compressor, and cover the distance between components without leaving you short. The four options in this comparison range from a compact $9.75 polyurethane coil to a 50-meter nylon tube at $380.15, so the real challenge is separating need from overbuild.
Quick take
For most light-duty shop air lines, the two PU coils below $13 give you flexible, short runs in different OD sizes. If you need a longer, vehicle-spec air brake line, the 100-foot nylon tube at $37.49 is built around DOT and SAE air brake requirements. For industrial-scale runs where you need many meters and a larger 14mm OD, the PA11-6 flexible nylon tube is the premium-long-length choice, but it carries a much higher listed price.
Listed price comparison
| Product | Listed price | Relative price |
|---|---|---|
| 100 ft 1/4" DOT Air Line | USD 37.49 | |
| Pneumatic Tubing 5/32" OD 33 ft PU | USD 12.83 | |
| 1/8" OD PU Air Brake Hose Line | USD 9.75 | |
| Polyamide PA11-6 Flexible Nylon Tube 50m | USD 380.15 |
Decision matrix
| Product | Length | OD | Material | Listed price | Best fit |
|---|---|---|---|---|---|
| 100 ft 1/4" DOT Air Line | 100 ft / 30.5m | 1/4" | Nylon | USD 37.49 | Longer air brake runs |
| 5/32" OD PU Air Line | 33 ft / 10m | 5/32" (4mm) | Polyurethane | USD 12.83 | Compact pneumatic control lines |
| 1/8" OD PU Air Line | 32.8 ft / 10m | 1/8" | Polyurethane | USD 9.75 | Small-diameter compressor lines |
| PA11-6 Flexible Nylon Tube | 50m | 14mm OD / 10mm ID | Polyamide PA11-6 | USD 380.15 | Long industrial runs |
Product notes

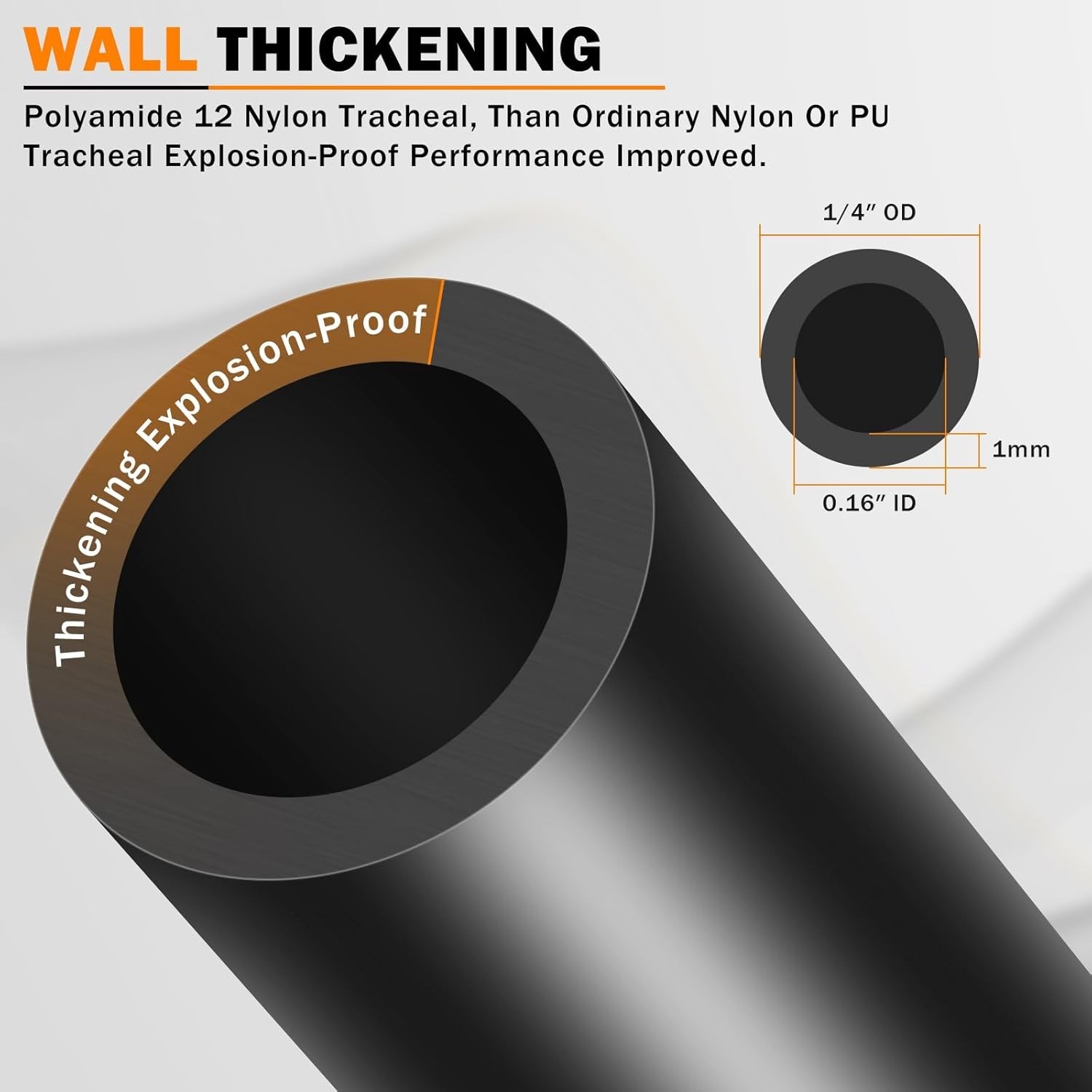

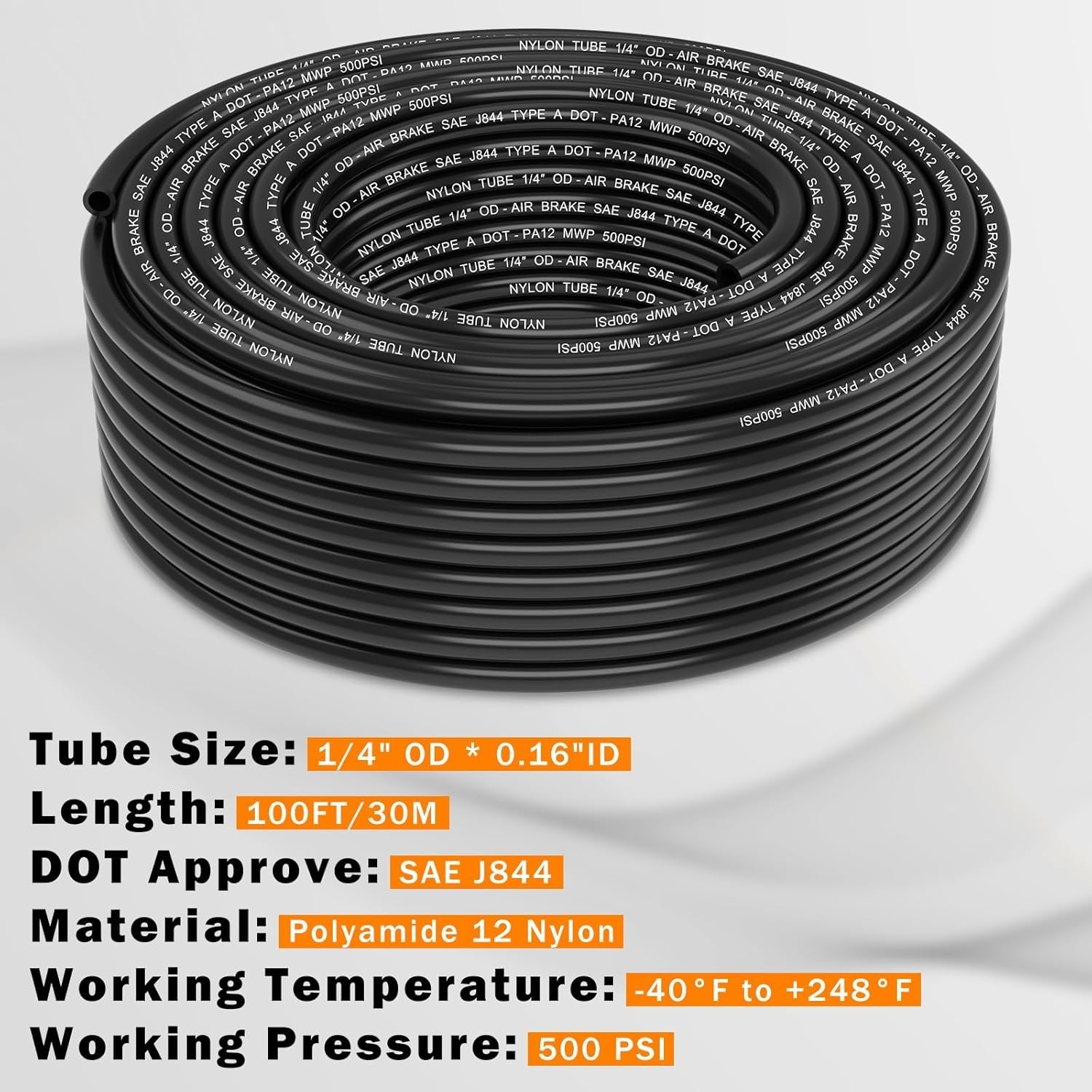

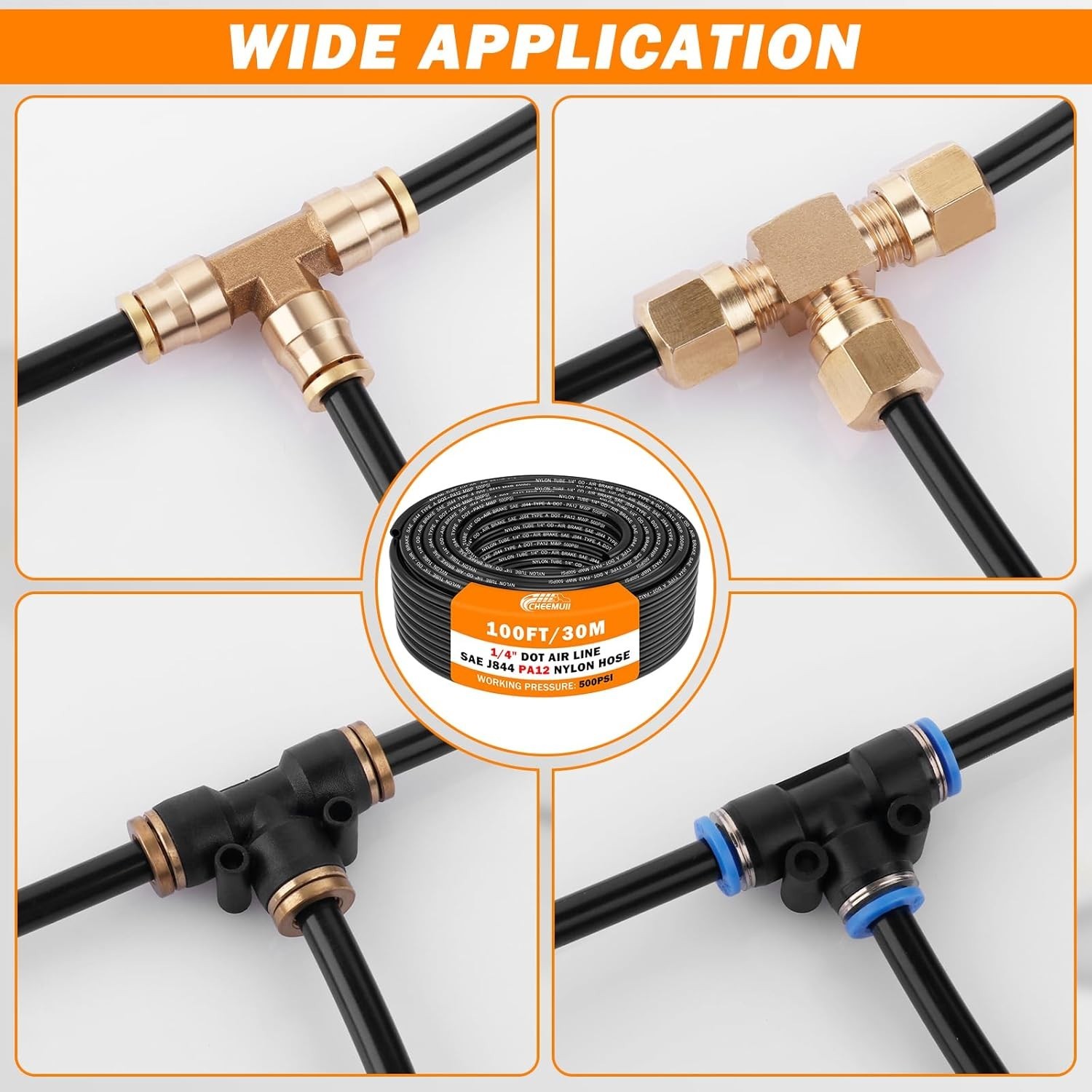

100 FT 1/4 DOT Air Line 1/4" PA12 Nylon Pneumatic Tubing 30.5 Meter 1/4 Inch OD
This 100-foot nylon air line has a 1/4-inch outside diameter and meets DOT and SAE air brake system requirements, with a working pressure range up to 500 psi and a temperature range of -40°F to +248°F. At $37.49, it is the only product here available as a full 100-foot spool, which makes it practical for a continuous long run. The trade-off is that you only get the 1/4-inch OD size, and the nylon construction suits higher-pressure air brake duty.
Pneumatic Tubing 5/32" OD 33ft 4mm OD 2.5mm ID PU Air Line Pipe Black
This 33-foot polyurethane line offers a medium-bore 4mm OD with a 2.5mm ID, pressure resistance of 10 kg, and a temperature range of -5°C to 50°C. Priced at $12.83, it fits between the budget 1/8-inch line and the long nylon options. The PU material gives it a flexible, abrasion-resistant body for pneumatic control systems, but the working temperature range is the narrowest of the four, so it's best kept on the cool side of a compressor setup.
1/8" OD Pneumatic Tubing Pipe, Black PU Air Brake Hose Line for Air Compressor F
This $9.75 tube measures 1/8 inch OD and comes in a 32.8-foot length, making it the smallest and least expensive line in the comparison. It's rated to 363 psi and has a working temperature range of -20°C to 80°C, which is a wider temperature window than the 5/32-inch PU line. Use it for small-diameter compressor air lines or short transfer runs where you need a flexible polyurethane pipe. The limit is the compact bore: it won't match the flow capacity of the 1/4-inch or 14mm tubes, so it's not the right choice for high-volume air supply.
Polyamide PA11-6 Flexible Nylon Tube Hose Pneumatic Air Line Tubing ID 2MM-17MM
This PA11-6 flexible nylon tube is the long-haul specialist: a 50-meter length with a 14mm OD and 10mm ID, priced at $380.15. The material is non-toxic and odorless, pressure resistant, and rated for -30°C to 120°C. Its large bore and long length make it suitable for industrial-scale air line runs, while a ±0.1mm dimensional tolerance is specified for consistent sizing. The cost is dramatically higher than the other three options, and the recommended setup for compressor use includes air storage tanks, coolers, and filters rather than direct hot compressor output.
Final recommendation
Choose the 100 ft 1/4" DOT Air Line when you need a single long run for air brake-style service and can use a 1/4-inch OD. Pick the 5/32" OD PU line for a flexible, medium-bore control line. Grab the 1/8" OD PU line when you want the lowest-priced, most compact option for small fittings. And choose the PA11-6 50m tube when the job demands a large bore, a long continuous length, and tolerance for higher operating temperatures.
