Quick Take
Shaft couplings connect a motor to a driven shaft while absorbing misalignment and shock, but the right one depends on shaft size, torque, and the machine you are repairing. The four options here cover very different jobs: a rear drive shaft coupling kit, a large industrial flange coupling, a jaw spider coupling for CNC stepper motors, and a steel coupling for small flexible shafts. Prices span a wide range, so the real question is not which is objectively best but which matches your shaft diameter and use case.
Price Comparison at a Glance
| Product | Listed Price | Price Bar |
|---|---|---|
| Transmission Rear Drive Shaft Coupling Kit 26330-115-0000 For Bennche 2010-2015 | USD 100.60 | |
| Industrial Flexible Shaft Coupling Flange Type Power Transmission Coupling | USD 4,000.00 | |
| 5/8" x 5/8" Flexible Jaw Spider Shaft Coupling CNC Stepper Motor Coupler 15.875 | USD 13.99 | |
| 40Cr Steel CNC Flexible Shaft Coupling Fits For 4.76mm (3/16") Flexible Shaft | USD 12.05 |
Decision Matrix
| Product | Best For | Key Strengths | Watch Out For |
|---|---|---|---|
| Transmission Rear Drive Shaft Coupling Kit | Direct replacement on Bennche 2010-2015 rear drive shafts | Includes multiple part numbers and a one-year manufacturer warranty | Application-specific; second-highest price in the group |
| Industrial Flexible Shaft Coupling | Large industrial power transmission | Keyway bore, shaft-mounted, multiple bolts, flexible type | New open box and far more expensive than the other options |
| 5/8" x 5/8" Jaw Spider Coupling | CNC stepper motor and matching shaft sizes | Aluminum/polyurethane design with interlocking jaws | Fixed bore size |
| 40Cr Steel CNC Flexible Coupling | Small flexible shaft applications | CNC-machined, 42mm long, negative-tolerance bore | May need heating to install on the shaft |
Product Notes

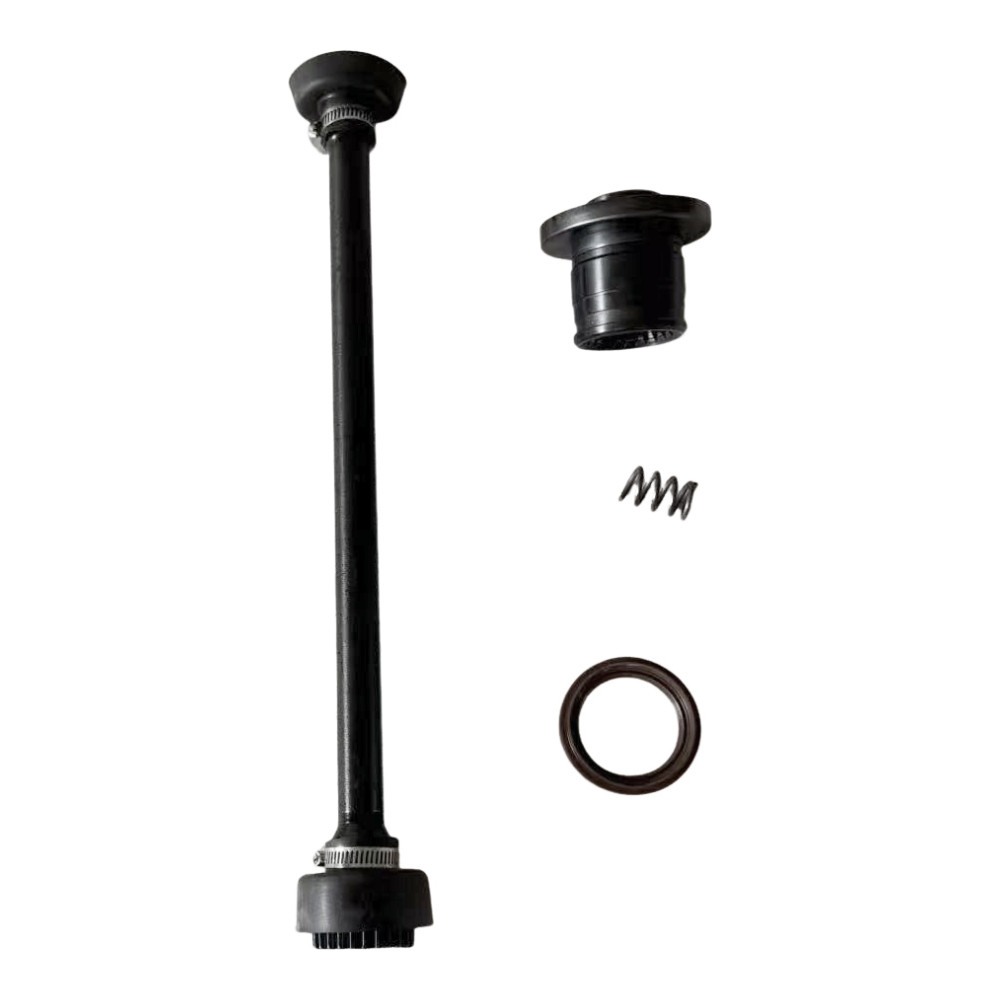

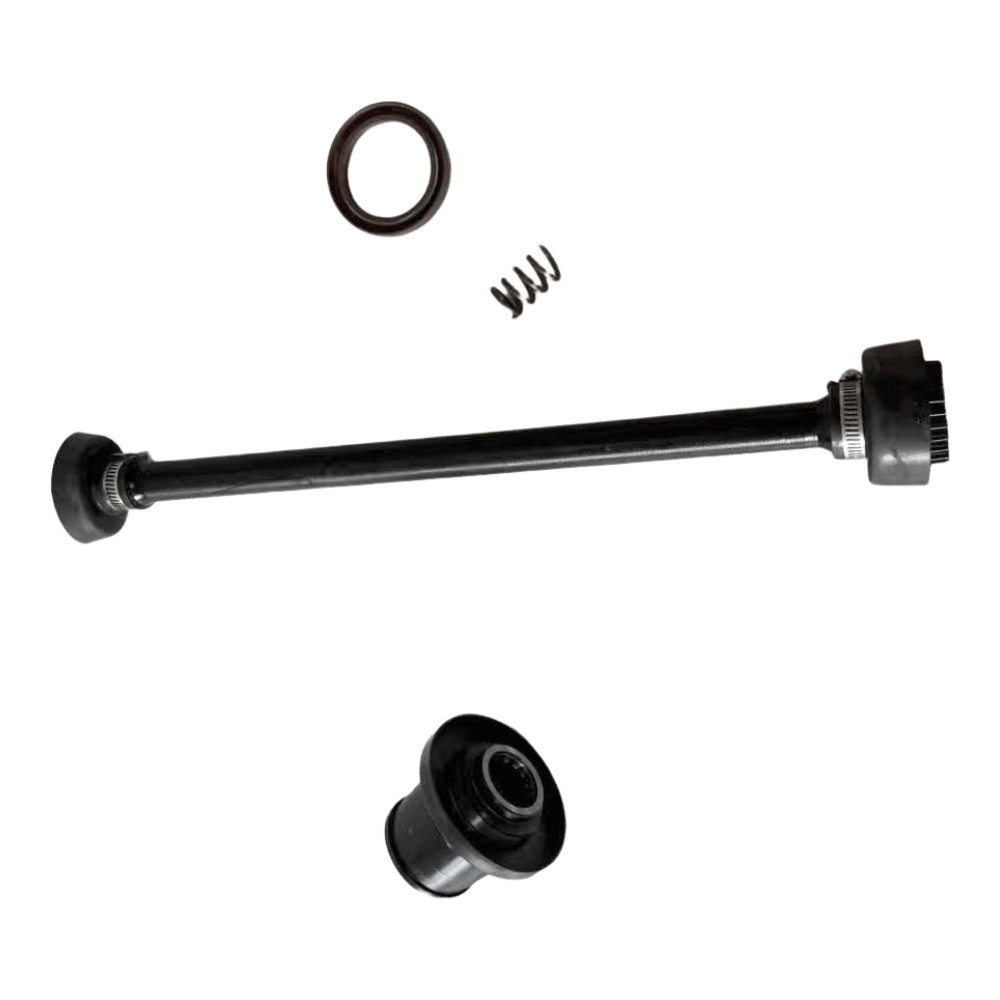

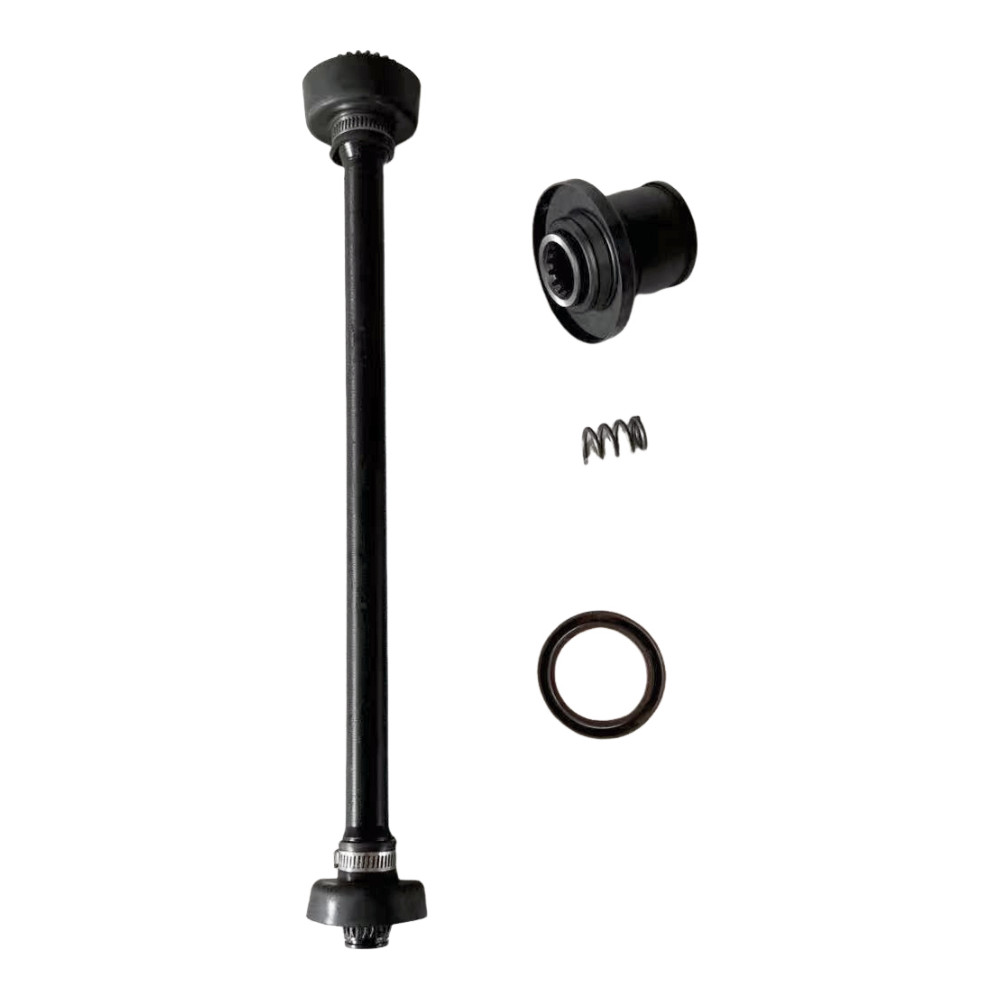

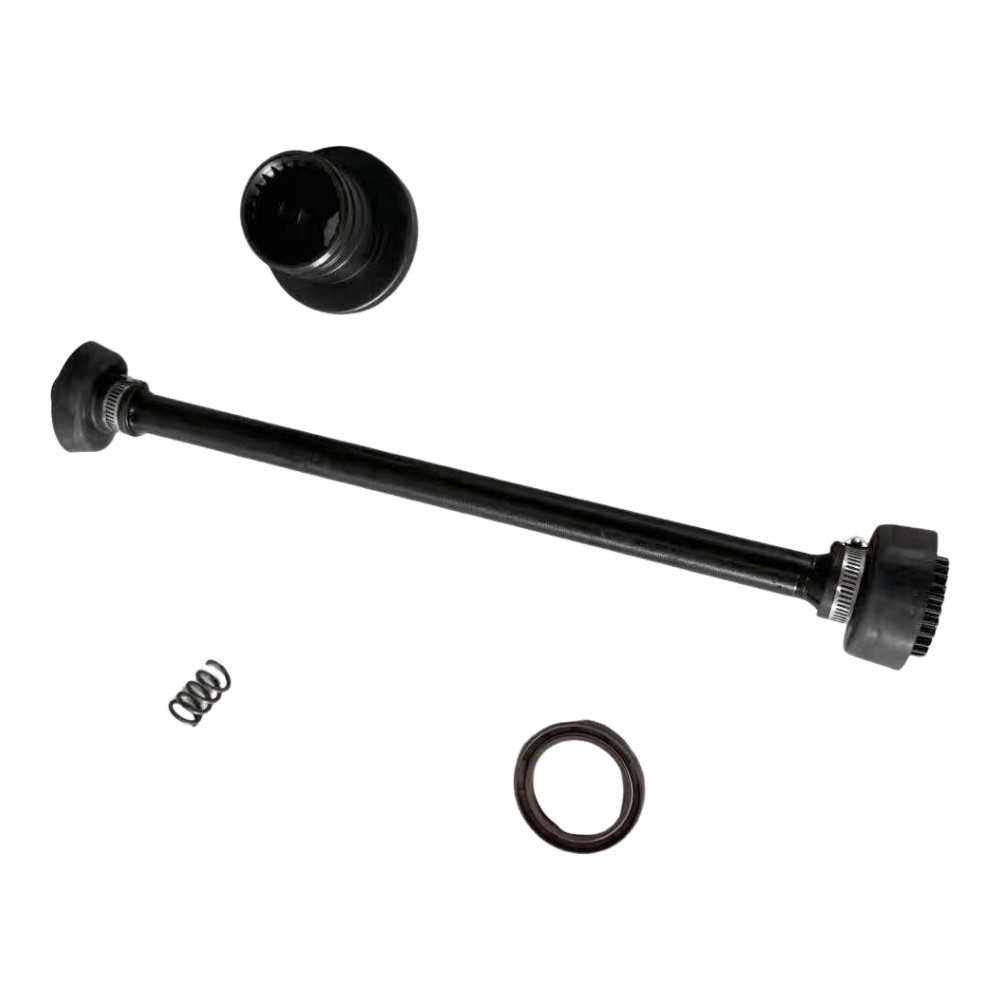

Transmission Rear Drive Shaft Coupling Kit 26330-115-0000 For Bennche 2010-2015
This kit is the only option here positioned as a vehicle-specific drive shaft coupling. The part numbers cover Bennche 2010-2015 plus comparable part numbers for Coleman Powersports, Hisun Motors, Massimo, Qlink, and Supermach, so it suits UTV or side-by-side rear drive shafts rather than tiny motor shafts. Choose it if you are doing a rear drive shaft repair and want a component with a one-year manufacturer warranty. The limitation is that it is not a generic coupling: at USD 100.60, it is the second-highest price in the group, and you need to confirm your vehicle uses this exact part series.

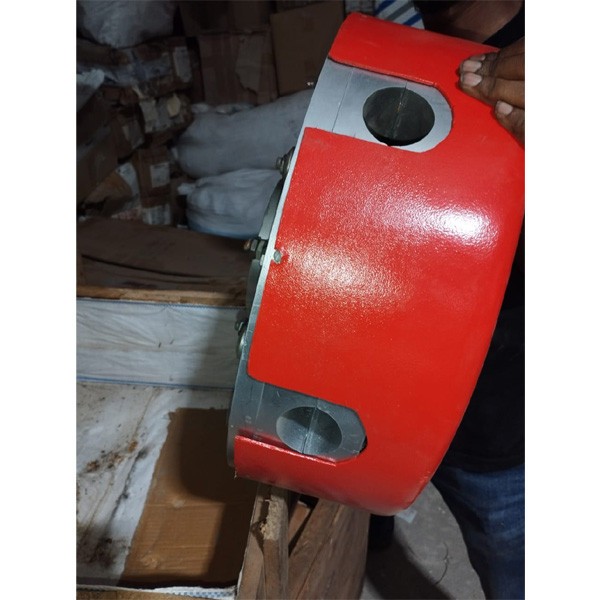

Industrial Flexible Shaft Coupling Flange Type Power Transmission Coupling
This flange-type flexible coupling is the heavy-duty entry in the lineup. It is new open box, with a keyway bore, shaft-mounted configuration, and multiple bolts, which makes sense for larger industrial power transmission applications where misalignment and torque need to be absorbed. The keyway bore design supports precise alignment and smooth operation, and the flexible coupling type handles the kind of loads a small stepper coupler cannot. The trade-off is obvious: at USD 4,000.00, it is by far the most expensive option, and the open-box condition means the package has been opened. This is not a casual CNC experiment.
5/8" x 5/8" Flexible Jaw Spider Shaft Coupling CNC Stepper Motor Coupler 15.875
This is a solid choice for stepper motor and light shaft connections. The three-piece design uses two aluminum clamp hubs and a polyurethane spider, and the jaws interlock if the spider wears out, keeping the shafts connected for a safe shutdown. That fail-safe behavior plus a 5/8" x 5/8" bore makes it a practical, low-cost option for CNC machines or other small motor couplings. The 15.875 in the title corresponds to the 5/8-inch bore in millimeters, and the unit is new, made in the United States, and carries the part number 100366. The limitation is the fixed bore size: you need 5/8" shafts on both sides, and at USD 13.99 it is still a small coupling that won't handle heavy industrial loads.
40Cr Steel CNC Flexible Shaft Coupling Fits For 4.76mm (3/16") Flexible Shaft
For very small shafts, this 40Cr steel coupling is the lowest-priced option at USD 12.05. It is CNC-machined, 42mm long, and designed to fit a 4.76mm (3/16") flexible shaft, with a bore that is intentionally 0.02mm smaller than the stated diameter for a tighter grip. That negative tolerance is a real advantage if you want to avoid setscrew slip, but it also means you may need to heat the coupling to 200-300°C to get it onto the shaft. The 42mm length gives plenty of grip surface for a small shaft, and the CNC machining keeps the geometry tight. Choose it for small high-torque brushless motors or similar miniature connections, and be prepared for a hot installation.
Final Recommendation by Use Case
- If you are repairing a Bennche rear drive shaft, the Transmission Rear Drive Shaft Coupling Kit is the purpose-built option.
- If you are connecting the shafts on a CNC stepper motor, the jaw spider coupling is the most direct fit.
- If you are working with a small flexible shaft and want the lowest-priced steel coupler, the 40Cr Steel CNC Flexible Shaft Coupling is the match.
- If you need a large, shaft-mounted flexible coupling for industrial power transmission, the Flange Type coupling is the one to consider, despite its high price and open-box condition.
