Need to connect a motor shaft to a threaded rod or a ball screw? You'll face a straight choice between a steel coupling kit and an aluminium flanged coupling. In the bearings, couplings, and power transmission space, these two couplers serve very different needs: one stocks your shop for multiple DIY builds, the other is made for a dedicated motion-control axis. That tension between buying in bulk and buying for one specific job is what drives most coupling purchases.
For a versatile supply of couplers across several projects, the steel rigid shaft coupling kit is the more practical option. For a high-performance connection on a dedicated axis, the aluminium flanged coupling is the smarter buy. Neither is wrong; it's about matching the coupler to the job.
| Product | Price | Material | Bore Diameter | Quantity | Best For |
|---|---|---|---|---|---|
| Steel Rigid Shaft Coupling Kit | $34.59 | 45# Steel | 3-12 mm | 20 pieces | Multi-shaft DIY builds |
| Aluminium Flanged Coupling | $1.99 | Aluminium | 5-10 mm | 1 piece | Single precision connection |
The steel kit shines when you have a handful of shafts to connect across different machines. Its single-piece clamp design makes installation quick, and the steel body is suited for everyday motor-to-rod connections in 3D printers, model cars, model boats, and model airplanes. Because it comes as a set, you won't need to order individual couplings for each new build. If you're building a workshop from scratch, the steel kit gives you a foundation of connectors to draw from.
The aluminium coupling is designed for applications where accuracy matters more than volume. It offers backlash-free synchronization and high torsional rigidity, which are exactly what you need between a servo motor and a ball screw in a CNC system. For an axis on a lathe, grinder, or engraving machine, this coupling delivers the positioning accuracy you're after. The compact 20mm outer diameter and 25mm length make it easy to fit into tight spaces on a machine axis.
Steel Rigid Shaft Coupling Kit
This kit includes 20 steel couplings with a listed bore diameter of 10mm and a bore range of 3-12mm. The 45# steel body has a silver finish and uses M4 set screws with a single-piece clamp design for easy installation. It's built to connect motor shafts to fully threaded rods in 3D printers, model cars, model boats, and model airplanes. At $34.59, you get enough couplers for multiple builds, and the per-piece cost works out to about $1.73. The trade-off is that a rigid coupling like this does not allow eccentricity, so you must align your shafts properly during setup. Having 20 pieces means you'll have replacements ready if a coupler wears out.
Aluminium Flanged Coupling

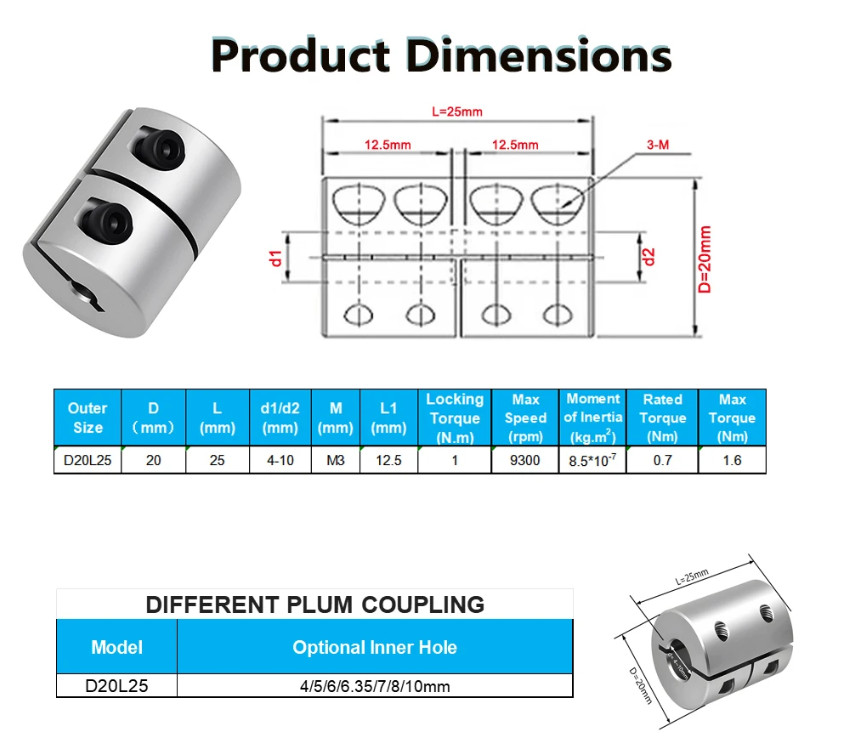

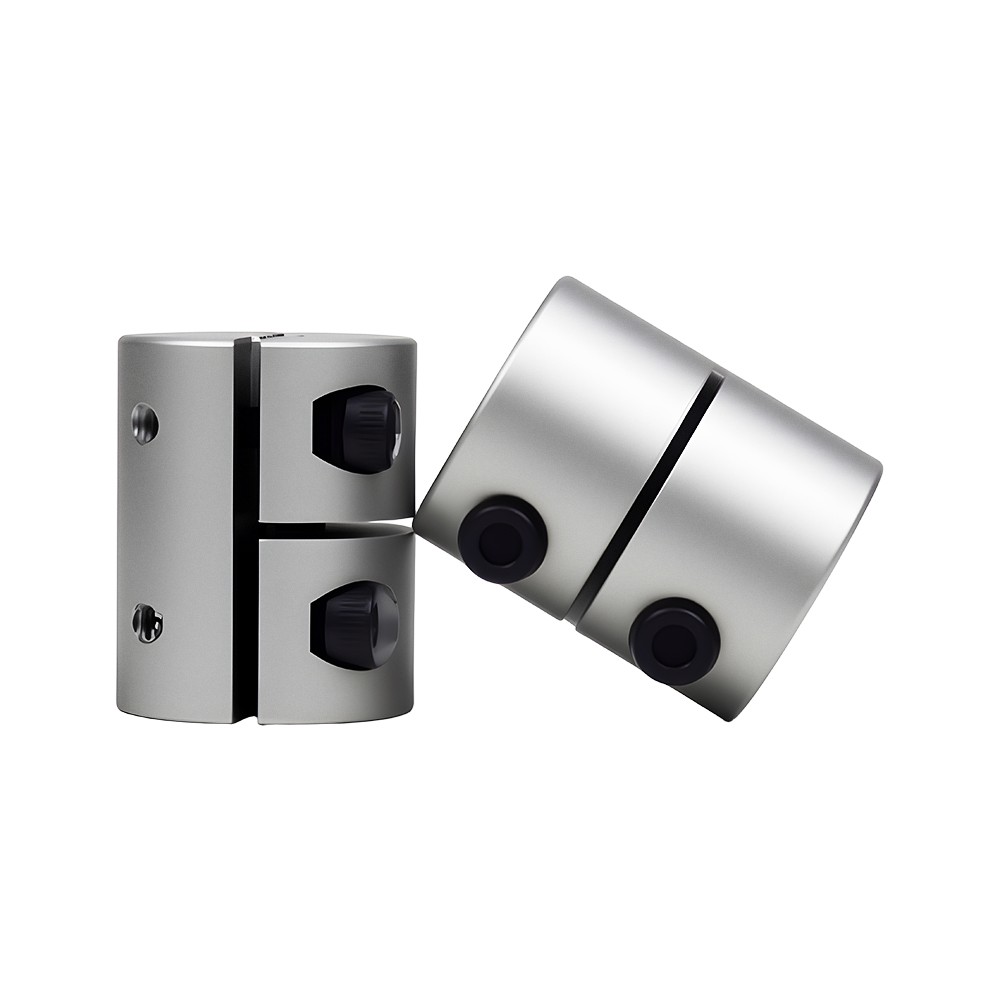

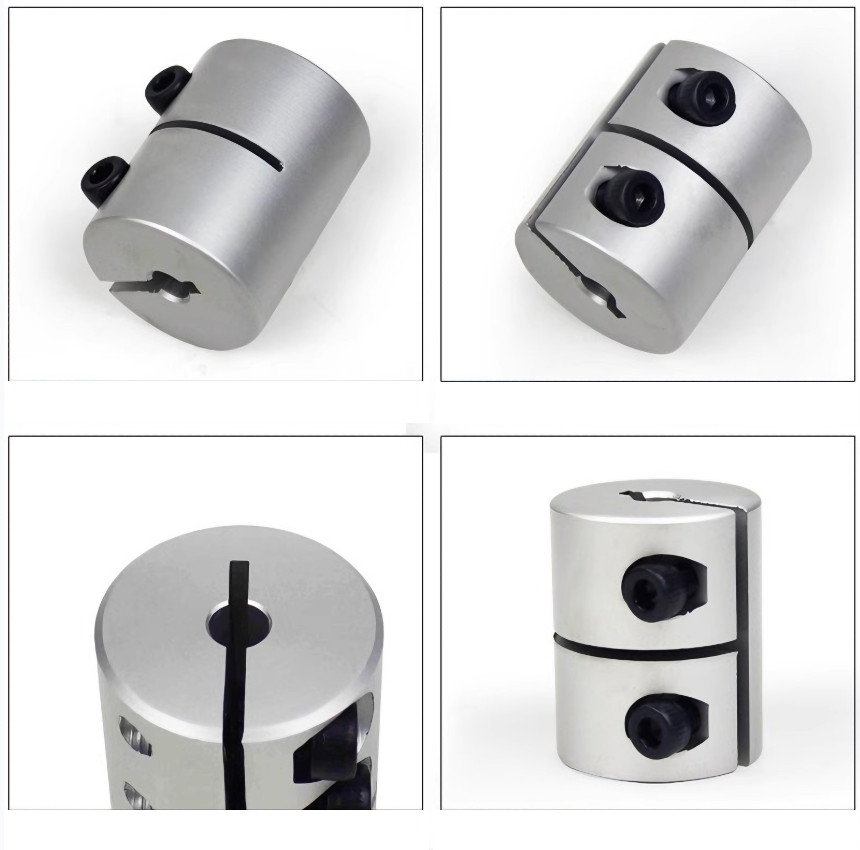

This single aluminium coupling has a 20mm outer diameter, 25mm length, and an inner diameter range of 6.35-10mm, with a 5-10mm bore span. It offers backlash-free synchronization and exceptionally high torsional rigidity, making it well suited for servo motors, stepper motors, and ball screws in CNC systems. At $1.99, this is a low-cost way to get one precision-oriented rigid connection without investing in a multi-pack. The obvious limitation is that it's sold as a single unit, so you'll need to buy more than one if your project has multiple axes. The aluminium body is a different material choice from the steel kit. This makes it a good candidate for a single-axis upgrade on a CNC router or mill.
In practice, the choice is clear. For a workshop with multiple motors and rods to connect, the steel kit is the stronger all-rounder. For an application that demands accuracy, the aluminium coupling is the more direct solution.
