Choosing hydraulic hose fittings comes down to matching the hose end, thread type, and port on the component you are connecting. The four packs here cover different connection jobs: replacing hose ends, adding a crimp-on male end, making a right-angle turn, or changing from one thread type to another. Knowing which side of the fitting connects to the hose and which side connects to the port is the main decision.
Quick take
Listed prices for these four packs span $18.99 to $47.14. The right-angle elbow pack sits at the lower end, while the crimp set sits at the higher end. In between, the swivel hose-end set and the thread-adapter pack cover two different connection jobs.
Listed price comparison
| Fitting pack | Listed price | Price bar |
|---|---|---|
| 12x Hydraulic Fittings 1/4" I.D. Hose x 1/4" JIC 37° Female w/ Protection Cover | USD 30.99 | |
| 10-Pack 3/4" Hose x 3/4" Male JIC Hydraulic Fittings, Carbon Steel | USD 47.14 | |
| 5Pack 90 Degree Elbow Hydraulic Fittings: 3/8" JIC 37° Male x #8 SAE/ORB Male | USD 18.99 | |
| Pack of 10 Hydraulic Hose Adapter Fittings: 3/4" JIC 37° Male x 1/2" NPT Male | USD 28.99 |
Decision matrix
| If you need... | Consider... |
|---|---|
| A full set of swivel hose ends | The female swivel set |
| A crimp-on male-end set for larger hose connections | The Haichy crimp set |
| A right-angle adapter between two different male end types | The Racewill elbow |
| A straight adapter for changing thread types | The Racewill adapter |
Product notes
12x Hydraulic Fittings 1/4" I.D. Hose x 1/4" JIC 37° Female w/ Protection Cover
Need to replace several hose ends on small-bore lines? This 12-piece set is the only pack here that centers on 1/4-inch female JIC 37-degree swivel ends, and it comes with a protection cover on each fitting. The straight swivel design helps keep the connection stable while letting the female end rotate for alignment. That makes it a good fit for building or repairing multiple 1/4-inch hose assemblies. The limitation is the single size: every fitting is a 1/4-inch female JIC swivel, so if your system uses male ends or a different hose diameter, you will need additional adapters to complete the hookup.
10-Pack 3/4" Hose x 3/4" Male JIC Hydraulic Fittings, Carbon Steel
Haichy's 10-pack is built for 3/4-inch hose with 3/4-inch male JIC ends, and the fixed solid male design reduces hose torsion and makes installation more straightforward. The carbon steel body, zinc-plated surface, and crimp-on construction suit it as a replacement for standard hydraulic hose assemblies. Choose it when you want a larger-diameter male JIC connection and a ten-piece supply. The trade-off is that every fitting is 3/4-inch JIC male, so it will not cover smaller lines or female connections; those setups will need another fitting type.

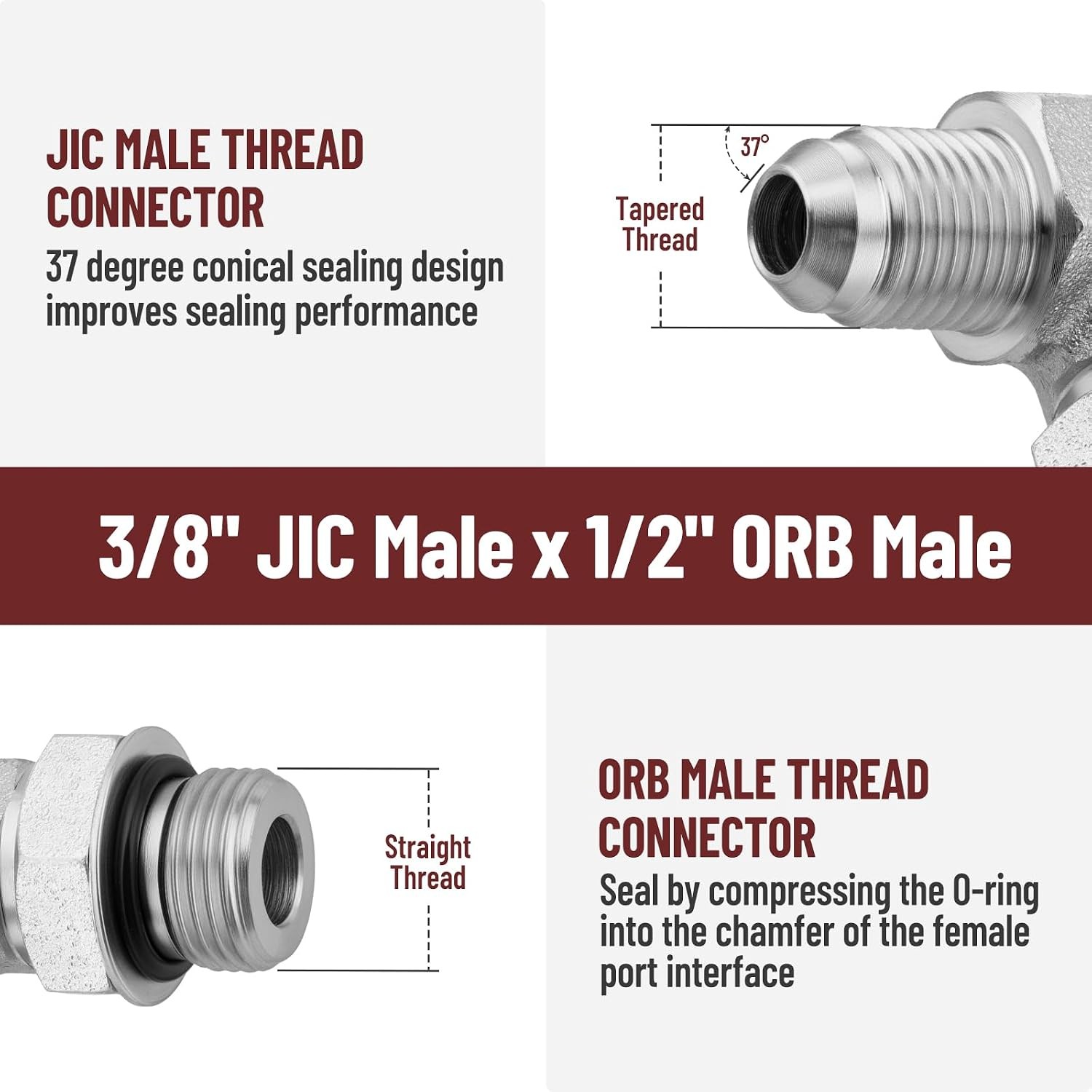

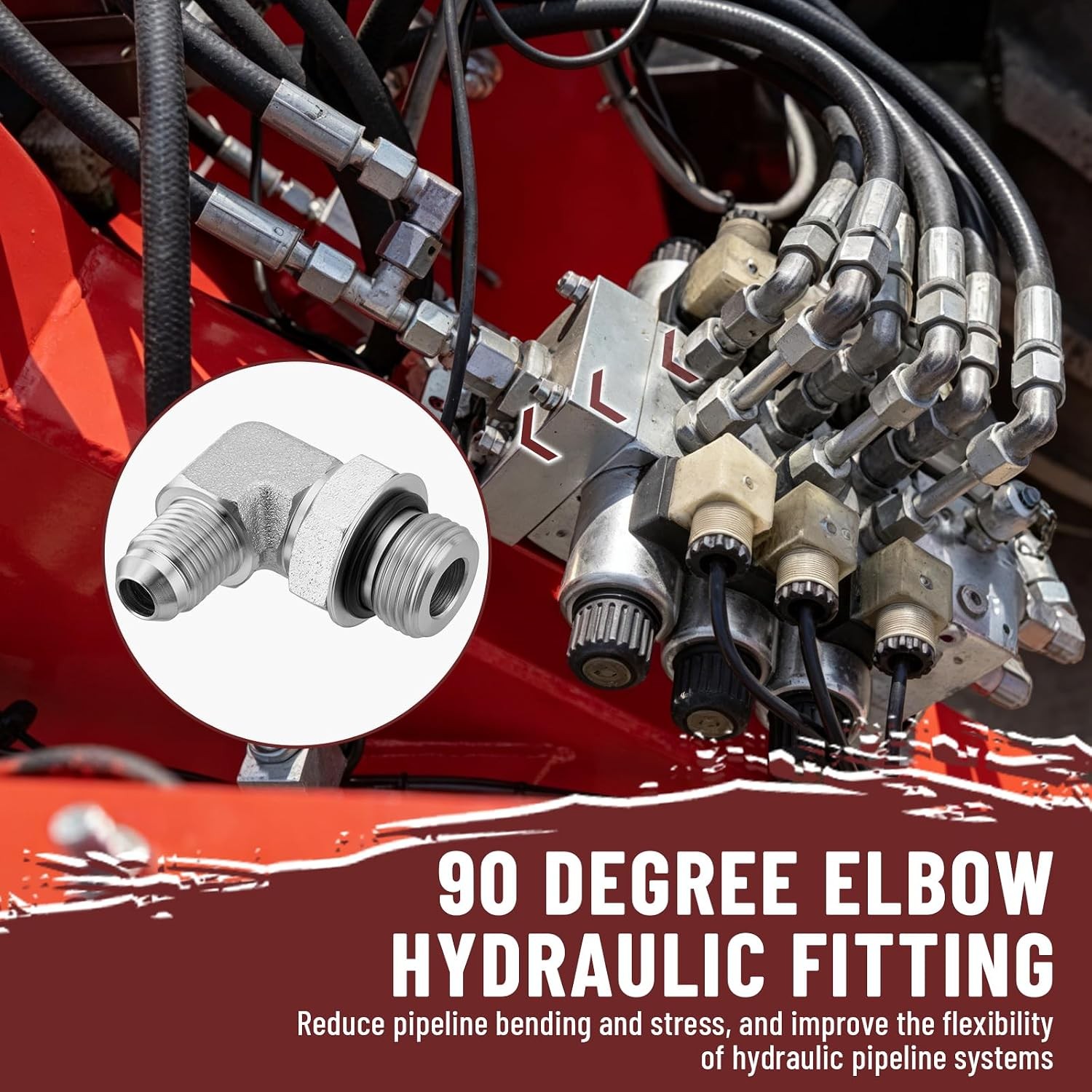

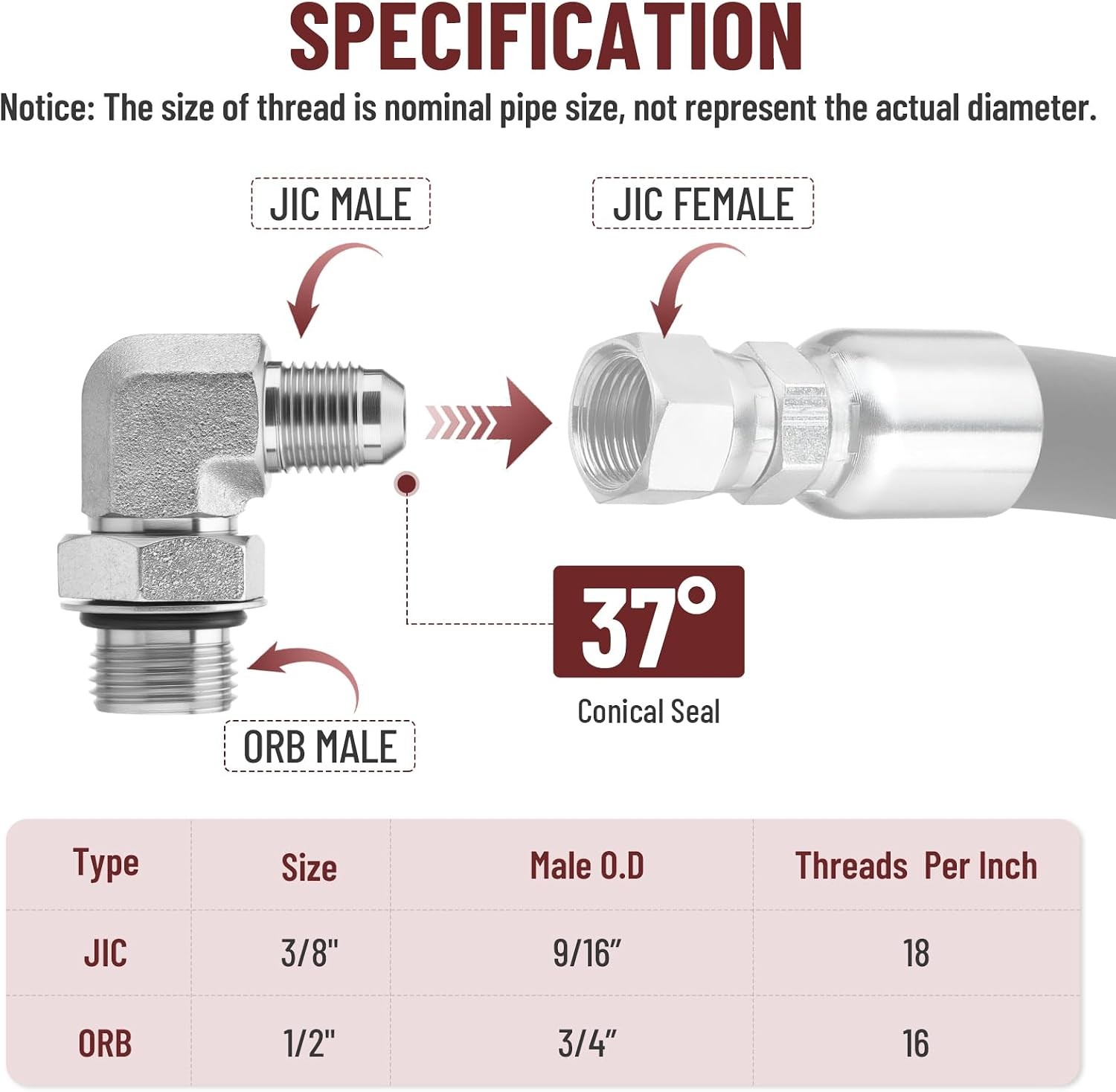

5Pack 90 Degree Elbow Hydraulic Fittings: 3/8" JIC 37° Male x #8 SAE/ORB Male

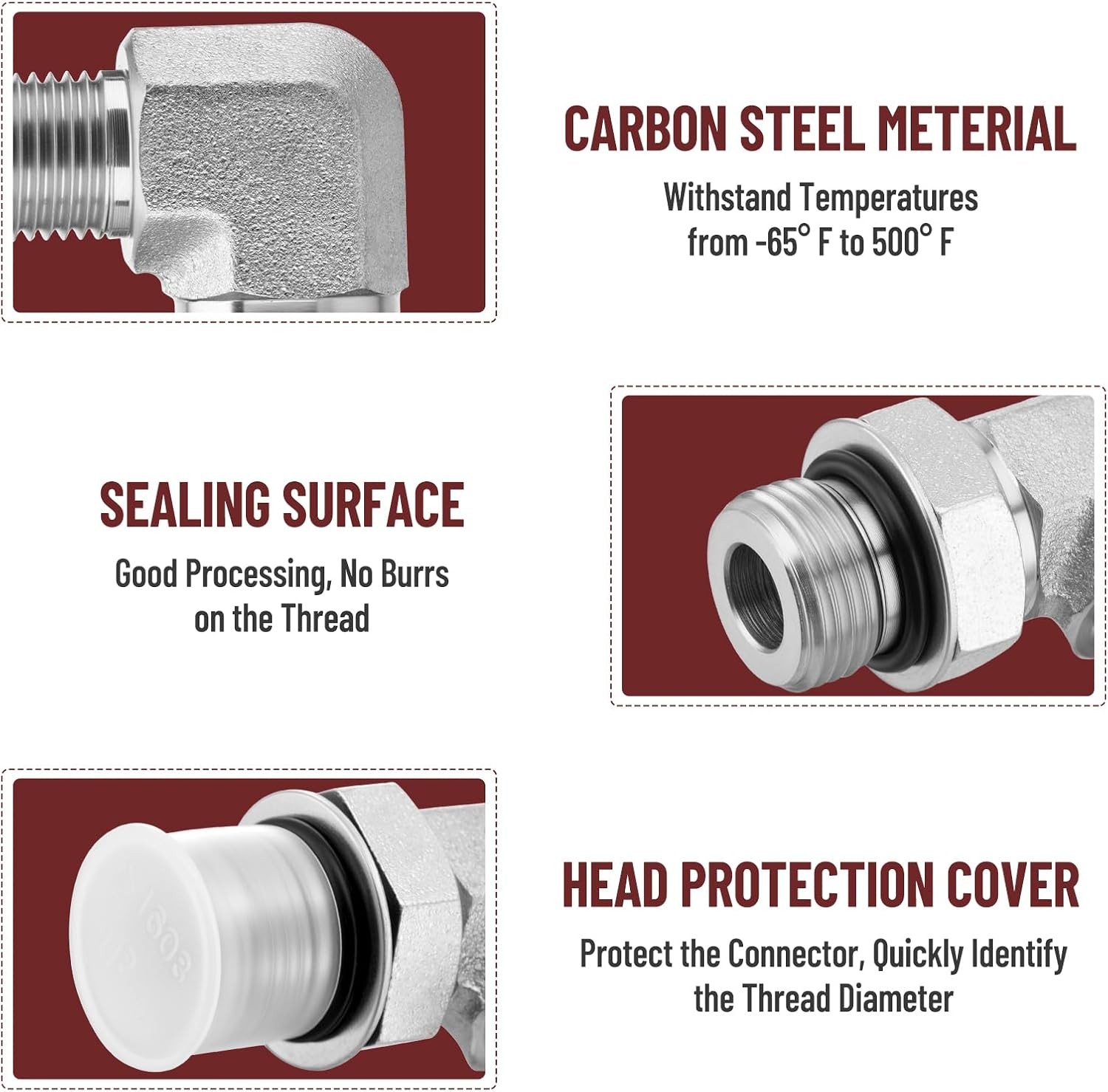

Racewill's elbow is the only 90-degree fitting in this group, which matters when a straight adapter would kink the hose or force a tight bend. The 5-pack combines a 3/8-inch JIC 37-degree male end with a #8 SAE/ORB male end, and protection covers are included to keep the threads clean. The carbon steel construction resists high temperature, high pressure, and corrosion. The limitation is the mixed thread pairing: the ORB side needs an O-ring boss port, and you only get five pieces, so plan for the quantity before committing to a larger plumbing job.
Pack of 10 Hydraulic Hose Adapter Fittings: 3/4" JIC 37° Male x 1/2" NPT Male
This Racewill set is the straight adapter pick, with a 3/4-inch JIC 37-degree male end on one side and a 1/2-inch NPT male end on the other, so it bridges JIC hose connections and NPT ports. The carbon steel body resists high temperature, high pressure, and corrosion, and the straight design makes the connection easy to line up. Choose it when your component port is NPT but your hose side is JIC. Just remember both ends are male, so you need female JIC and female NPT connections, and the 3/4-inch JIC sizing will not work on smaller hose lines.
Final recommendation by use case
For small-bore replacements, the full female swivel set gives you the most ends at once. For larger hose-to-port plumbing, the crimp pack is the top-priced choice. If space is tight and a line has to turn, the Racewill elbow is the only angled option. If you need to join a hose side to a pipe-thread port, the Racewill adapter is the straight converter. Keep the exact hose I.D. and port type for each side in mind before ordering.
