Choosing an industrial motor is rarely just about horsepower. The motor has to match the voltage you have available, the mounting footprint on your equipment, and the duty cycle you're asking it to handle. Two new motors illustrate this tension: a foot-mounted WEG W22 and a compact 56C-frame motor, priced at $279.96 and $175.10 respectively. The price spread between them is about 37%, but the real differentiators are voltage, mounting, and intended duty.
Quick verdict: For a motor with farm/agriculture duty, the WEG W22 is the more straightforward choice. For a compact motor with dual-voltage input and more horsepower, the 56C motor is the practical pick.
| Feature | WEG W22 575V 1 HP | 56C TEFC 230/460V 2 HP |
|---|---|---|
| Price | USD 279.96 | USD 175.10 |
| Horsepower | 1 HP | 2 HP |
| Input Voltage | 575V | 230/460V |
| Frame | NEMA 143/5T | 56C |
| Mounting | Foot-mounted | C-face with removable base |
| Enclosure | TEFC | TEFC |
| Frequency | 60 Hz | 60 Hz |
| Motor Type | Farm/Agriculture Duty | Heavy Duty |
Where each product wins:
- WEG W22 wins on: a NEMA 143/5T footprint, 1200 RPM farm/agriculture work, and IP55 protection.
- 56C motor wins on: dual-voltage input, more horsepower, C-face mounting, inverter-rated flexibility, and the lower price.
WEG 00112ET3H145T 575V 1 HP W22 NEMA Foot-Mounted Industrial Electric Motor
The WEG W22 is a 575V, 60 Hz, 1 HP motor with a 6-pole design and 1200 RPM output. The 6-pole design means slower shaft speed, which is often preferred for augers, mixers, and conveyors in farm settings. Its TEFC enclosure and IP55 protection make it suitable for dusty, outdoor, or farm environments, and it's designated as a farm/agriculture duty motor. The foot-mounted NEMA 143/5T frame fits equipment built around that classic industrial footprint. This motor is a sensible pick when your facility already runs on 575V three-phase and you need a direct electrical match. One limitation is that it carries the higher of the two prices: you're paying for specific voltage and mounting characteristics, not extra horsepower. If your supply isn't 575V, this motor won't run, so check the tag before you commit.

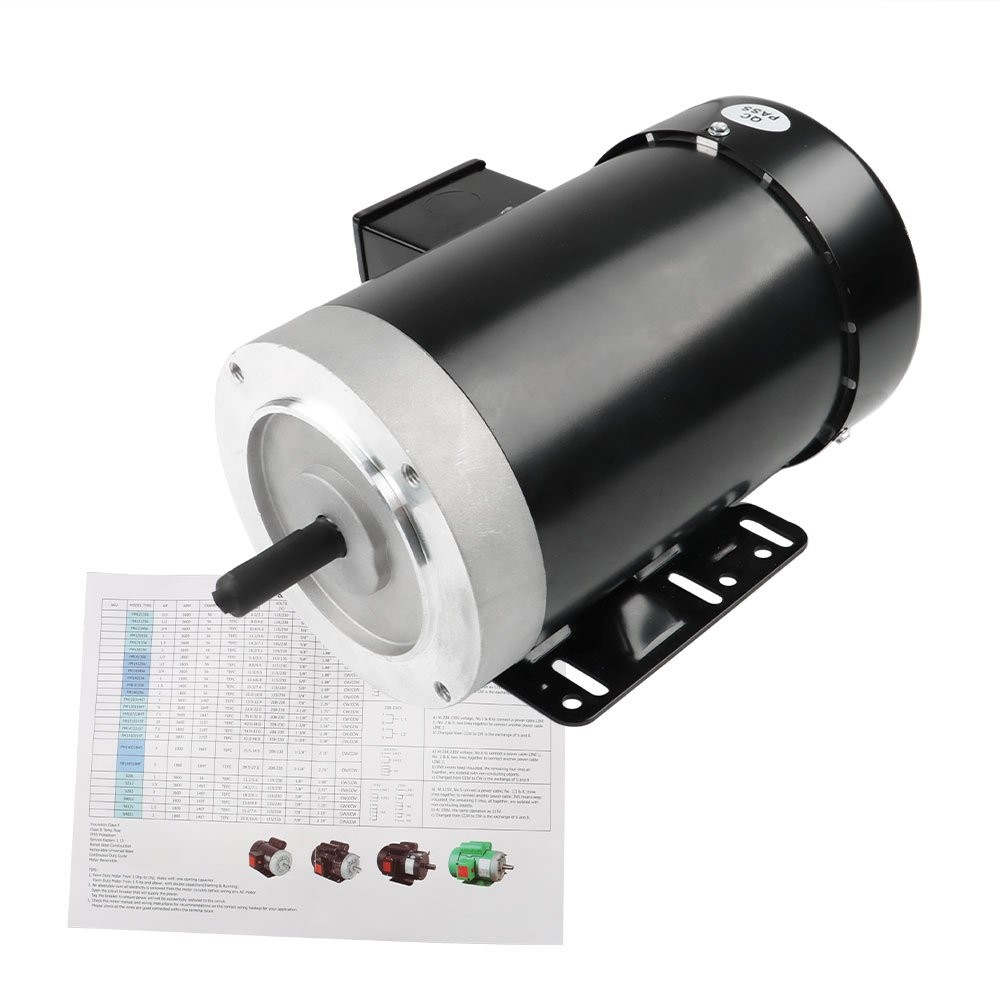

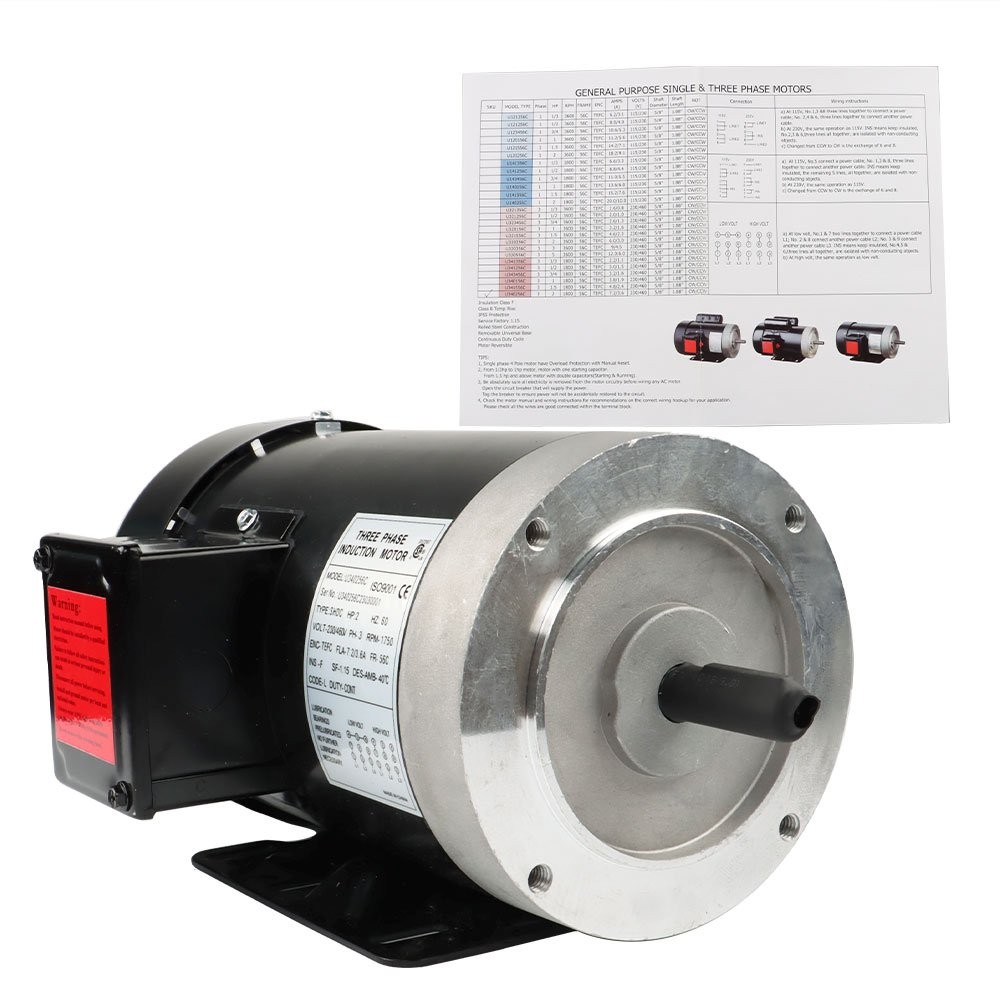

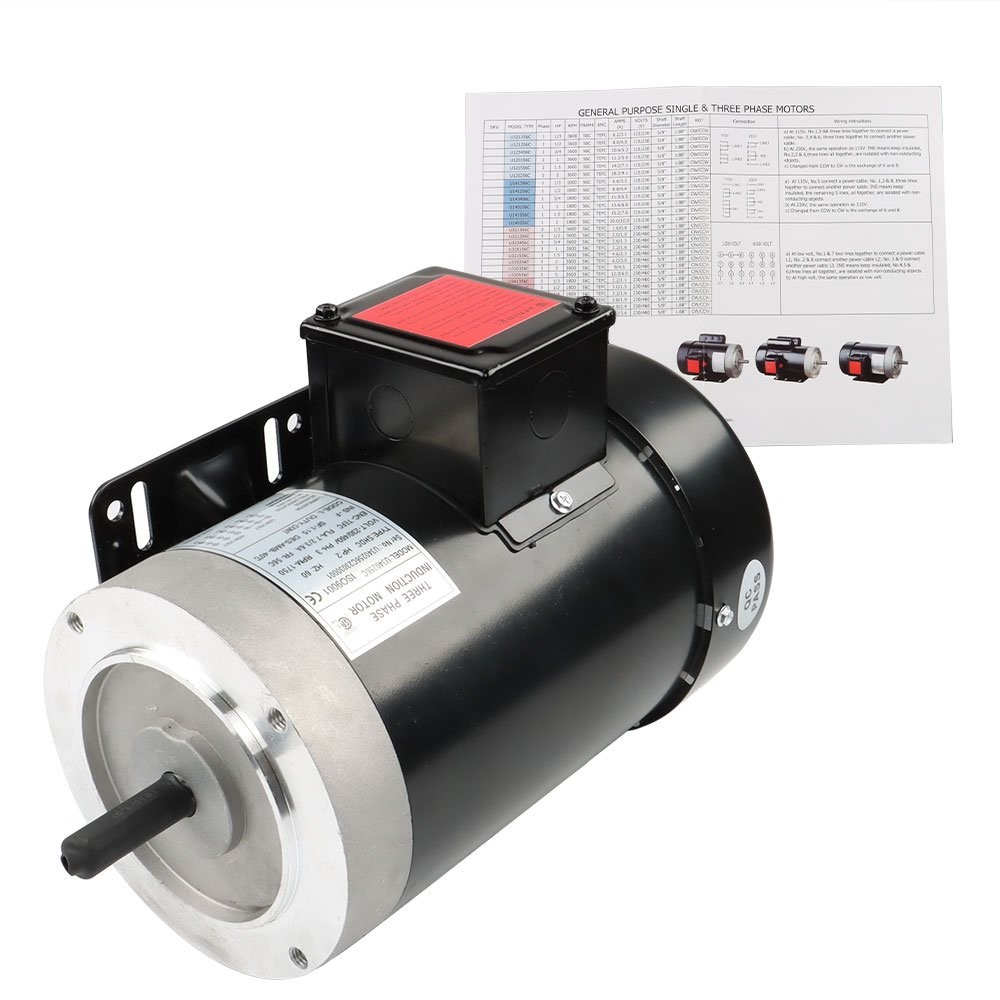

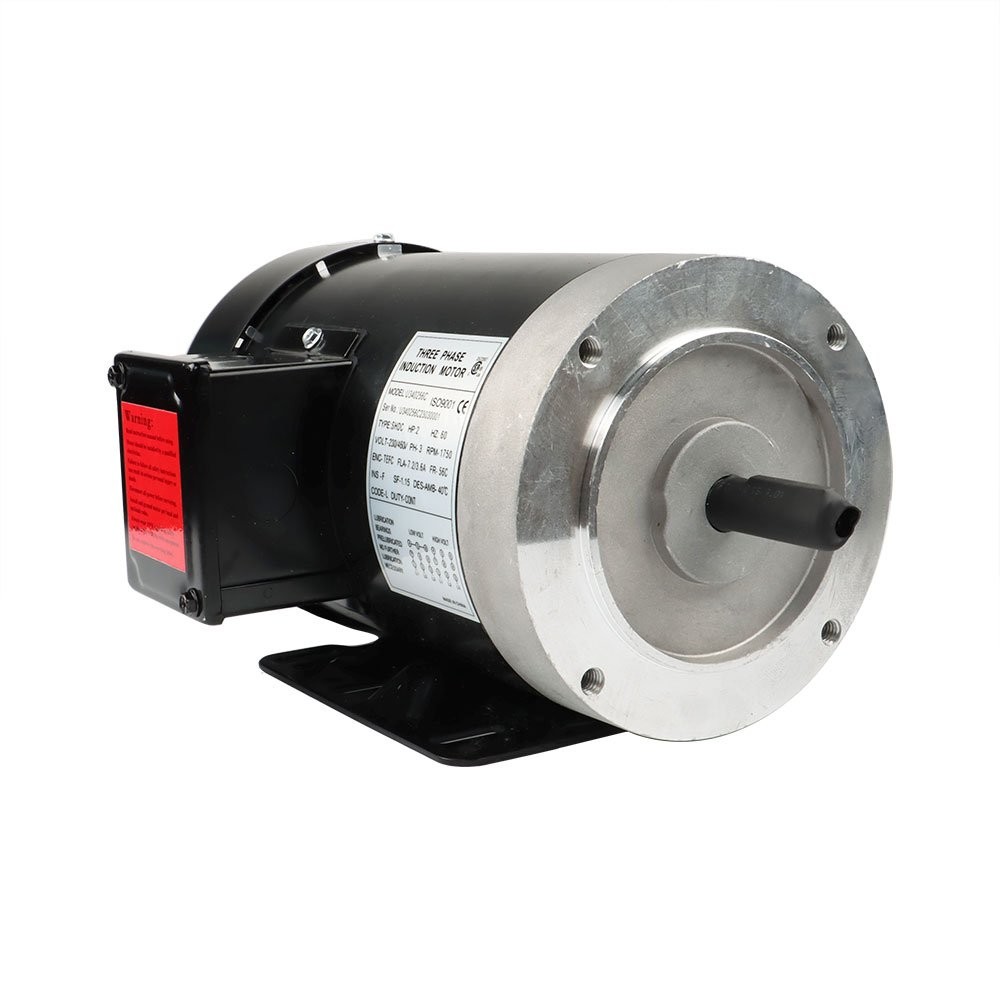

3 Phase 56C Frame TEFC 230 / 460 Volt 2 HP Motor
The 56C motor brings 2 HP in a compact frame that works with 230V or 460V three-phase service. The C-face design and removable base give you mounting flexibility, while the TEFC enclosure and fan cooling keep it suited for enclosed and semi-clean shop environments. Class F insulation and inverter-rated construction are useful if you plan to run it through a variable frequency drive. The obvious limitation is voltage: it won't operate on a 575V supply, so it's only an option for lower-voltage sites. For shops running standard 230/460V power, this motor gives you double the horsepower of the WEG at a more affordable price.
Final choice by use case: If your facility is set up for the WEG's rated voltage and needs a farm-duty motor, the WEG W22 is the one to buy. If you need more horsepower and want a compact motor with dual-voltage input, the 56C motor gives you more power for less money. Consider the mounting footprint and voltage before you order.
