Choosing an industrial motor comes down to matching the motor to the power supply and understanding how much drivetrain the machine really needs. One candidate is a matched motor-and-gearbox package, while the other is a direct air compressor replacement. They are in the same budget range but built for different jobs.
Quick verdict
If you want a speed reducer already paired with the motor, take the Baldor-Reliance combo. If you want a replacement motor for compressor duty at a lower price, take the air compressor motor.
Comparison table
| Feature | Baldor-Reliance VEM3558T + Dodge Quantis | 5 HP Single Phase Air Compressor Motor |
|---|---|---|
| Price | USD 700 | USD 455 |
| Phase | Three phase | Single phase |
| Voltage | 208-230/460 V | 208-230 V |
| Enclosure | TEFC | ODTF |
| Package | Motor plus right-angle reducer | Electric motor |
Where each product wins
The Baldor-Reliance side wins when reduction is part of the machine. The Dodge Quantis portion is a right-angle helical-bevel reducer with a 5.65:1 ratio and up to 1019 in-lbs of output torque, so you avoid sourcing a gearbox separately. The motor side is a Super-E NEMA C-Face unit with class F insulation and a 1725 base RPM. The trade-off is the open-box condition.
The compressor motor wins when the job is a simple replacement. It is built as a direct-replacement motor with an ODTF enclosure and steel housing, and it carries a two-year manufacturer warranty. The trade-off is that you are buying the motor alone; if the application needs gear reduction, that has to come from a separate component.
Product notes
Baldor-Reliance VEM3558T Industrial Electric Motor + Dodge Quantis Speed Reducer
The main reason to pick this package is the gearbox. The Dodge Quantis right-angle helical-bevel speed reducer provides a 5.65:1 ratio with a maximum output torque of 1019 in-lbs, and it arrives paired with a Baldor-Reliance Super-E NEMA C-Face motor. The motor itself is rated for 208-230/460 V and carries class F insulation with a 1725 base RPM. That combination is practical for continuous industrial duty where you need a compact right-angle drop. The limitation is the condition: it is listed as new, but open-box, so the packaging may show handling. It is also the higher-priced entry in this comparison, so it makes sense only if the reduction hardware earns its place.

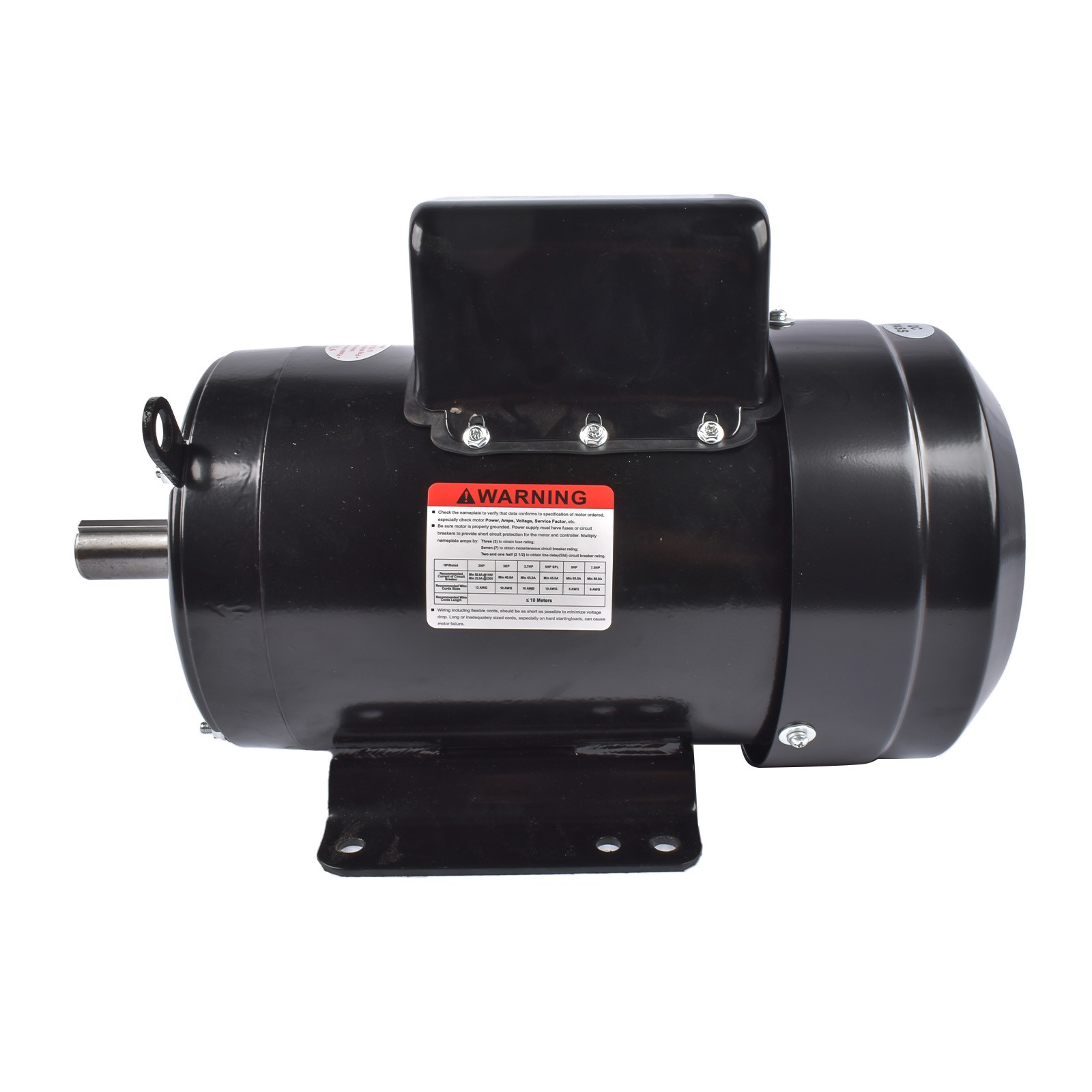

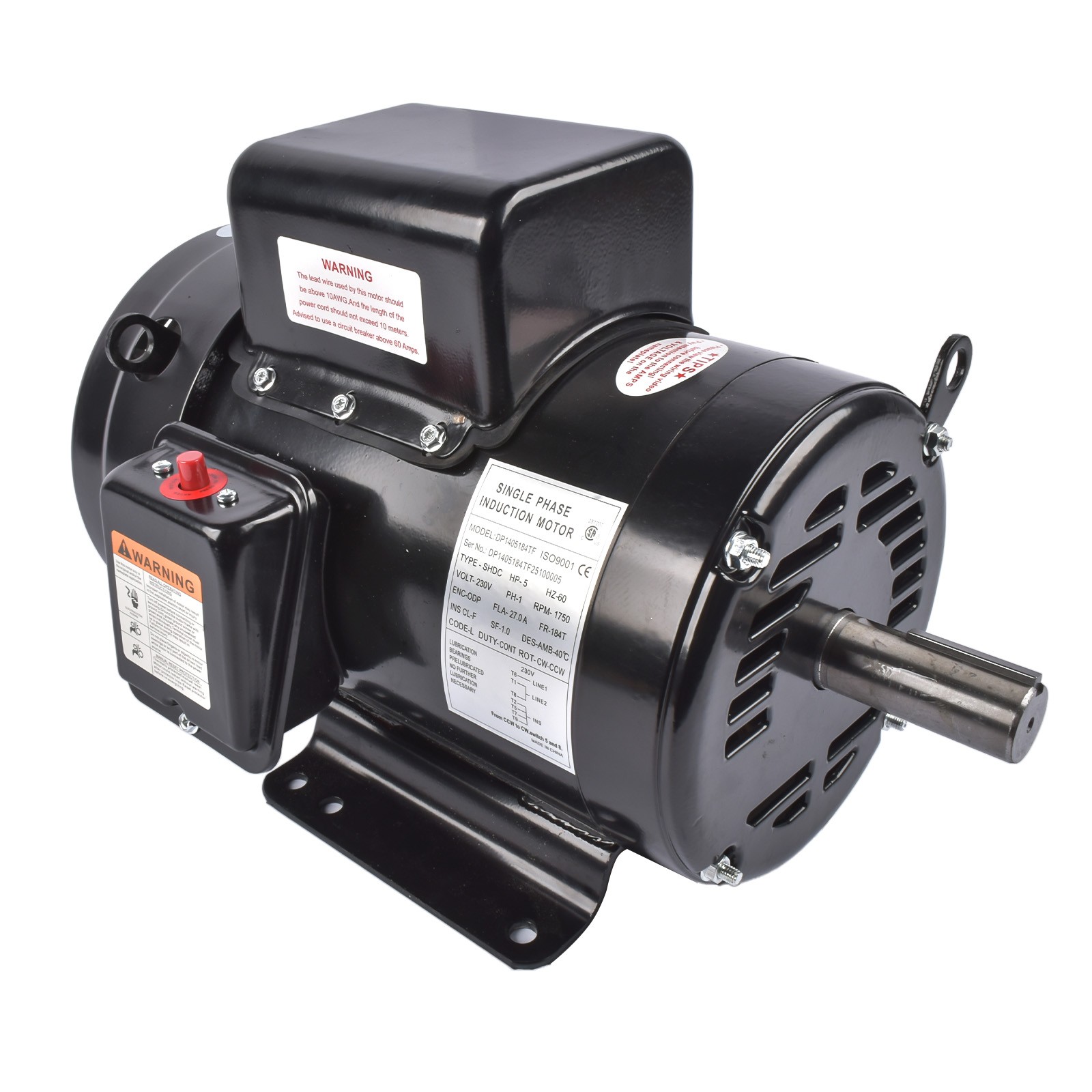

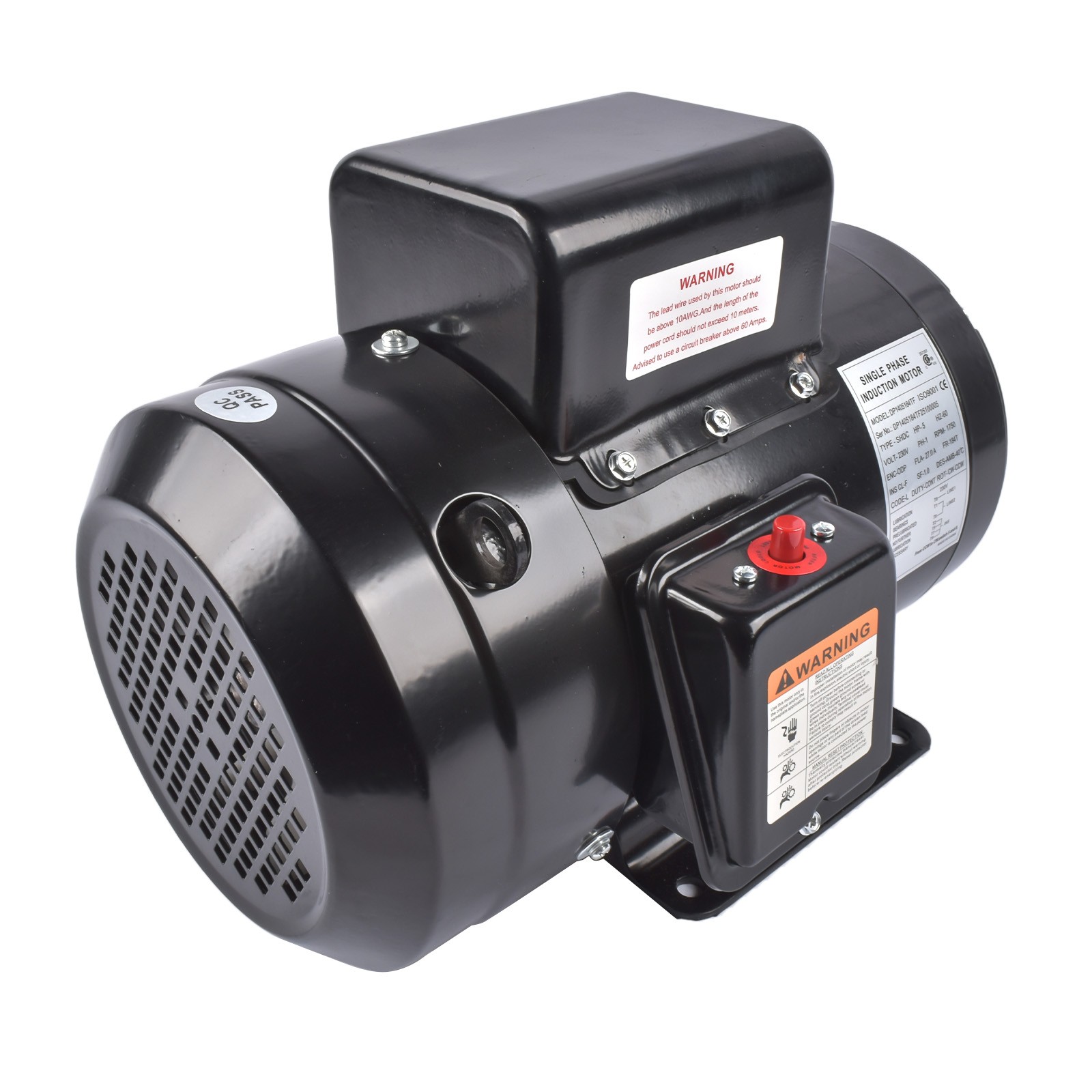

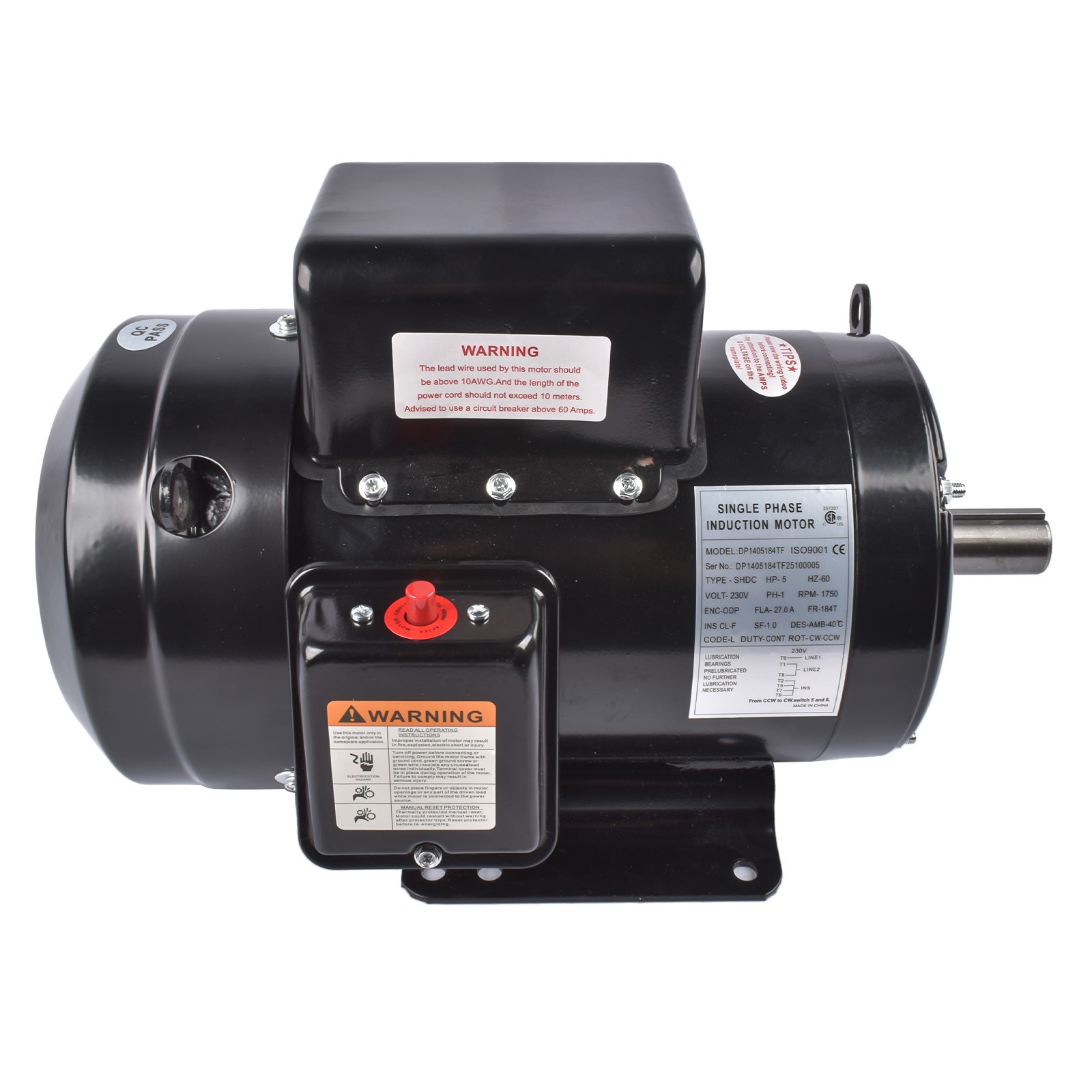

1 Piece 5 HP Single Phase Industrial Air Compressor Electric Motor 184T Frame
This motor makes the shopping decision simpler. It is labeled as a direct replacement for a 184T frame air compressor motor, and its steel construction fits that duty. The listing includes a two-year manufacturer warranty and arrives in new condition, which reduces some of the risk of buying replacement equipment. The voltage rating is 208-230V, and the amperage range is 28.5-27.0 A. The catch here is that the listing covers the motor itself, so any speed reduction you need must be handled by a separate gearbox or belt drive. For a single-phase 208-230V compressor circuit, this is the lower-priced route in this head-to-head.
Final choice by use case
For an industrial drive that needs a matched speed reducer and three-phase input, the $700 Baldor-Reliance VEM3558T with Dodge Quantis is the right package. For a straightforward air compressor motor replacement, the $455 184T motor is the one to buy.
